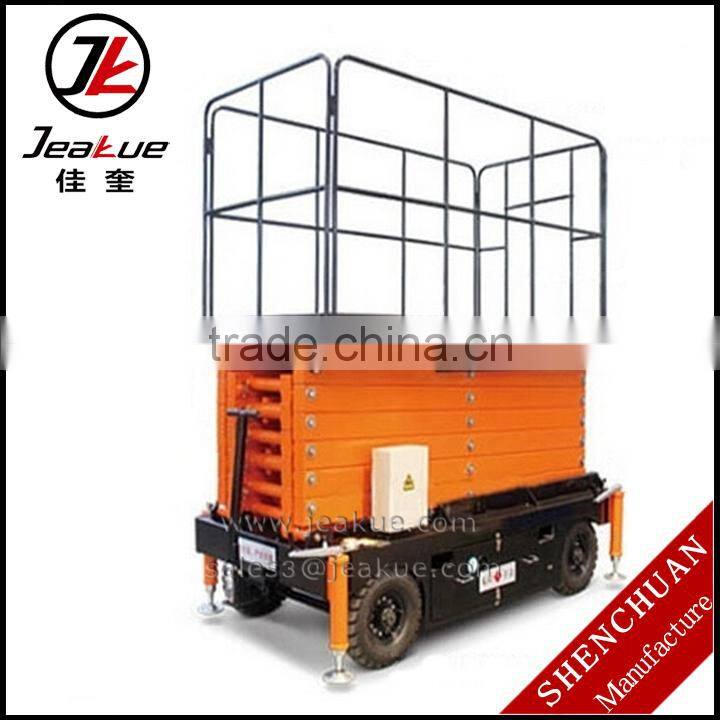

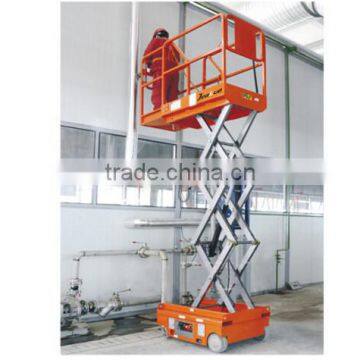

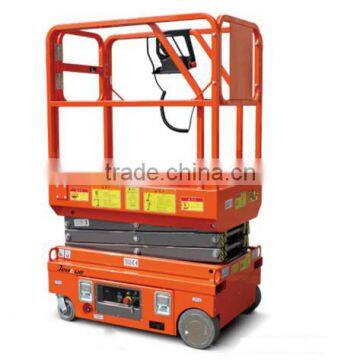

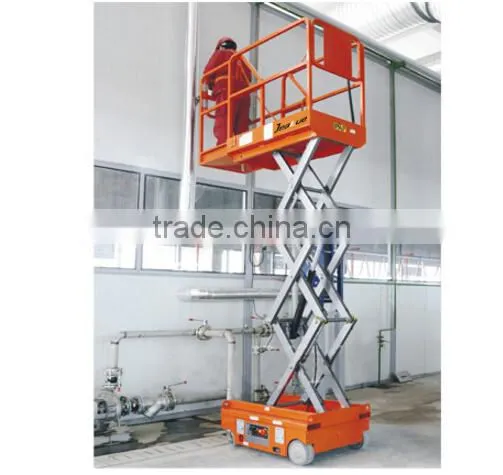

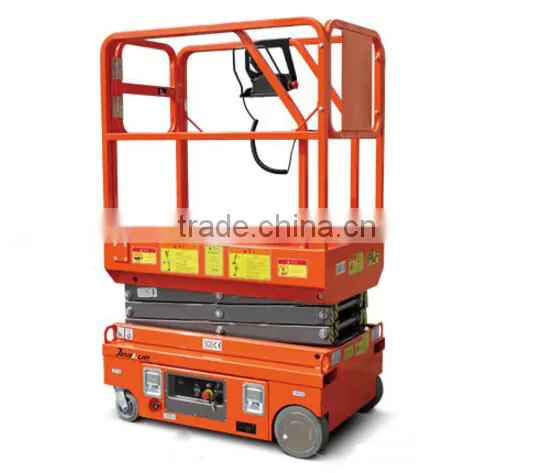

Self-Propelled Scissor Aerial Work Platform
Self-Propelled Scissor Aerial Work Platform
1. Electric motor controls the lifting. Double-way controller on the platform.
2. It controls the the forward and backward on the ground. It cannot control when platform lifts. It must be at the bottom before they drive
3. The machine surface is with shot blasting treatment, 2 bottom 2 surface spray paint

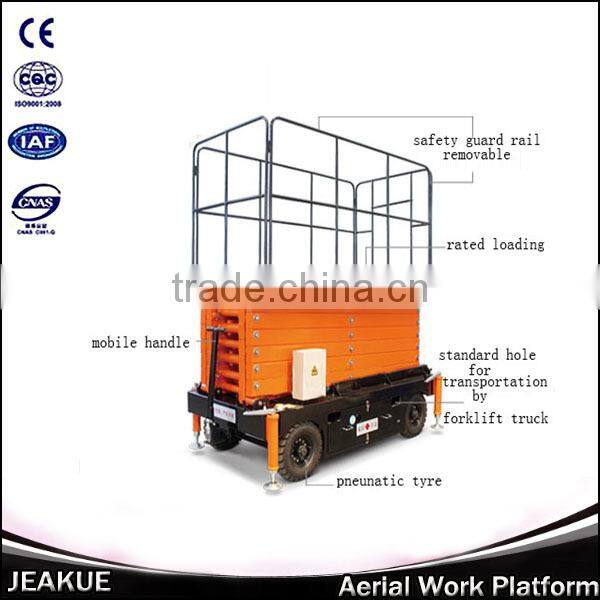

4. Work platform railing is thrusting removable type guardrail
5. Control voltage is DC24V, effectively ensuring the safety of operating person
6. Waterproof design of electrical control box
7. Working platforms are installed below the emergency stop button below it, ensuring the safety of operation and person
8. The system is equipped with emergency drop valve. This device can be ensuring lifting platform security when suddenly loses power
9. Applying, the base of the plastic spraying process, ensure the product is beautiful and make paint than ordinary spray paint, lacquer that bake is durable, not easy to wear and tear
| Model | JK8853 | |
| Loading Weight | kg | 300 |
| Max Height | mm | 9000 |
| Platform Size | mm | 2100×1135 |
| Equipment height (without guardrail) | mm | 1370 |
| Lifting time | s | 78 |
| Hydro cylinder | Φ80×2 | |
| Drive motor power | kw | 0.75 |
| Lift motor power | kw | 2.2 |
| drive speed | km/h | 5-6 |
| Power voltage | V | 24 (DC) |
| Guardrail Height | mm | 1200 |
| Weight | kg | 1400 |
| NO. | Component | Origin | Specification | Chinese Brand | English Brand |
| 1 | Mesa material | Shanghai | Q235 | Jiayi | |
| 2 | Shear fork material girder | Shanghai | Q345B | Jiayi | |
| 3 | cylinder | Suzhou | Brain Paddick | ||
| 4 | Sealing element | Japan | Valqua | NOK | |
| 5 | Electric appliance | France | Schneider | ||
| 6 | Motor | Italy | Mr.Pooh at sea | <, /SPAN> | |
| 7 | Tire | Wuxi | Air tire | Zhongdi | ZD |
| 8 | Shear fork | Shanghai | Q345B | Jiayi | |
| 9 | Battery jar | Fuzhou | maintance-free | Minhua | MINHUA |
| 10 | Charger | Suzhou | Dingfeng |
