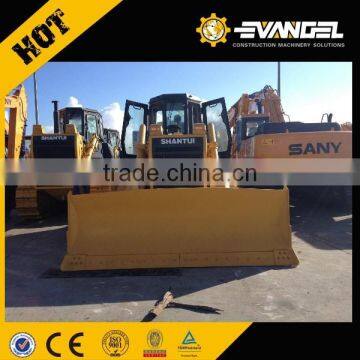

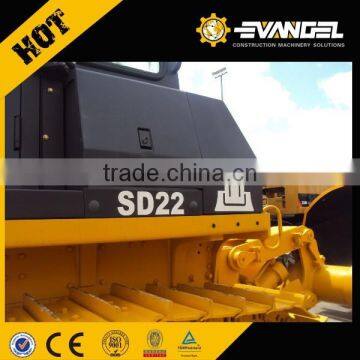

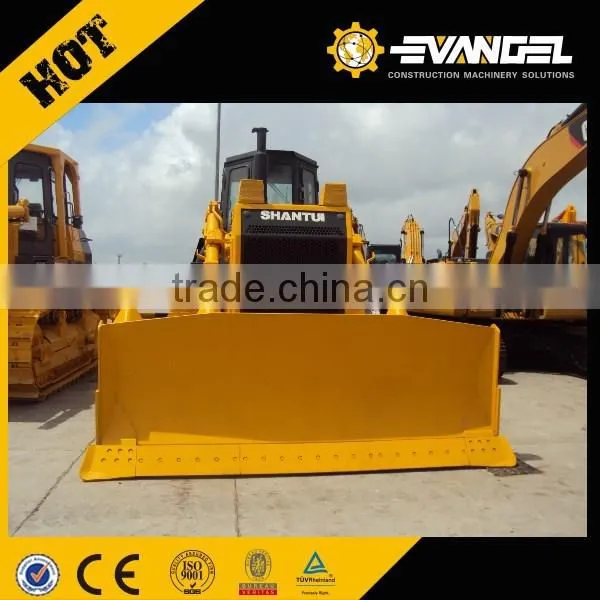

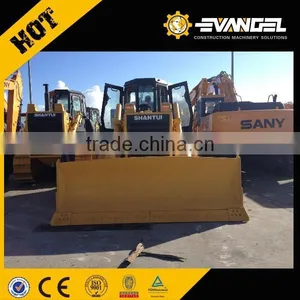

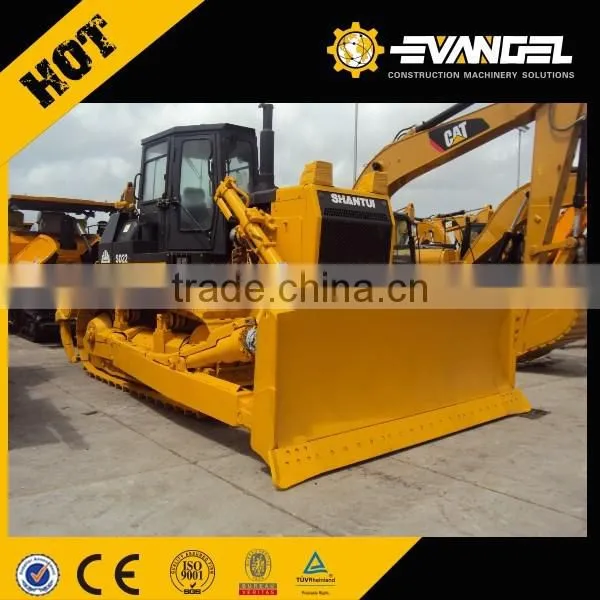

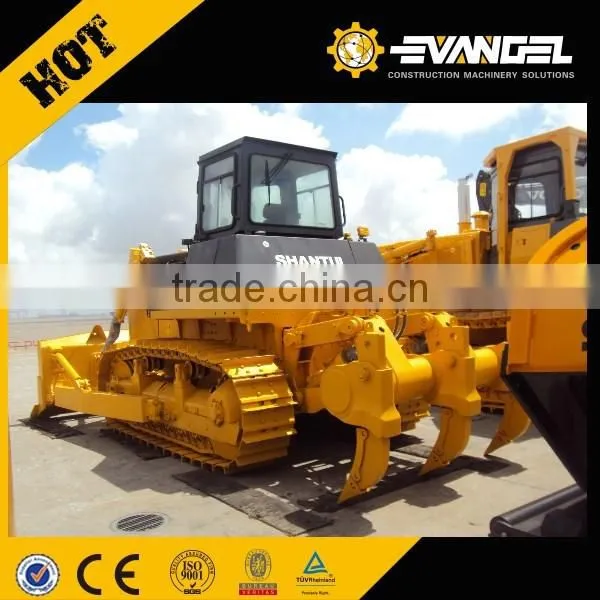

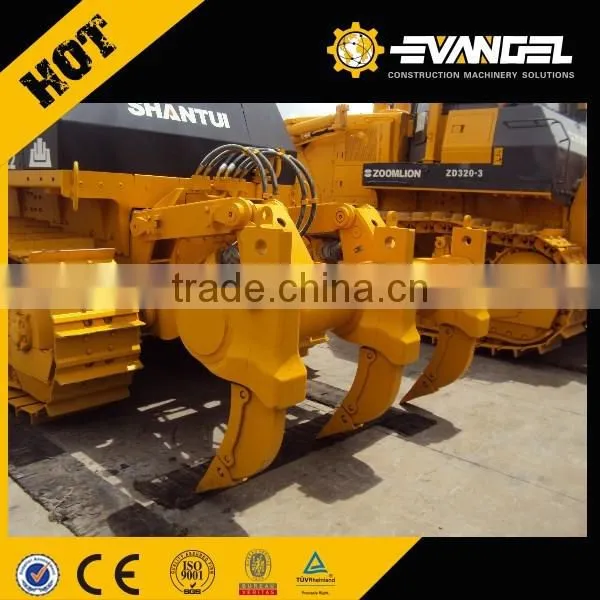

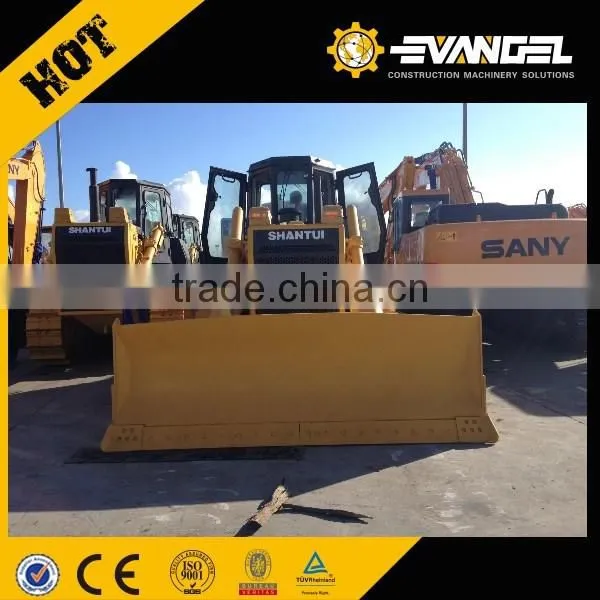

Best Price Shantui 80HP mini crawler dozer for sale
The turbocharged, air-to-air intercooled, electronically controlled disel engine emissions meet EPA Tier 3, EU
Stage III A standards; provides excellent power, economy (compared with similar horsepower hydrostatic
bulldozers provides 15% savings), and durability.
The electronically controlled, dual-circuit hydrostatic drive system automatically adjusts the power output
and the traveling speed to adapt to load changes; both sides of the track are independently driven, so as to
ensure full steering power output, and enabling reverse rotation for both tracks; possesses “multi-grade”
speed characteristics, providing optimum speed in a variety of working conditions.
The hand-operated electric control system, left joystick controls machine direction and speed, right joystick
operates working device; system enables accurate, simple, and comfortable operation of the machine.
The heavy, durable, and strong chassis provides for reliable operations in any environment.
The integrated and intelligent thermal management system ensures optimal temperature control, noise
management, and energy conservation.
The intelligent service system features automatic fault detection, diagnosis, and remote technical support.
The cab features roll/drop-proof design, shock absorbing structure, noise reduction technology, air
conditioning, unobstructed vision, and a spacious environment.
The modular wheel reduction system boasts reliability, long life, and easy maintenance.
The high-capacity, strong, versatile blade is well-suited for operations such as backfilling, excavation, shaping,
and other heavy duty jobs.
| ITEM | UNIT | SD08YE | SD08YS |
|---|---|---|---|
| L*W*H | mm | Traction frame 4252×2680×2775 |
Traction frame 4252×3150×2775 Winch 4882×3150×2775 |
| Operating Weight | kg | 8020 | 8440 |
| Track Gauge | mm | 1600 | 1750 |
| Ground Length | mm | 2270 | |
| Width of Trackshoe | mm | 460 | 610 |
| Blade Width | mm | 2680 | 3150 |
| Blade Height | mm | 950 | 900 |
| Dozing Capacity | m³ | 1.93 | 2.04 |
| Maximum Lifting Height of Blade |
mm | 750 | |
| Maximum Digging Depth of Blade |
mm | 515 | |
| Maximum Tilting Height of Blade |
mm | 350 | 411 |
| Cutting Angle | ° | 52-58 | |
| Blade Weight | kg | 1211.7 | |
| Speed(forward/reverse) | km/h | 0-9 | |
| Ground Pressure | kPa | 38.3 | 30.5 |
| Minimum Ground Clearance | mm | 320 | |
| Gradeability | ° | 30 | |
| Model | QSB3.3 | ||
| Type | Turbo charged, Water cooled 4-stroke/cycle diesel engine; direct injection; with crank case shield or equivalent |
||
| Rated Speed | rpm | 2200 | |
| Rated Power | kW | 59 | |
| Cylinder Qty-Cylinder Bore X Stroke |
mm | 4-95×115 | |
| Swept Volume | L | 3.3 | |
| Max.Torque | N.m/rpm | 415/1600 | |
| Fuel Capacity | L | 192 | |
| Coolant Capacity | L | 18 | |
| Net Engine Weight | kg | 275 | |
| Specific Fuel Consumption | g/kW-h | ≤227 | |
| Engine Oil Capacity | L | 7 | |
| Type | Rigid Suspension | ||
| Number of Carrier Roller | 2/side | ||
| Width of Trackshoe | mm | 460 | 610 |
| Pitch | mm | 154 | |
| Variable Pump | 2 | ||
| Number of Travel Motor and Reducer |
2 | ||
| System Pressure | MPa | 40 | |
| Brake Pressure | MPa | 2.5 | |
