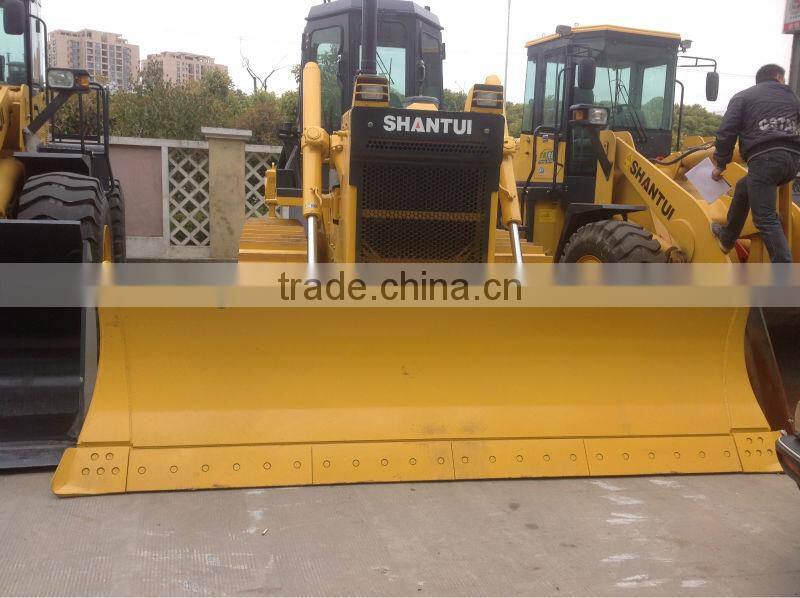

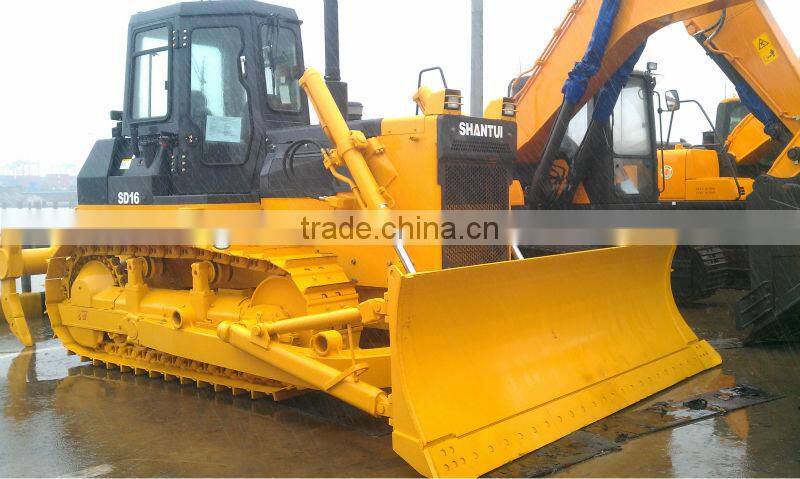

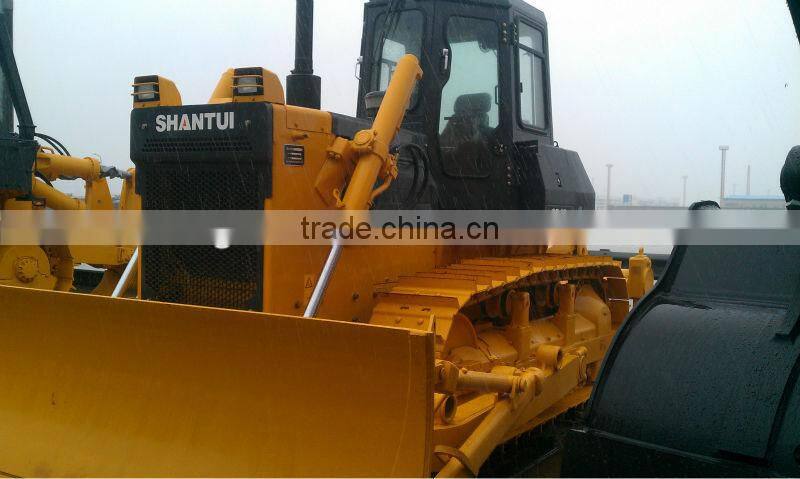

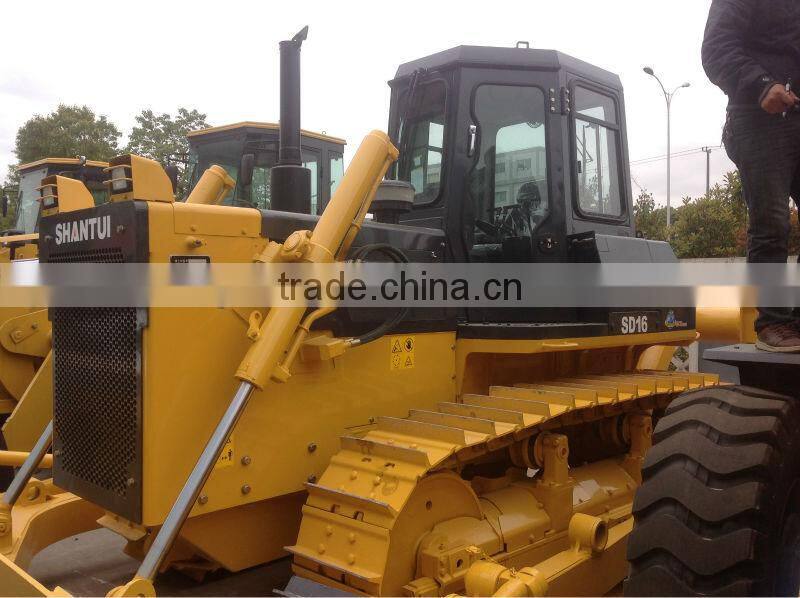

High Quality New Shantui SD16 160HP track chain for excavator and bulldozer
Categories: | Bulldozer |
Model | SD16 |
name | SD16 bulldozer |
clicks: | 418 |
Engine | Shangchai C6121ZG70B/Steyr WD10G175E15 |
Weight | 17t |
Specification Blade Type | Straight-tilt | Angle | U-type |
Min.ground clearance(mm) | 400 | 400 | 400 |
Ground pressure(MPa) | 0.067 | 0.067 | 0.067 |
Min.turning radius(m) | 4.7 | 4.5 | 4.9 |
Gradeability(°) | 30 | 30 | 30 |
Track gauge(mm) | 1880 | 1880 | 1880 |
Dozing capacity(m3) | 4.5 | 4.4 | 5.0 |
Efficiency(Theoretical value in 40m)(m3 /h) | 225 | 225 | 250 |
Blade width(mm) | 3388 | 3970 | 3556 |
Blade height(mm) | 1149 | 1090 | 1120 |
Max.drop below ground (mm) | 540 | 540 | 530 |
Max.tilt adjustment(mm) | 400 | - | 400 |
ENGINE
Model……………………………………………....ShangchaiC6121ZG70B / STEYR WD10G175E15
Water cooled,in-line,4-stroke,injection direct
Rated horsepower………………………………..120kW
Rated revolution……………………………….......1850r/min
Cylinder number-bore×stroke……………….......6-126×130mm
Piston displacement……………………………...9.726L
Min.fuel consumption…………………………......214g/KW.h
Max. torque………………………………………....764N.m
TRAVEL SPEED
| Gear | 1st | 2nd | 3rd |
Foward(km/h) | 0-3.29 | 0-5.28 | 0-9.63 |
Reverse(km/h) | 0-4.28 | 0-7.59 | 0-12.53 |
UNDERCARRIAGE SYSTEM
Type……………………………………………………..Splayed beam suspended structure of equalizer
Carrier rollers(each side)…………………………….2
Track rollers(each side)………………………………6
Track type………………………………………….........Assembled,single-grouser
Width of track shoes…………………………………..510mm
Pitch…………………………………………………….203.2mm
OVERALL DIMENSION
Straight—tilt 5410×3388×3032mm
Send Inquiry to This Supplier
