New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE

New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE thumbnail-1
New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE thumbnail-2
New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE thumbnail-3
New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE photo-1
New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE photo-2
New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE photo-3
US$ 36,000 - 37,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Tire Roller
Static Linear Pressure:
38
Contact Supplier Request Quote Chat Now
Evangel Industrial (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tire Roller
Static Linear Pressure 38
Travel Speed 24km/h
Grade Ability 20
Place of Origin Jiangsu, China
Brand Name EVANGEL
Model Number XS163J
Power(W) 59KW
Dimension(L*W*H) 3808x1581x2051
Weight 9.4t
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

New 2017 ROADER ROLLER, ROAD COMPACTOR, SINGLE DRUM ROLLER FOR SALE

 Factory price road roller



The XS163J/XS183J vibratory roller is a heavy self-propelled vibratory roller which can compact all kinds of soil layers and rock fill. The machine is suitable for modern highway, airport, embankment filling, harbour, dam, railway and mining operations. It offers different compaction depths and high efficiency.



Item
Features
Parameters
Unit

Weights
Operating Weight
16000
kg
Load Applied On Front Drum
7700
kg





Driving
Characteristics
Speed Range
F/R
km/h
Gear I
2.85/2.88

Gear II
5.08/5.02

Gear III
11.17/-

Theoretical Gradeability
30
%
Min. Outer Turning Radius
6500
mm
Steering Angle
±33
0
Swing Angle
±11
0


Compaction
Characteristics
Static Linear Load
362
N/cm
Vibration Frequency
28
Hz


Engine
Engine Model
Shanghai Diesel Engine SC4H140.192

Type
1

Max. power
103
kW

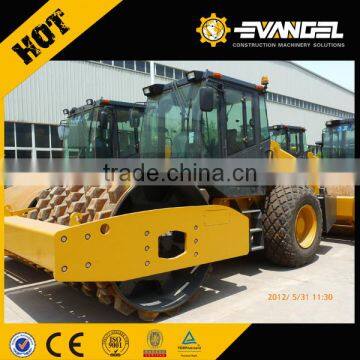

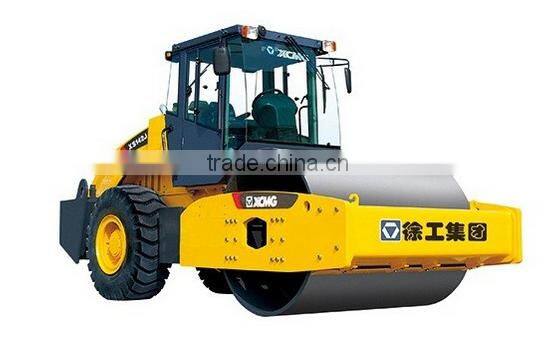

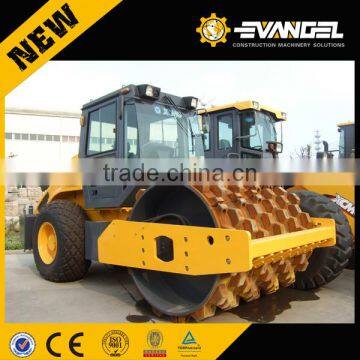

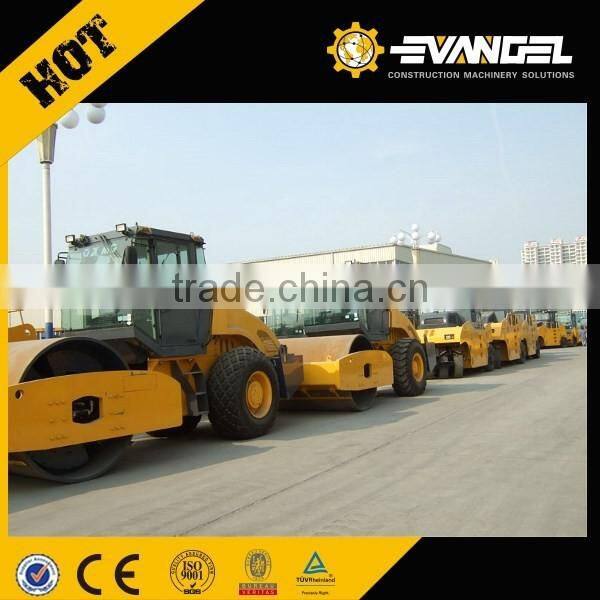

Photo for reference
