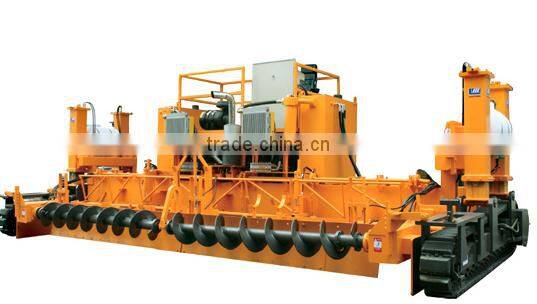

Huatong concrete slip form paver 4-8 paving width 1220MAXI-PAV
- 500 Set / Sets per Month
- Shanghai
- T/T Credit Card
- ultrasonic laser paver 11 meters concrete pavement with tire barrier laser paver manufacturers
- Baoying irrigation canal slipform machine/Rectangular ditch forming machine/Trapezoidal canal slipform machine
- Baoying irrigation canal slipform machine/U-shaped canal forming machine/Rectangular groove synovial machine
- Baoying irrigation canal slipform machine/Drain forming machine/Side ditch once forming machine
- Baoying irrigation canal slipform machine/large river canal forming machine/Canal slipform machine
- Highway roadside stone forming machine Roadside stone synovial all-in-one machine
Product Details
Condition: | New | Production Capacity: | 240T/H | Power(W): | 165/137KW |
Max. Paving Thickness: | 150mm | Paving Width: | 4-8M | Place of Origin: | Jiangsu, China |
Brand Name: | HUATONG | Model Number: | 1220MAXI-PAV | Dimension(L*W*H): | 5690*2070*3590mm |
Weight: | 10.5t | Certification: | ISO,CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Huatong concrete slip form paver 4-8 paving width 1220MAXI-PAV
It adopts full hydraulic drive and automatic electro-hydraulic control, featuring advanced technology and reliable performance. The minimum width of the machine is 2 meters, which is the smallest among homemade products. It is flexible and has wide applications. The rear 4WD technology effectively improves the driving force of the machine. The ergonomic design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio.
RP451L paver can be widely used in the construction of highways, streets, country roads, expressways and the road maintenance work. It can effectively improve the flatness and compactness of the road surface.
Reliable drive system
It is the first set of full hydraulic drive compact type tyre asphalt concrete paver made in China. The travel, feed and material distribution system all adopt hydraulic drive, featuring good bearing capacity, high drive efficiency, and convenient control.
The plunger pump and motor all adopt products of America brand, and all the elements all adopt products of famous brands to ensure the reliability, such as control valve, steel pipe, joint, filter, etc.
Efficient feed/ material distribution system
The feed system and distribution system are independent and they can be controlled separately.
The single chain adopts unique double scraper blade, which effectively improves the conveying capability of the machine.
There is reverse blade in the middle of the material distribution bin, which can effectively improve the material supplying from the lower part of the bin and prevent dissociation.
Efficient control system
It adopts mechanical-electric-hydraulic integrated control technology, featuring high level of automation, control accuracy and reliability.
The left/right feed/material distribution device adopts ultrasonic level gauge which can achieve automatic even feeding of materials.
The standard configuration includes electronic automatic leveling device which ensures higher evenness of the paving surface.
Strong power system
Anhui Shangchai 4JR3G1 diesel engine, 55KW, large power reserve.
The combined radiator effectively reduces the working temperature of the engine and hydraulic system and ensures long-time reliable work.
Advanced screed technology
Hydraulic stepless extension/withdrawal, applicable to the work condition of widened road.
The unique frame design, and good overall rigidness of the screed.
The stepless adjustable vibration frequency can meet the requirements for various work conditions.
The quick gas heating design, nozzle with safety switch, and the heating is quick and safe.
Performance advantages
Compact structure, flexible control.
The minimum width of the machine body is 2m, which can be used freely at narrow roads.
The hopper is folded from single side, and the pushing wheel can be folded with the hopper synchronically, which improves the pass ability of the machine.
The control panel features centralized control, simple and convenient operation; combined instrument, and the work condition is very clear.
Excellent performance, wide application
Quick site transfer and paving speed, applicable to the construction of municipal highway and country road as well as the maintenance operation of expressway and various kinds of highways.
With small minimum paving width, it is applicable to the construction work of streets for residential areas and scenic spots.
Equipped with hydraulic telescopic screed, it is applicable to the paving of widened roads.
It adopts rear 4WD, which has large ground adhesive force, applicable to the paving of various kinds of road surface.
The wide hopper is applicable to various kinds of dump vehicle, the storage capacity of the hopper is up to 12t, which ensures successive paving operation.
Parameter of Huatong concrete slip form paver 4-8 paving width 1220MAXI-PAV
Name | Unit | Parameter | Name | Unit | Parameter |
---|---|---|---|---|---|
Paving width | mm | 4250-8500 | Vibrating rod | High frequency hydraulic | |
Paving thickness | mm | 0~350 | Driving manner | Fully hydraulic drive | |
Paving speed | m/min | 0~5 | Dimension | mm | 3660×9920×2650 |
Engine model | TAD721VE(Volvo) | Overall weight | kg | 25000 | |
Engine power | kW | 195 |
