SANY SRSC45H4 45 Ton Ergonomic Designed Cab Reach Stacker for Containers

Name: SANY SRSC45H4 45 Ton Ergonomic Designed Cab Reach Stacker for Containers
Brand: SANY
SKU: 140722686
Availability: InStock

Evangel Industrial (Shanghai) Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

SANY

Model Number:

SRSC45H4

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SANY

Model Number SRSC45H4

Certification CE IOS

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

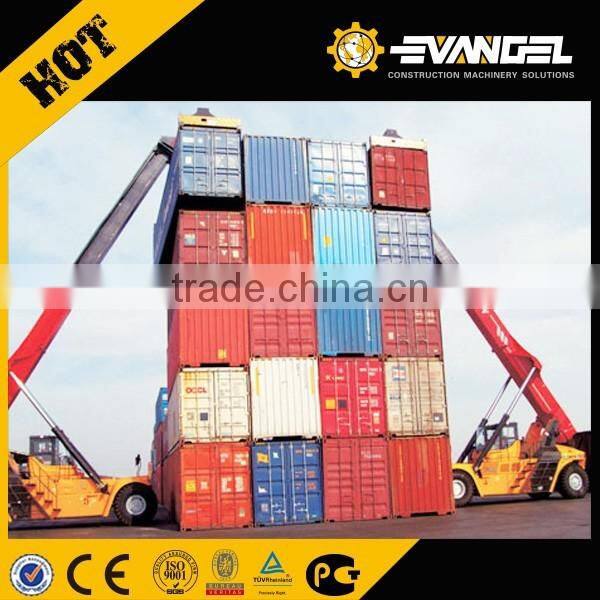

SANY SRSC45H4 45 ton ergonomic designed cab reach stacker for containers

Table 2-1 Technical Parameters of Container reach stacker

Series		RSC45-5	Crane spreader	Type			ELME817 or SDJ450
Overall machine	Overall length	11230mm		Rotary angle			+105°/-195 °
	Overall width	4130mm		Side shift distance			+800/-800 mm
	Overall height	4780mm		Max. bearing			45000 Kg
	Overall quality	71000kg		Applicable range			20/40international standard container
Bearing capacity	The first row	Load center:1965mm 1-4 layer:45000kg 5 layer :43000 kg	Hoisting object					20/40 international standard container
	The second row	Load center :3815mm 1-4 layer :31000 kg 5 layer :30000 kg	Out rigger		Max. lifting height			15100mm
					Tilting angle			0-60°
	The third row	Load center :6315mm 1-3 layer :15000 kg 4 layer :14000 kg			Stroke			7070mm
			Max. lifting speed (no-load/load)					420/250 mm/s
Engine	Type	TWD1240VE	Max. traveling speed (no-load/load)					25/21 km/h
	Model	Series six cylinder , 4-stroke, central water cooled, turbocharged, electrical spray	Max. falling speed (no-load/load)					360/360 mm/s
			Gradeability (no-load/load)					39/32 %
	Controlling mode	EDC III full electric control system of CAN general line	Max. traction force					360 kN
			Min. turning radius					8000 mm
	Rated power	256 kw/2100 r/min	Steering mode					Hydraulic servo-assist steering
	Rated torque	1751 Nm/1200 r/min	Wheel base					6000mm
	Tail gas emission standard	Euro II	Ground clearance of machine					350mm
	Average oil consumption ratio	197g/kwh	Traveling speed	front/rear (F/R)		The first gear		3.6 km/h
Transmission	Type	CLARK 15.5HR36432				The second gear		8.6 km/h
	Gear mode	automatic/manual				The third gear		14.8 km/h
	Gear	4 gears for forward and backward				The fourth gear		25 km/h
