Lutong Farm Tractor LYH404 For Sale
Product Features ---
Luyanghong 40 series wheel-style tractors, which are more advanced than the same types of machines in China, which are developed by Luoyang Lutong Agricultural Equipment Limited.
That the LYH404 road sun makes 40 series wheeled tractors red- is that Luoyang Lutong agriculture equipment Ltd. acts on self's own grinding hair's having the horizontal in the homeland same kind model wheeled tractor in the lead. The main characteristic has: Adopt new Zhejiang firewood diesel , reliability well , has bigger moment of torsion reserve system; 10 inches of pair of effects clutch; The speed change box archives place is 4 X (2 + 1); Detached driving force of postposition exports a device , drive balances , bears the weight of a force big; The entire hydraulic pressure front wheel adopt the independent oil road gets lost , gets lost nimble , reliable , saves labour; The force moment adopt disk brake , braking is big , the braking is reliable; Adopt.
whole tractor is beautiful,taste,modern, fashion; final driving is planet-gear style,smaller volume,bigger decelerating ratio
1. Adopt Zhejiang Xinchai diesel engines, better reliability,more back coefficient for torsion
2. The whole tractro is beautiful,taste,modern, fashion
3. 10 inch clutch with double actions
4. the final driving is planet-gear style,smaller volume,bigger decelerating ratio.
5. Installed adjustable chair with elasticity and shock absorption,confortable driving

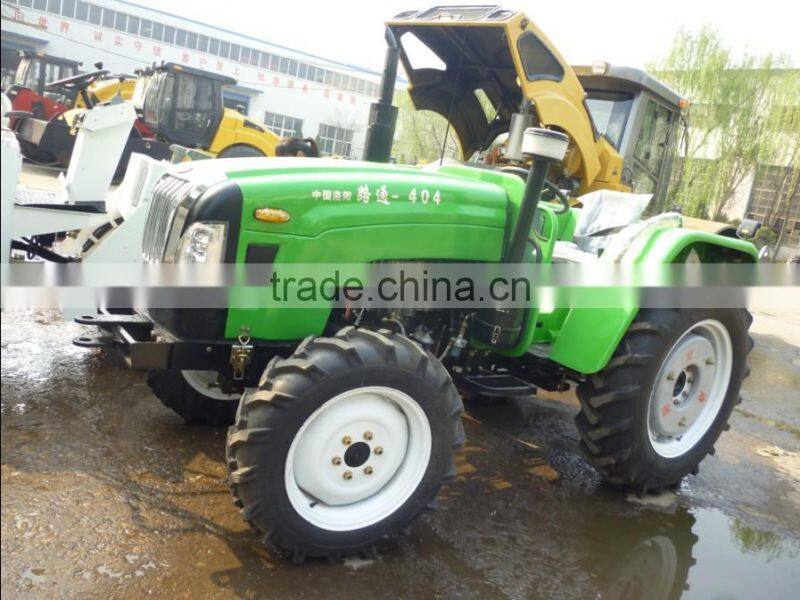

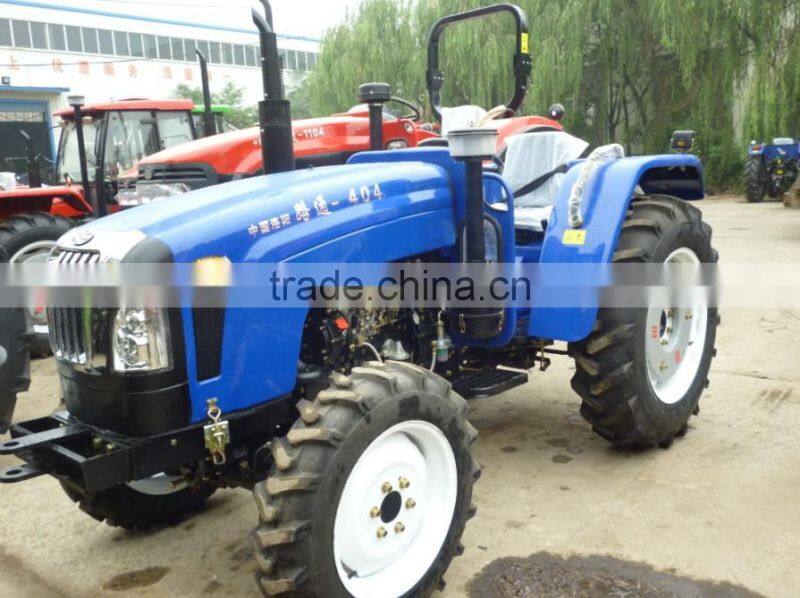

Product Pictures ---
Product Parameter ---
Tractor model | LYH404 | |
Pattern | 4×4 (four-wheel drive) | |
Outlook size mm | Long (in front of belt counterweight) | 3513 |
Width | 1750 | |
High (to air vent) | 2130 | |
Spread of axies (mm) | 1924 | |
Front wheel tread (mm) | 1250 | |
Rear wheel tread (mm) | 1200-1500 (commonly used 1300) | |
Smallest gully (mm) | 325 | |
Agronomy gully (mm) | 375 | |
Changes radius (mm) | Unilateral brake | 3.4 |
Unilateral does not apply the brake | 4.1 | |
Complete machine quality (kg) | Structure quality | 1890 |
Smallest use quality | 2080 | |
First disposes | 144 | |
Latter disposes | 360 | |
Fixed force of traction (KN) | 12 | |
Engine model | 490BT | |
Demarcation power (KW) | 29.4 | |
Coupling | 10 inch dry list function or double-acting | |
Gear box | 4× (2 1) keeps off the composition type meshing wrap to shift gea | |
Speed range | 2.4-31.9 | |
Central rotation | Screw round bevel gear pair | |
Differential device | Two planetary gears, closed type | |
Differential lock | Plug type | |
Final transmission | Planet gear type | |
First driving axle | The entire seal bevel gear type (four-wheel drive type uses) | |
Transfer | The straight tooth cylindrical gears (four-wheel drive type uses) | |
Front wheel tire specification | 6.0-16 8.3-20 | |
Trailing wheel tire specification | 12.4-28 | |
Diverter pattern | Mechanical or the entire hydraulic pressure changes | |
Brake labor | Biplate oil bath plate brake (mechanical type) | |
Hoist pattern | The half minute sets at the type | |
Ploughs the deep control mode | Strength, position control and fluctuation control | |
Suspension unit pattern | Postpositioned three point suspension | |
Dynamic output speed of spindle (r/min) | 540/760 | |
Our Delivery Photos ---
