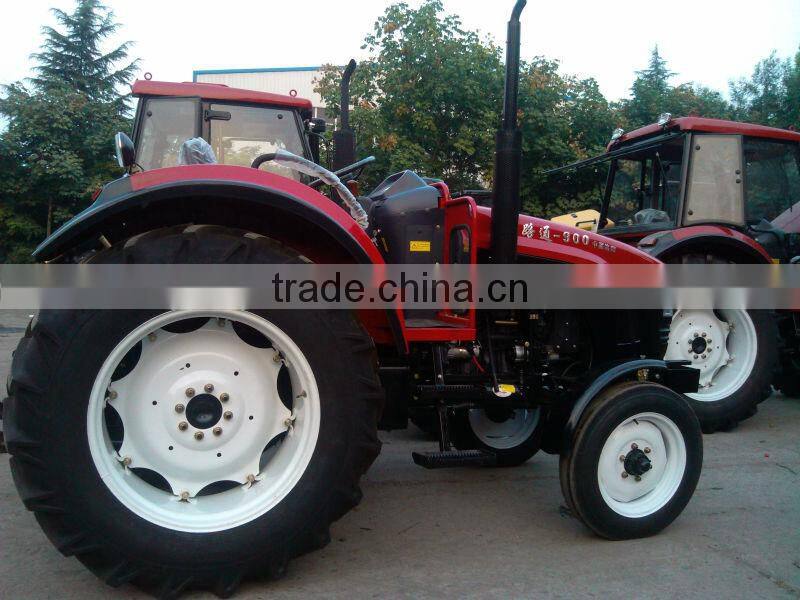

Low Price LuTong High Quality 2WD 90HP Farm Tractor LYH900 For Sale

Tractor model

LYH820/LYH860/LYH900

Pattern

4×4(Two turn actuation)

Outlook sizemm

Long(Including rear suspension)

4396(Including pretage)

Width

2038

High (to air vent)

2810

Spread of axies(mm)

2195

Front wheel tread
(mm)

1610

Rear wheel tread(mm)

1620-2020(Exwork1620)

Smallest gully(mm)

379(Front under driving axle along)

Changes radius (mm) unilaterally not to apply the brake

5.6

Structure quality

Belt cab vehicle typ

3750

Does not have the cab vehicle type

3500

Quality assignment

Front wheel belt cab vehicle type

1640

Does not have the cab vehicle type

1600

Trailing wheel belt cab vehicle type

2350

Does not have the cab vehicle type

2140

Smallest use quality (kg)

Belt cab vehicle type

3990

Does not have the cab vehicle type

3740

Counterweight

First counterweight

Biggest310

Latter counterweight

Biggest480

Fixed force of traction (KN)

19/19.9/20.8

Engine model

4108T82/4108T86/4110T90

Demarcation power (KW)

60.3/63.2/66.2

Files number

16F 8R (elects to install crawling files) or 8F 4R

Speed range

0.46-36.9

Power transmission coupling

Monolithic, the dry type, the butterfly-shaped spring contract, the independent operation, the double-acting type coupling

Gear box

The host vice-speed change shifts gears for the straight meshing wrap

Rear axle of car central rotation

Spiral bevel gear

Differential device

Closed type, 4 planet bevel gears

Differential lock

Meshing model

Latter final transmission

The single stage planet gear type, sets outside the rear both sides

In front of first driving axle central transmission

Spiral bevel gear

First differential device

Closed type, 2 planet bevel gears

First final transmission

A single stage planet gear type

Transfer case

Straight tooth cylindrical gears belt transmission shifting mechanism

Front wheel tire specification

11.2-24

Trailing wheel tire specification

16.9-34/13.6-38(Paddy wheel)

Changes the form

The independent oil duct, the entire hydraulic pressure front wheel changes

Travel brake

The static hydraulic pressure, the disc type, under the human control sets at the footboard

Parking brake

The handle operation, the multi-rubbing surface machinery contracts the oil bath type

Ploughs the deep control mode

The position control, the fluctuation control (elects to install strength position integrated control)

After system biggest lifting capacity (KN) (point of suspension 610m place)

Being bigger than16

Suspension unit

After three is hanging

Dynamic output speed of spindle (r/min)

Postpositioned free standing 760/1000

Draw gear form

Suspends the type draw link adjustable, the draw link position
