Low-price YTO 2.5ton CPC25 forklift spare parts
As authorized dealer, we offer full line of genuine YTO machinery and parts.
Product feature: YTO 2.5 ton mechanical diesel forklift
Load capacity :2.5t
Max. lifting height : 3000mm
Min. lifting height:140MM
Fork Length: 1070MM
CE,ISO9001, ISO14001,OHSAS1800
1.Digital intelligent drive-monitoring system can facilitate obtaining an operating data of forklifts so as to achieve the whole-process control.
2.Full hydraulic steering system reduces the operator’s fatigue greatly; it uses a horizontal oil cylinder on the compact steering axle, and garantees a steering reliability.
3.The classically YTO ASF space frame structure applies an ergonomic & aesthetic design with an elegant outlook, a compact structure, and a comfortability in operation.
4.The optimized rail section design of the mast has the driver enjoyed a wide-view.
Technical parameters: YTO 2.5 ton mechanical diesel forklift
Basic parameter | Model | Unit | CPC25 | ||
Power type |
| Diesel | |||
Rated capacity | kg | 2500 | |||
Load center | mm | 500 | |||
Lift height | mm | 3000 | |||
Mast tilt angle (forward/backward) | Deg | 6/12 | |||
Wheel-base | mm | 1600 | |||
Tread(front/rear) | mm | 960/970 | |||
Performance parameter | Travel brake |
| Hydraulic-Foot pedal | ||
Parking brake |
| Mechanical-Hand level | |||
Lift speed(with/without load) | mm/s | 550/600 | |||
Lower speed (with/without load) | mm/s | with load<600, without load>300 | |||
Travel speed (with/without load) | km/h | 18/19 | |||
Max. grade-ability (with load) | % | 20 | |||
Power, transmission and others | Engine | Model |
| C490BPG | |
Manufacturer |
| Xinchang | |||
Rated power | kw | 40/2650 | |||
Max. rotation | Nm/rpm | 162/1800 | |||
Displacement | L | 2.54 | |||
Battery | Voltage | V | 12 | ||
Capacity | Ah | 100 | |||
Gearbox | Transmission type |
| Mechanical | ||
Gears speed (front/rear) |
| Ⅱ/Ⅱ | |||
Tire | type |
| Pneumatic tire | ||
Model | Front |
| 7.00-12-12PR | ||
Rear |
| 6.00-9-10PR | |||
Others | Self weight | kg | 3540 | ||
Free lift height | mm | 160 | |||
Fork | TxWxL | mm | 40x125x1070 | ||
Overall dimensions | Overall length(without forks) | mm | 2480 | ||
Overall width | mm | 1150 | |||
Overall height | Extended height(mast) | mm | 4030 | ||
Lower height (mast) | mm | 2000 | |||
Overhead guard | mm | 2120 | |||
Min. turning radius | mm | 2240 | |||
Min. under ground clearance | Under mast | mm | 105 | ||
Center of wheel-base | mm | 150 | |||
Contact Person:
Sales Manager
Skype: wang.phyllis01
Mobile: +86-157-371-37170

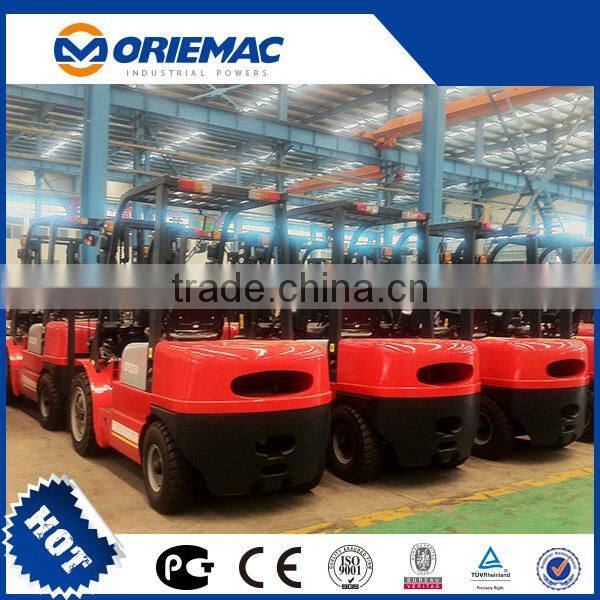

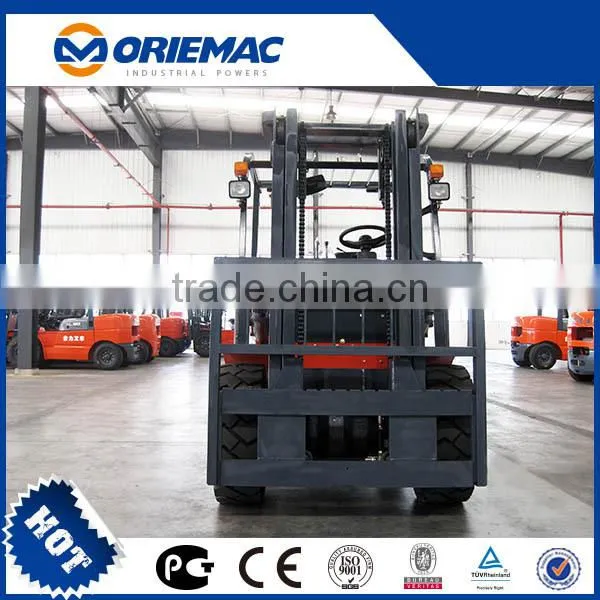

Detailed photos: YTO 2.5 ton mechanical diesel forklift
