Product Details
Condition: | New | Production Capacity: | 400t/h | Power(W): | 118kw |
Max. Paving Thickness: | 380mm | Paving Width: | 6m | Place of Origin: | Jiangsu, China |
Model Number: | RP602 | Dimension(L*W*H): | 6230*2500*3855mm | Weight: | 15.8TON |
Certification: | ISO9001:2008 | Warranty: | 1 year warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

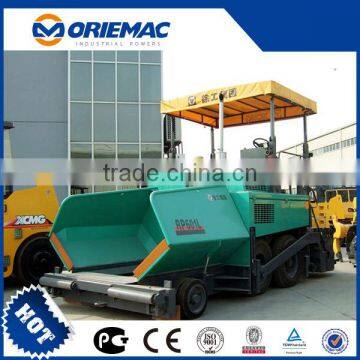

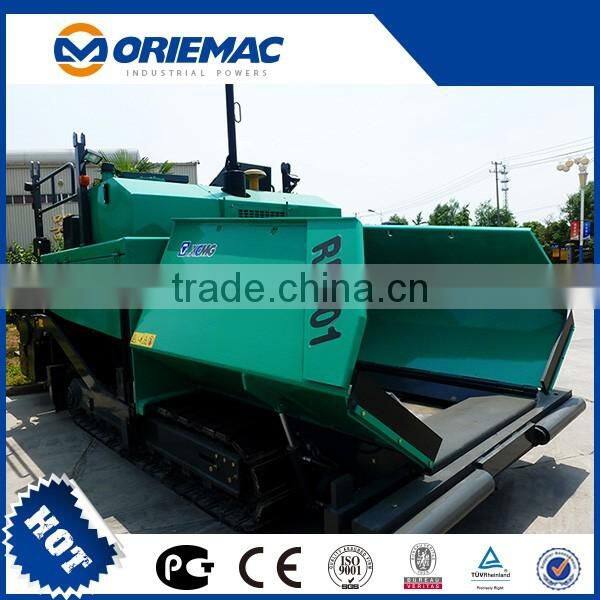

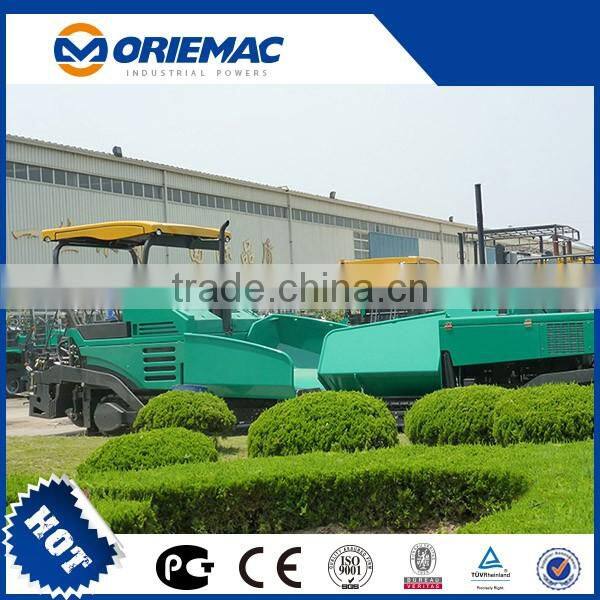

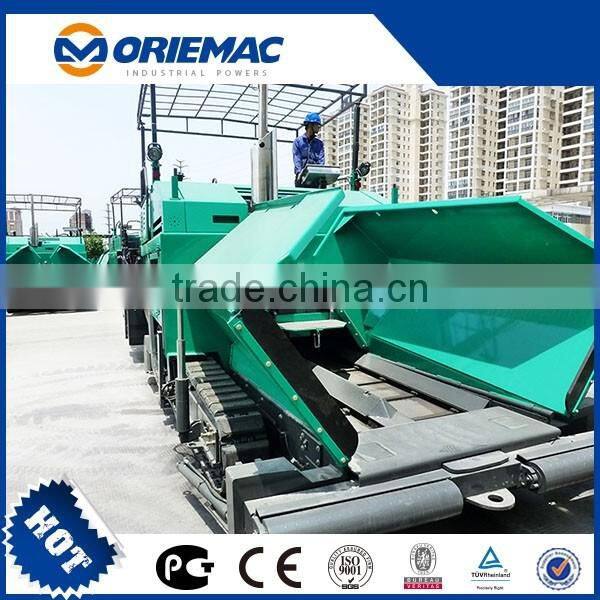

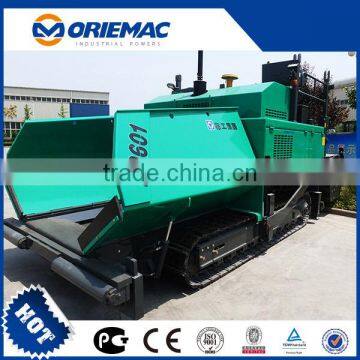

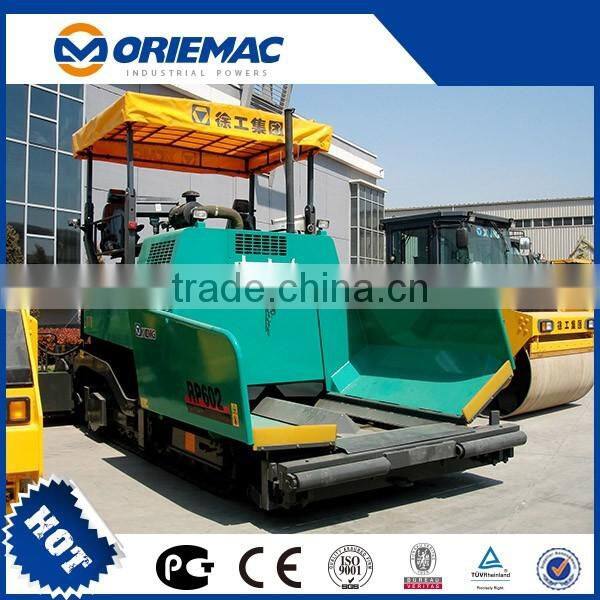

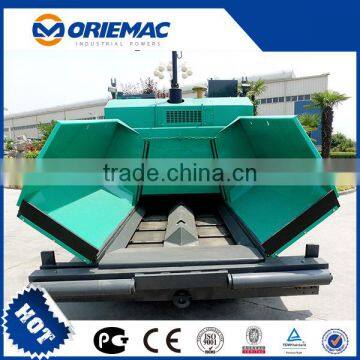

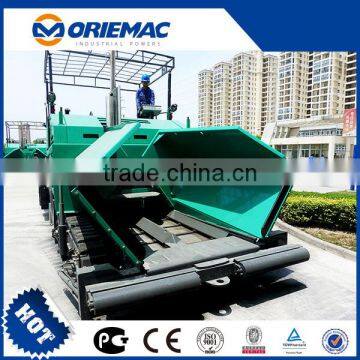

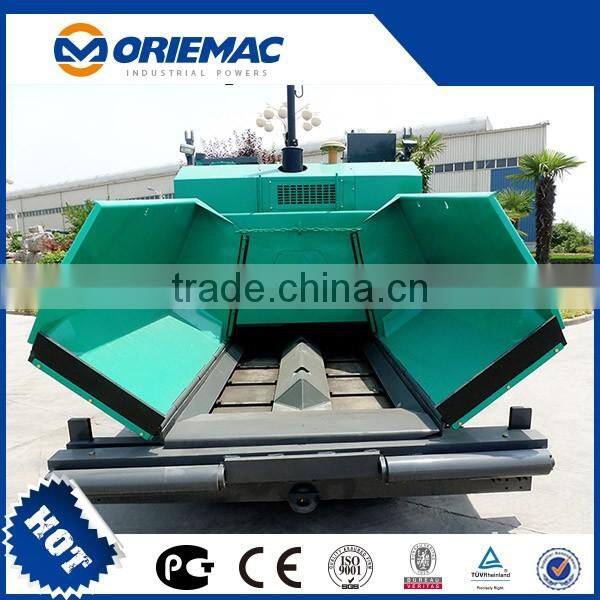

Concrete paver machine 6m concrete paver molds for sale
Paving Width Ranges:2.5~6m
Max Paving Thickness:380mm
Engine:BF4M1013C/118kw
Technical parameters --- 6m Asphalt Concrete Paver RP602
Item | Unit | RP602 |
---|---|---|
Basic paving width | m | 2.5 |
Max. paving width | m | 6 |
Max. paving thickness | mm | 380 |
Paving speed | m/min | 0~14 |
Travel speed | km/h | 0~3.0 |
Theoretical productivity | t/h | 400 |
Hopper capacity | t | 13 |
Gradeability | % | 20 |
Pavement evenness | mm/3m | 3 |
Cross slope error | % | ±0.03 |
Crown adjustment range | % | 0~3 |
Diesel engine model | BF4M1013C | |
Diesel engine power | kw | 118 |
Diesel engine speed | r/min | 2300 |
Diesel oil tank capacity | L | 230 |
Overall weight | t | 15.8~21.5 |
Dimension | mm | 6230×2500×3855 |
Vibration frequency | Hz | / |
Screed heating mode | Electrical heating | |
Material level control mode | Automatic Control by Ultrasonic Sensor | |
Automatic Leveling Control | Simulation control |
RP602/RP802 multi-functional paver can be applied to the paving of basic stabilized material and surface material. The machine adopts independent right drive and left drive, micro-computer control, and the telescopic screed with single vibrating tamper (RP802 is equipped with pulse vibration). The material level is controlled by ultrasonic sensing technique, featuring good stability in low-speed paving, even material feeding, high preloading compactness, good pavement evenness, and easy operation. It can absolutely meet the construction requirements.
Technique features
Power transmission technique: high-efficient and powerful
Deutz water-cooled diesel engine with strong power adopts high-pressure pump structure, featuring good diesel oil atomization and economical efficiency, long service life, and extensive application range.
The hydraulic pump and motor of Linde and Rexroth adopted have long service life, featuring big driving torque, low load rate, and reliable performance.
Control technique: stable and precise
Material feeding adopts synchronous drive, and the rotate speed is controlled by full proportional control. The material level adopts ultrasonic control technique which can control the height of the material level stably. The manual gearshift adopts infinitely variable control.
Speed control of material distribution: the manual gearshift and automatic gearshift can be switched freely.
Electronic automatic leveling ensures higher evenness. Many sensing modes and high automaticity can meet the construction requirements of high-grade roads.
Digital micro-computer control can pre-select the speed. Adopt the constant speed automatic control technique, ensuring the paving speed not impacted by the load. During moving, the paving speed and travel speed can be switched freely.
Material feeding and distribution technique: reliable and durable
Strong material distribution capacity: It adopts 360mm coarse pitch, Φ420 large diameter blade, and 28BH reinforced drive chain, the drive capacity is higher 25% than the similar products.
The material distribution box and chain adopt high-intensity design, which can supply strong transmission power. The maximum power transmission capacity of the material distribution shaft is 5000Nm, which can achieve full buried distribution, greatly reducing the segregation.
There are two reverse blades in the middle of the material distribution box, reducing the middle segregation zone.
Screed technique: mature and reliable
Mature and reliable hydraulic telescopic screed: the reasonable dimension match of the telescopic cylinder and sleeve features the excellent glide accuracy and good reliability, ensuring the paving quality.
3-point suspension mechanism ensures stable stretch and retraction
The infinitely adjustable vibration frequency (575 screed) meets the requirements of different working conditions.
Adopt the electrical heating, featuring safety, environment protection, and convenience.
Performance advantages
Excellent configuration
The key parts such as diesel engine, hydraulic pump, hydraulic motor, hydraulic valve, travel reducer, micro-computer controller, bearings, hydraulic pipe joints, hydraulic tube and hose, and filters are imported from European countries, ensuring the durability and reliability of the machine.
Simple maintenance
Central controlled operation features simplicity and reliability. All the operating components are installed on the instrument box, the instrument box is moveable.
There are numbers on all the electrical circuits, which is convenient to check and maintain.
The side cover and engine hood is easy to open, and the components that need to be maintain usually are easy to access to.
The travel drive device adopts outboard cover, which is convenient to maintain.
Excellent performance
The maintenance-free crawler travel device composed of track rollers and rubber track shoes is durable, and doesn’t damage the roads.
The imported automatic centralized lubricating system prolongs the service life of the bearings in high-temperature positions, greatly reducing the amount of maintenance and improving the working efficiency.
