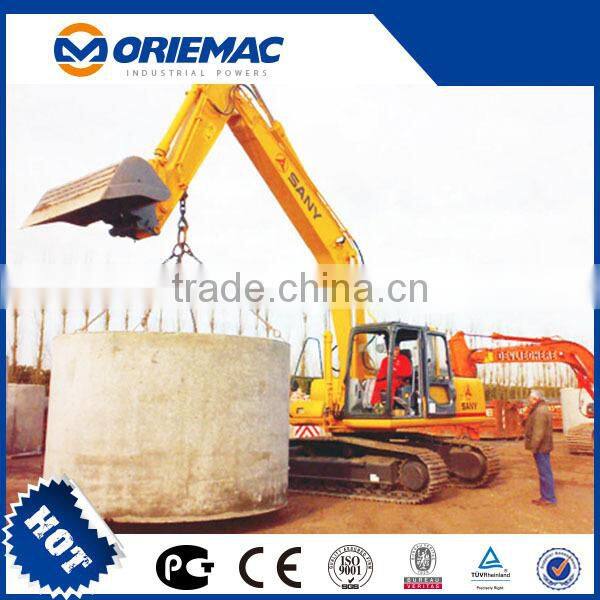

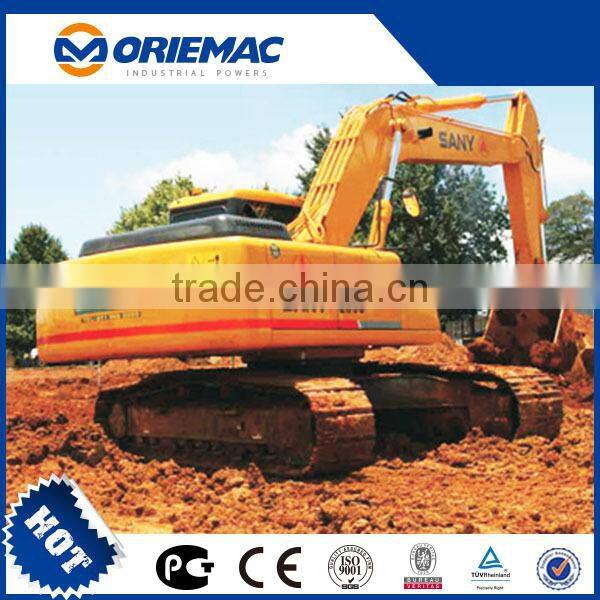

SANY Excavator 13.5 Ton Remote Control Excavator SY135C
As authorized dealer, we offer full line of genuine machinery and parts, including Motor grader, truck crane, excavator, bulldozer etc.
Product feature: SANY SY135C 13.5Ton Hydraulic Crawler Excavator
·Meeting EPA, EU Tier 3 Emission regulations, more power and lower fuel consumption.
·Advanced positive flow hydraulic control system,easier operation and higher efficiency.
·New high performance Isu--zu engine,with lower malfunction ratio and better roughness-wearing.
·More stable, faster, lower operation cost and higher return on investment.
-Intelligent malfunction diagnosis system, extended overhaul period and lower maintenance cost.
-CE Certification.
Technical parameters: SANY SY135C 13.5Ton Hydraulic Crawler Excavator
Bucket vol. ----------------------------------------------------------------------0.53m³
Operating mass:---------------------------------------------------------------13.5ton
Transport length:---------------------------------------------------------------7700mm
Transport width:----------------------------------------------------------------2550mm
Transport height:---------------------------------------------------------------2815mm
Upperstructure width:---------------------------------------------------------2490mm
Cab Height:----------------------------------------------------------------------2740mm
Std. Track shoe width:---------------------------------------------------------500mm
track gauge:----------------------------------------------------------------------1990mm
Min. Ground clearance:-------------------------------------------------------425mm
Tail swing radius:---------------------------------------------------------------2205mm
Roller gauge:--------------------------------------------------------------------2930mm
Track length:--------------------------------------------------------------------3665mm
Max. Digging height:----------------------------------------------------------8645mm
Max. Dumping height:--------------------------------------------------------6175mm
Max. Digging depth:----------------------------------------------------------5500mm
Max. Vertical digging depth:-----------------------------------------------4850mm
Max. Excavating distance:-------------------------------------------------8290mm
Min. Swing radius:-----------------------------------------------------------2500mm
Height at min. Swing radius:----------------------------------------------6500mm
Rated power:-----------------------------------------------------------------73.5kw/2200rpm
Travel speed:-----------------------------------------------------------------5.5/3.5(Highest/Lowest)km/h
Swing speed:-----------------------------------------------------------------12rpm
Gradeability:------------------------------------------------------------------35 degress or 70%
Ground pressure:-----------------------------------------------------------41.7kPa
Bucket digging force:-------------------------------------------------------92.7kN
Arm Digging Force:---------------------------------------------------------66.13kN
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
Please contact us if you have any questions about the products and parts.
