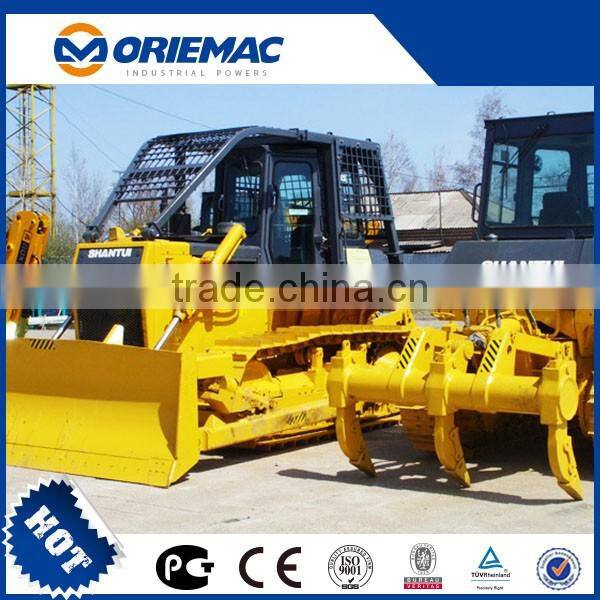

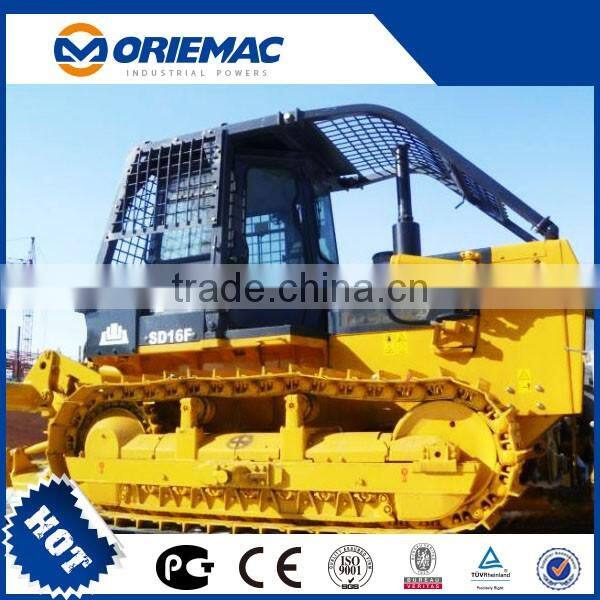

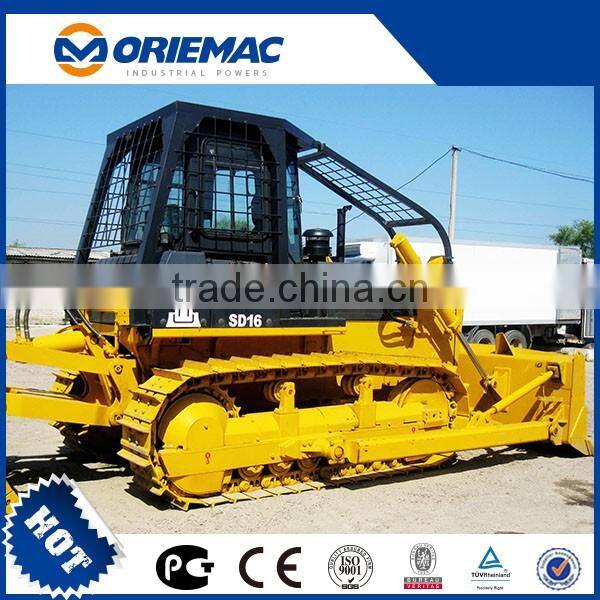

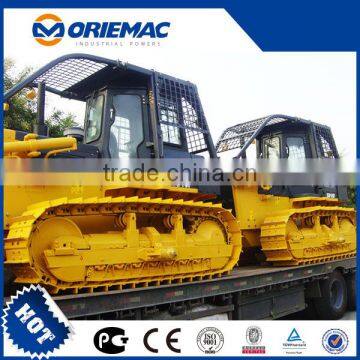

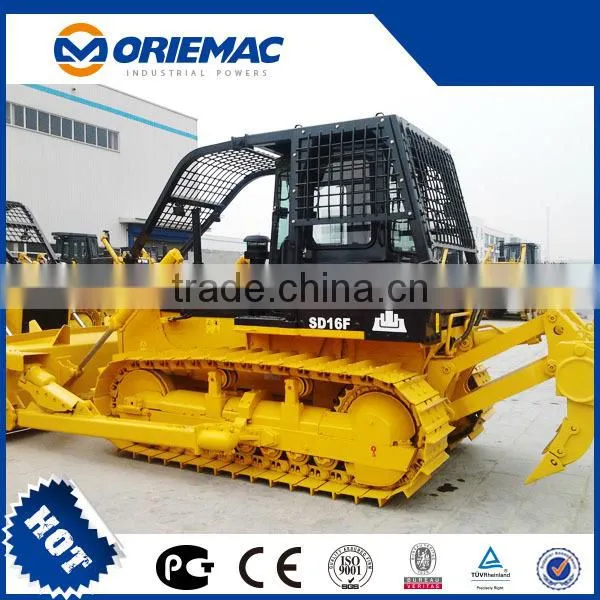

Price 4.5m3 Shantui SD16/SD16F Mini Bulldozer

Name: Price 4.5m3 Shantui SD16/SD16F Mini Bulldozer
Brand: SHANTUI
SKU: 140720356
Availability: InStock

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

US$ 86,000 - 96,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SHANTUI

Model Number:

SD16

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SHANTUI

Model Number SD16

Condition New

Moving Type Crawler Bulldozer

Machine Weight 17.5ton

Dimension(Long * Breadth * High) 5345*3388*3032mm

After-sales Service Provided Engineers available to service machinery overseas

Price 4.5m3 Shantui SD16/SD16F mini Bulldozer

whatsApp/Tel:+86 18217056032

ITEM	UNIT	SD16F
L×W×H (Ripper not included)	mm	5345×3388×3032
Operating weight (Ripper not included)	t	17.5
Engine	-	Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated power	kW/rpm	120/1850
Gradeability	°	30
Blade type	-	Straight tilt blade U blade Angle blade
Blade width	mm	Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
Dozing capacity	m3	Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma× drop below ground of blade	mm	540
Lift height of blade	mm	1095
Ripper type	-	Three-shank ripper
Ripping depth of ripper	mm	572
Lifting height of ripper	mm	592
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	7
Number of track shoes (each side)	-	39
Width of track shoe	mm	560
Track gauge	mm	1880
Ground length and ground pressure	mm/MPa	2635-0.062
Pitch	mm	203.2
