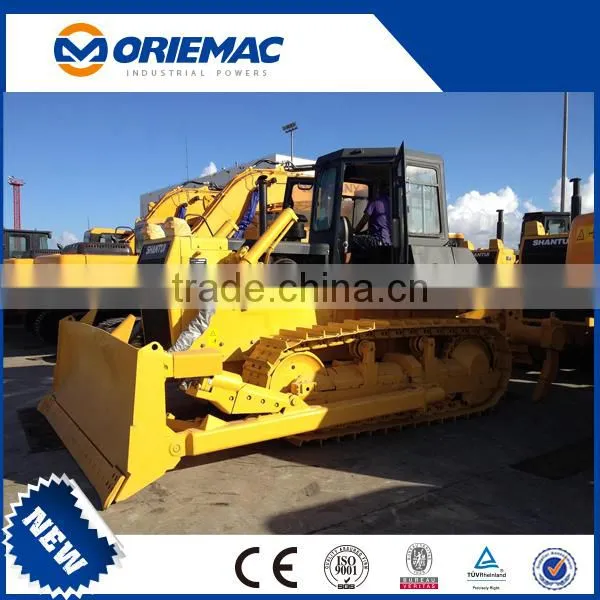

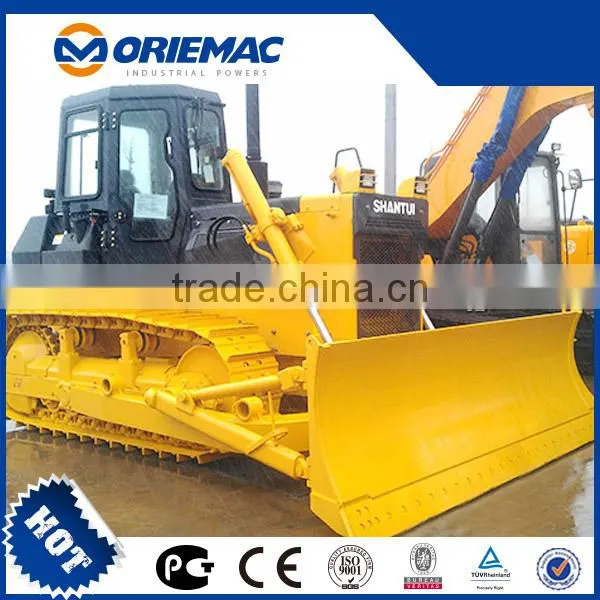

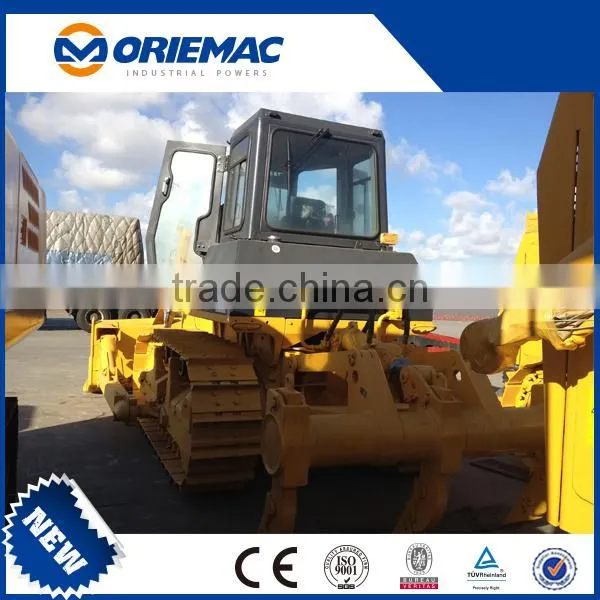

China Best Bulldozer Shantui Bulldozer SD16 Bulldozer
Specification of China top brand dozer Shantui Bulldozer SD16
Categories: |
Bulldozer |
Model |
SD16 |
name |
SD16 bulldozer |
clicks: |
418 |
Engine |
Shangchai C6121ZG70B/Steyr WD10G175E15 |
Weight |
17t |
Specification Blade Type |
Straight-tilt |
Angle |
U-type |
Min.ground clearance(mm) |
400 |
400 |
400 |
Ground pressure(MPa) |
0.067 |
0.067 |
0.067 |
Min.turning radius(m) |
4.7 |
4.5 |
4.9 |
Gradeability(°) |
30 |
30 |
30 |
Track gauge(mm) |
1880 |
1880 |
1880 |
Dozing capacity(m3) |
4.5 |
4.4 |
5.0 |
Efficiency(Theoretical value in 40m)(m3 /h) |
225 |
225 |
250 |
Blade width(mm) |
3388 |
3970 |
3556 |
Blade height(mm) |
1149 |
1090 |
1120 |
Max.drop below ground (mm) |
540 |
540 |
530 |
Max.tilt adjustment(mm) |
400 |
- |
400 |
ENGINE
Model……………………………………………....ShangchaiC6121ZG70B / STEYR WD10G175E15
Water cooled,in-line,4-stroke,injection direct
Rated horsepower………………………………..120kW
Rated revolution……………………………….......1850r/min
Cylinder number-bore×stroke……………….......6-126×130mm
Piston displacement……………………………...9.726L
Min.fuel consumption…………………………......214g/KW.h
Max. torque………………………………………....764N.m
TRAVEL SPEED
| Gear | 1st |
2nd |
3rd |
Foward(km/h) |
0-3.29 |
0-5.28 |
0-9.63 |
Reverse(km/h) |
0-4.28 |
0-7.59 |
0-12.53 |
