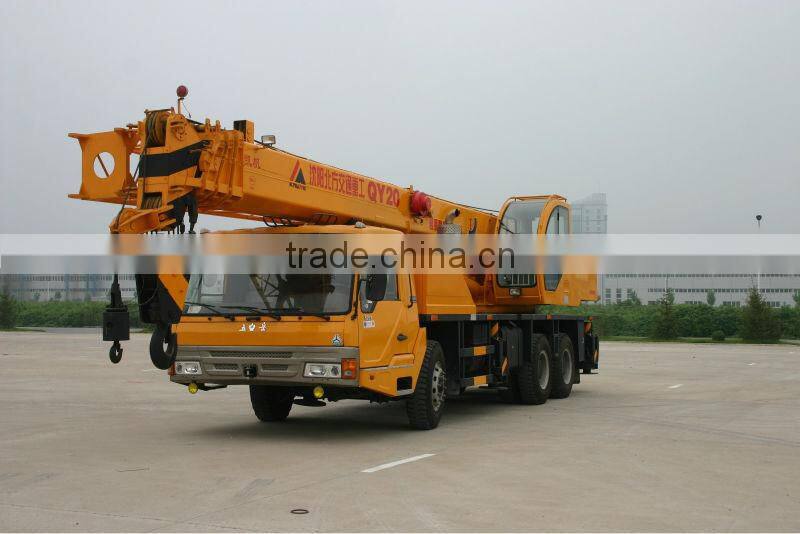

Help CenterKaiFan Brand 20 Ton Crane Technical Parameters Truck Crane QY20G
Related Products
-
KaiFan Brand New 160 Ton Truck Crane QY16FUS$ 30,000 - 200,000MOQ: 1 Unit -
KaiFan QY70U Truck CraneUS$ 1 - 100,000MOQ: 1 Unit
-
KaiFan Brand New 50 Ton Truck Crane QY50GUS$ 10,000 - 200,000MOQ: 1 Unit
-
KaiFan QY25G Truck CraneUS$ 1 - 100,000MOQ: 1 Unit
-
Heavy Road Wrecker KFM5322TQZ08HUS$ 30,000 - 50,000MOQ: 1 Unit
Specifications
QY20G truck crane1.Max. rated lifting capacity: 20000kg
2.Max. load moment of basic boom: 835 kn.m
“KAI FAN” Brand KFM5263JQZ20G(QY20G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 12t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Items |
QY20G(WUYUE ) |
Max. Rated lifting weight |
20000kg |
Max.Rated Lifting force of the basic boom |
825KN.m |
Max.Rated Lifting force of the main longest boom |
450KN.m |
Max. Height of the basic boom |
11m |
Max. Height of the main boom |
32.3m |
Max.Height of boom and jib |
40.1m |
Max. Traveling speed |
78km/h |
The whole weight of full load |
26200kg |
The whole weight |
26070kg |
External dimension(length×width×height) |
12550×2500×3330mm |
Vertical span of outrigger |
4.91m |
Horizontal span of outrigger |
5.63m |
Length of main boom |
10-31 |
Length of vice boom |
8m |
Elevation of main boom |
-2~80 |
Chassis Model |
TAZ5263J |
Engine model |
WP6-240 |
Rated power/rotate speed |
176kw/2300r/min |
Max. Torque/rotate speed |
800N.m/1400-1600r/min |
