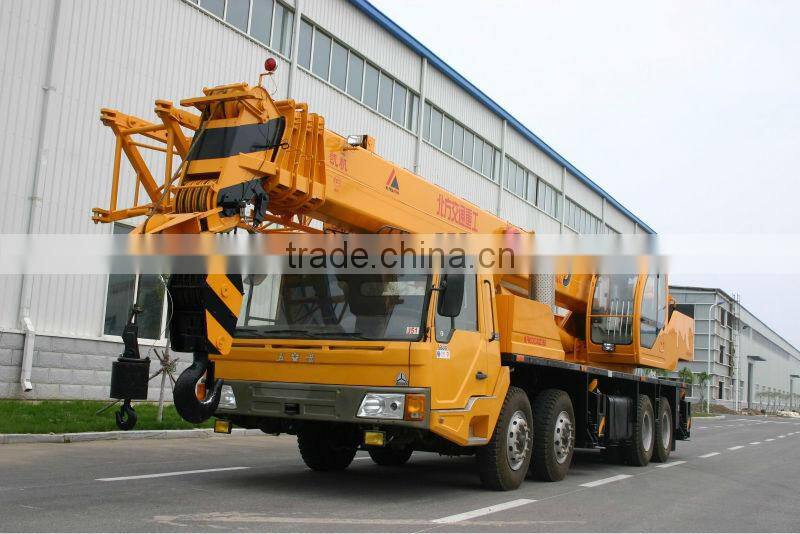

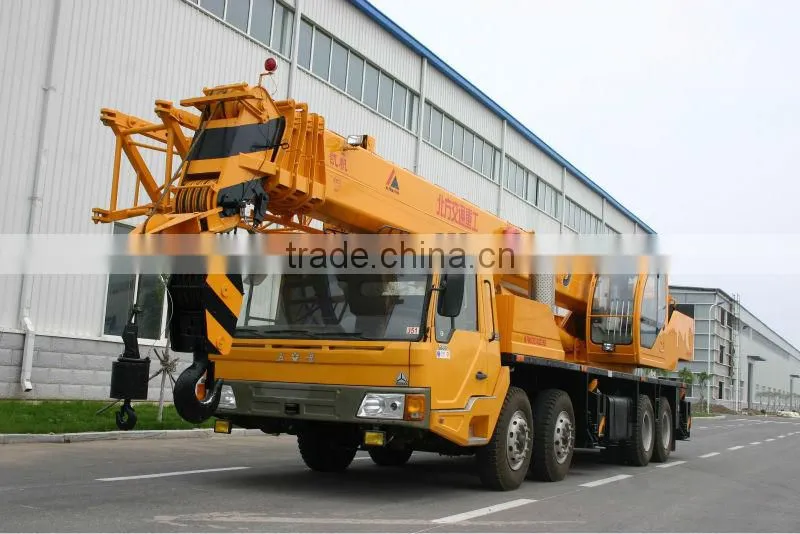

KaiFan Brand 35ton (WUYUE) Truck Crane QY35G
- 100 Unit / Units per Month
- Shanghai
- T/T
- 2019 Excellent condition for the used Mobile Truck Cranes 25T/50T/70T/90T/100T
- Used 50 ton China original X-CM-G QY50KA mobile truck crane, used crane QY50K-II truck 55 ton crane for sale
- China XCMG 50 tons hydraulic mobile 50t truck crane XCT50_M QY50KA QY55KC for sale
- Used Truck Crane used STC250S Mobile Crane with Good Performance used track crane
- Used Truck Crane 80 Tons Stc800s Original Made in China for the used Mobile Crane with Good Performance
- 10 Ton Dongfeng Flatbed Truck For Excavator Transport
Product Details
Condition: | New | Application: | construction | Rated Loading Capacity: | 35000kg |
Rated Lifting Moment: | 1225kn.m | Max. Lifting Load: | 35000kg | Max. Lifting Height: | 48m |
Span: | 5.4m | Place of Origin: | Liaoning, China | Brand Name: | KaiFan |
Model Number: | QY35G | Certification: | ISO | Warranty: | 1YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
QY35G truck crane1.Max. rated lifting capacity: 35000kg
2.Max. load moment of basic boom: 1225 kn.m
KaiFan Brand QY35G Truck Crane
“KAI FAN” Brand KFM5353JQZ35G(QY35G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 35t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Items | Unit | Value | |
Working Performance Parameters | Max. Rated lifting weight | kg | 35000 |
Max. Lifting force of the basic boom | kn.m | 1225 | |
Max. Height of the basic boom | m | 11.2 | |
Max. Lifting force of the longest main boom | kn.m | 638 | |
Max. Height of the main boom | m | 33 | |
Max. Height of the vice boom | m | 48 | |
Max. Speed of the single rope | m/min | 110 | |
Working Speed | Turning speed | r/min | 0-2.4 |
Lifting time of the lift boom | s | 70 | |
Extension time of the lift boom | s | 50 | |
Traveling Parameters | Max. Traveling speed | km/h | 70 |
The whole weight | kg | 35040 | |
Max. Grade ability | % | 26 | |
Min. Turning radius | m | 12 | |
Min. Ground clearance | m | 0.23 | |
Approaching angle | ° | 17 | |
Departure angle | ° | 11 | |
Dimension Parameters | External dimension(length×width×height) | mm | 13312×2494×3500 |
Vertical span of outrigger | m | 5.4 | |
Horizontal span of outrigger | m | 6.0 | |
Length of main boom | m | 10.5~33 | |
Elevation of boom | ° | -2~80 | |
Length of vice boom | m | 8.5~14.5 | |
Chassis | Model | — | TAZ5363J |
Engine model | — | WP10-290 | |
Rated power/speed | kw/(r/min) | 213/2200 | |
Max. Torque/rotate speed | n.m/(r/min) | 1160/1300-1600 |
