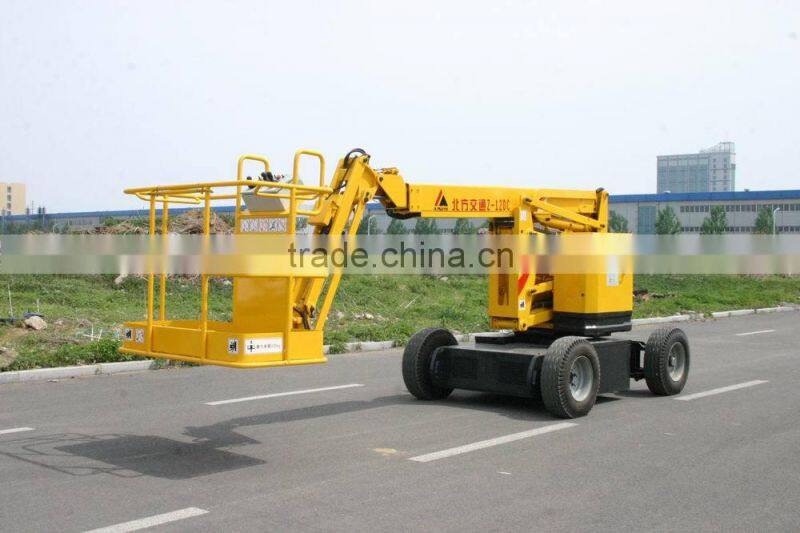

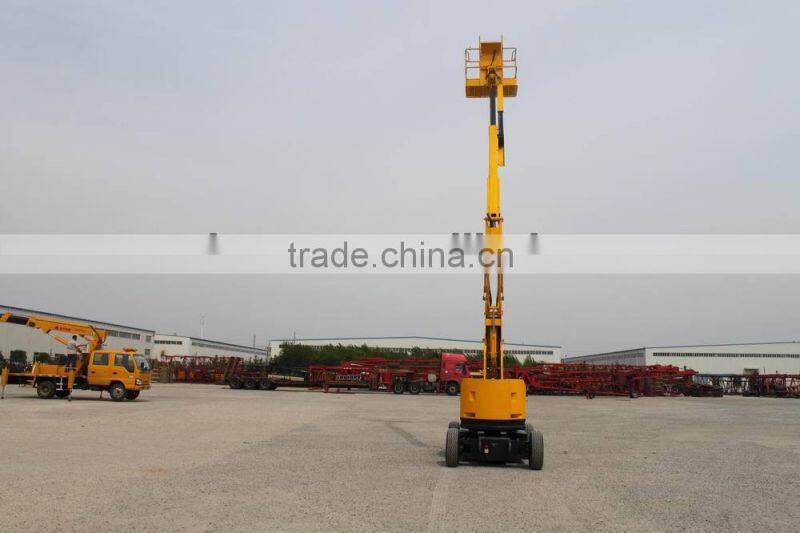

N. Traffic 10m Articulated Boom Lift Hanging Work Platform(ZZ10AC)

Name: N. Traffic 10m Articulated Boom Lift Hanging Work Platform(ZZ10AC)
Brand: N.Traffic
SKU: 140719468
Availability: InStock

US$ 40,000 - 50,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

N.Traffic

Model Number:

ZZ10AC

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name N.Traffic

Model Number ZZ10AC

Specifications

N. traffic 10m Articulated Boom Lift hanging work platform(ZZ10AC
hanging work platform
Articulated Boom Lift
small boom lift

N. traffic 10m Articulated Boom Lift hanging work platform(ZZ10AC)
aerial working platform
insulated aerial work platform

Model		ZZ10AC	ZZ12AC	ZZ14AC	ZZ16M/AC	ZZ18M/AC
Main dimension parameter	ing height	12.2m	14.5m	16m	18.5m	20.1m
	Max.platform floor height	10.5m	12.8m	14.3m	16.8m	18.4m
	ing outreach	6.8m	7.1m	7.1m	13.2m	13.2m
	Working basket length	1.4m	1.8m	1.8m	1.8m	1.8m
	Working basket width	0.76m	0.76m	0.76m	0.76m	0.76m
	Working platform height	1.1m	1.1m	1.1m	1.1m	1.1m
	The whole vehicle retracting length	5.7m	5.46m	5.46m	9.3m	9.3m
	The whole vehicle retracting width	1.7m	1.87m	1.87m	2.41m	2.41m
	The whole vehicle retractiong height	2m	2m	2m	2.54m	2.54m
	Axle base	1.9m	2.04m	2.04m	2.74m	2.74m
	Min. platform floor height	0.145m	0.205m	0.205m	0.24m	0.24m
Main technical parameter	Working basket load	227kg	227kg	227kg	227kg	227kg
	The working platform rotation	160°	160°	160°	160°	160°
	Turret rotation	355°	355°	355°	360°	360°
	The max.acutating speed(retracting)	6.4km/h	6.4km/h	6.4km/h	6.4km/h	6.4km/h
	The max. acutating speed (rising and streching )	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h
	Grade ability(retracting) 4×2	30%	30%	30%	30%	30%
	Turning radius(inside)	1.9m	1.9m	1.9m	1.22m	1.22m
	Turning radius(outside)	4.1m	4.3m	4.3m	4.67m	4.67m
	Voltage of the system ,	48v	48v	48v	48v	48v
	Tire type	9-14.5L	9-14.5L	9-14.5L	14×22.5	14×22.5
Power parameter	Power source	8 *4H, 6V315AH storage battery	8 *4H, 6V315AH storage battery	8*4H, 6V315AH storage battery	8 *4H, 6V315AH storage battery	8 *4H, 6V315AH storage battery
	power source	24v	24v	24v	24v	24v
	Hydraulic oil tank volume	18.9L	30L	30L	56L	56L
Weight parameter	G.V.W.	4869kg	6429kg	6635kg	7340kg	7620kg
	Max. wheel load	2177kg	3635g	3674kg	4235kg	4365kg
	Partial pressure of one tire	689kpa	689kpa	689kpa	689kpa	689kpa
