Specifications
N. traffic 14M vehicle mounted aerial work platformaerial working platform
aerial work platform
vehicle mounted aerial work

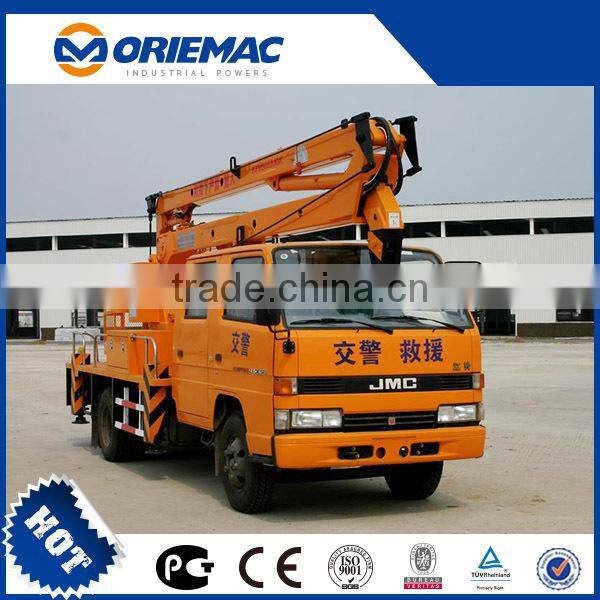

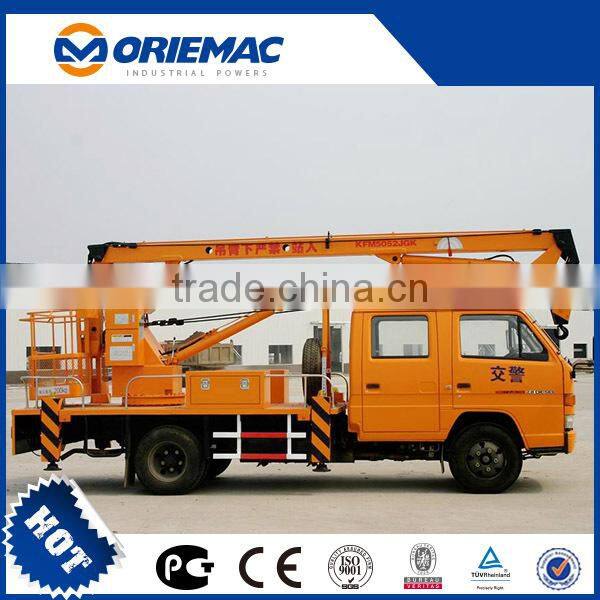

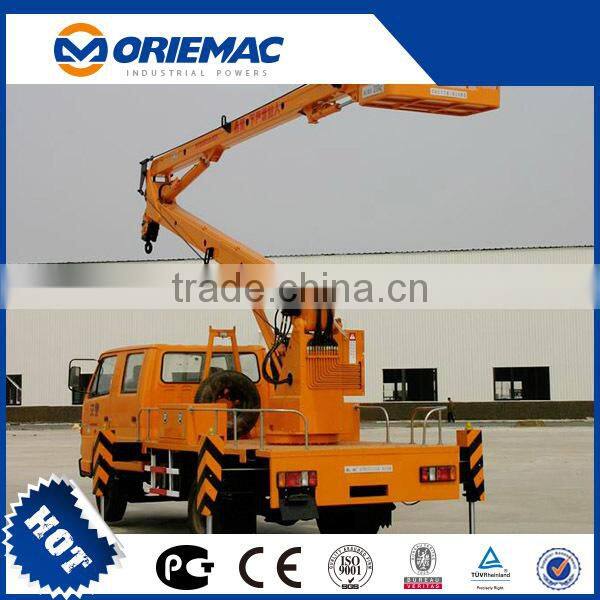

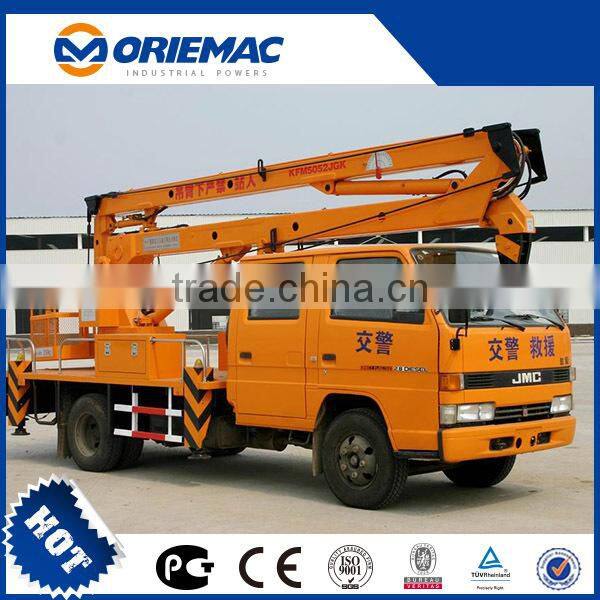

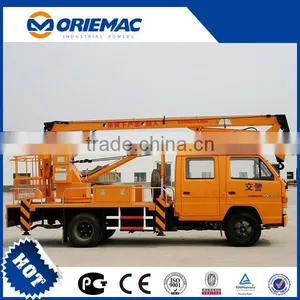

N. traffic 14M vehicle mounted aerial work platform KFM5052JGK
KFM5052JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on..
Bulletin No. | KFM5052JGK | |
Type | GKZ-14J | |
External dimensions(mm) | 6320×2000×2920 | |
Structure type | Three-section articulated boom | |
Working Cage | Internal size(mm) | 1100×600×1100 |
Rated loading(kg) | 200(or 2 persons) | |
Max. Working height(mm) | 14000 | |
Max. Height from ground(mm) | 12300 | |
Max. Working radius(mm) | 7050 | |
Working radius when doing the highest height(mm) | 2990 | |
Chassis Introduction
Traveling Performance Parameters | Chassis model | JX1060TSG23 JMC JX1060TSG23 |
Persons | 2+3 | |
Axle base (mm) | 3360 | |
Wheel base (front/rear)(mm) | 1385/1425 | |
Driving mode | 4×2 | |
Front suspension(mm) | 1015 | |
Rear suspension(mm) | 1815 | |
Approaching angle(º) | 27 | |
Departure angle(º) | 11 | |
Max. Grade ability(%) | 28 | |
Min. Turning diameter(mm) | 13600 | |
Min. Ground clearance(mm) | 190 | |
Engine | Engine model | JX493ZLQ3 |
Rated power(kw/r/min) | 85/3600 | |
Torque(N,m/r/min) | 285/2000 | |
Max. Speed(km/h) | 70 | |
Gas consumption per one hundred miles(diesel oil) (L) | 12 | |
