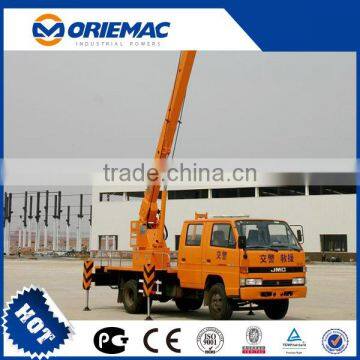

N. traffic 14M high rise work platform KFM5052JGK

Bulletin No.

KFM5052JGK

Type

GKZ-14J

External dimensions(mm)

6320×2000×2920

Structure type

Three-section articulated boom

Working Cage

Internal size(mm)

1100×600×1100

Rated loading(kg)

200(or 2 persons)

Max. Working height(mm)

14000

Max. Height from ground(mm)

12300

Max. Working radius(mm)

7050

Working radius when doing the highest height(mm)

2990

Traveling

Performance

Parameters

Chassis model

JX1060TSG23

JMC JX1060TSG23

Persons

2+3

Axle base (mm)

3360

Wheel base (front/rear)(mm)

1385/1425

Driving mode

4×2

Front suspension(mm)

1015

Rear suspension(mm)

1815

Approaching angle(º)

27

Departure angle(º)

11

Max. Grade ability(%)

28

Min. Turning diameter(mm)

13600

Min. Ground clearance(mm)

190

Engine

Engine model

JX493ZLQ3

Rated power(kw/r/min)

85/3600

Torque(N,m/r/min)

285/2000

Max. Speed(km/h)

70

Gas consumption per one hundred miles(diesel oil) (L)

12
