Specifications
China KaiFan QY16F 16 ton truck crane1.Max. rated lifting capacity: 16000kg
2.Max. load moment of basic boom: 553 kn.m

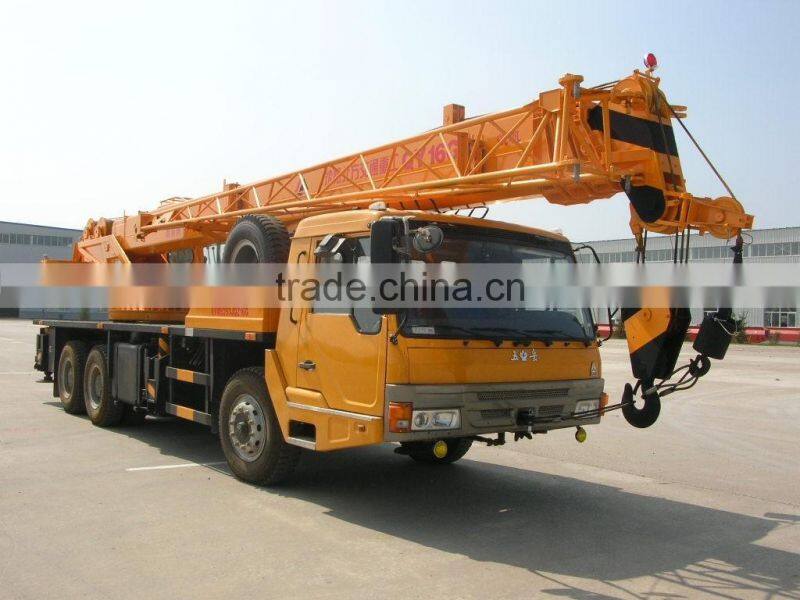

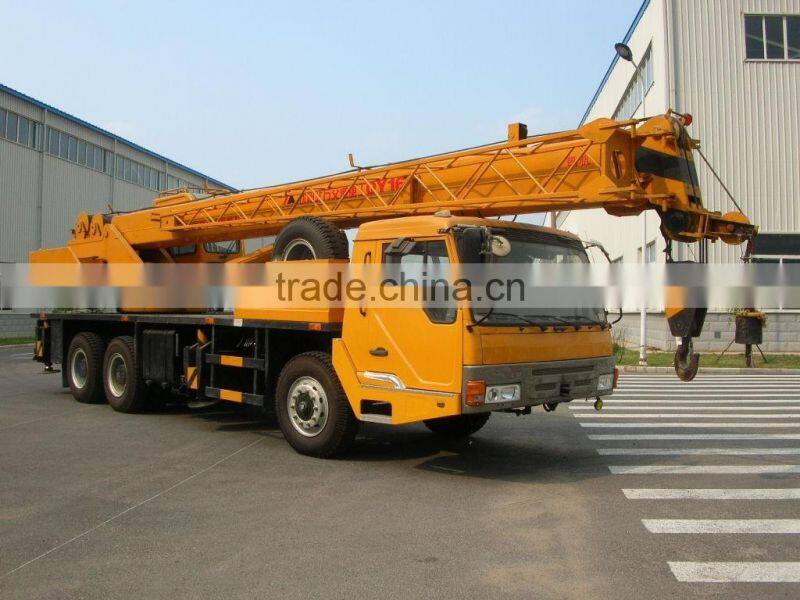

China KaiFan QY16F 16 ton truck crane
“KAI FAN” Brand KFM5233JQZ16F(QY16F)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 16t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Items | Parameters | |
Working Performance Parameters | Max. Rated lifting weight | 16000 kg |
Max. Rated lifting force | 553 kn.m | |
Max. Height of the basic boom | 10.4m | |
Max. Height of the main boom | 24.3m | |
Max. Height of boom and jib | 31.8m | |
Working Speed | Extension time of the lift boom | 25s |
Lifting time of the lift boom | 20s | |
Turning speed | 0~2.5rpm | |
Traveling Parameters | Max. Traveling speed | 75 km/h |
Max. Grade ability | 26% | |
Min. Turning radius | 11m | |
Min. Ground clearance | 270mm | |
Approaching angle | 16° | |
Departure angle | 11° | |
Elevation of the main boom | -3°~80° | |
Weight Parameters | The whole weight | 23000 kg |
Load of the front axle | 6000 kg | |
Load of the middle-rear axle | 17000 kg | |
The whole weight of full load | 22805 kg | |
Dimension Parameters | External dimension(length×width×height) | 12000×2494×3330mm |
Vertical span of outrigger | 4.8m | |
Horizontal span of outrigger | 5.4m | |
Length of main boom | 9.8m~24.3m | |
Length of vice boom | 7.5m | |
Chassis | Model | TAZ5253J |
Engine model | WP6-240 | |
Rated power/speed | 176kw/2500rpm | |
Max. Torque/rotate speed | 800n.m/1300~1600rpm | |
