Specifications
KaiFan 35ton QY35G Used Truck Crane for sale1.Max. rated lifting capacity: 35000kg
2.Max. load moment of basic boom:1225 kn.m

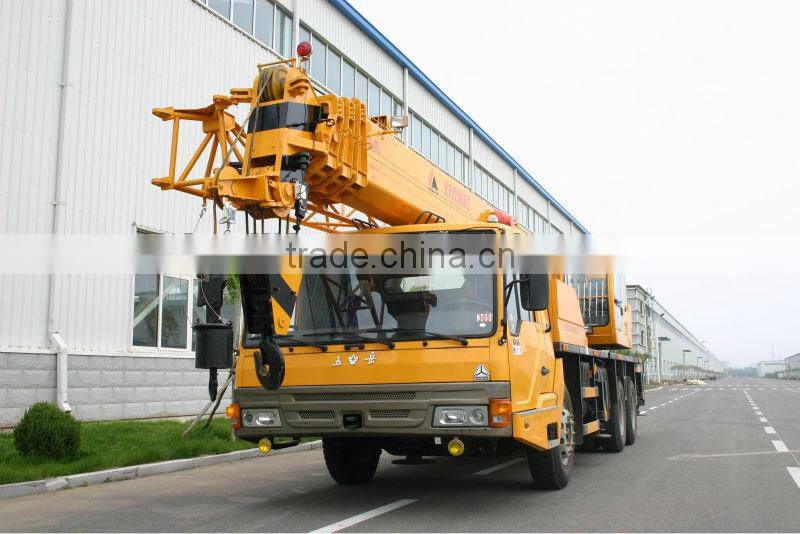

KaiFan 35ton QY35G Used Truck Crane for sale
“KAI FAN” Brand KFM5353JQZ35G(QY35G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 35t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Items | Unit | Value | |
Working Performance Parameters | Max. Rated lifting weight | kg | 35000 |
Max. Lifting force of the basic boom | kn.m | 1225 | |
Max. Height of the basic boom | m | 11.2 | |
Max. Lifting force of the longest main boom | kn.m | 638 | |
Max. Height of the main boom | m | 33 | |
Max. Height of the vice boom | m | 48 | |
Max. Speed of the single rope | m/min | 110 | |
Working Speed | Turning speed | r/min | 0-2.4 |
Lifting time of the lift boom | s | 70 | |
Extension time of the lift boom | s | 50 | |
Traveling Parameters | Max. Traveling speed | km/h | 70 |
The whole weight | kg | 35040 | |
Max. Grade ability | % | 26 | |
Min. Turning radius | m | 12 | |
Min. Ground clearance | m | 0.23 | |
Approaching angle | ° | 17 | |
Departure angle | ° | 11 | |
Dimension Parameters | External dimension(length×width×height) | mm | 13312×2494×3500 |
Vertical span of outrigger | m | 5.4 | |
Horizontal span of outrigger | m | 6.0 | |
Length of main boom | m | 10.5~33 | |
Elevation of boom | ° | -2~80 | |
Length of vice boom | m | 8.5~14.5 | |
Chassis | Model | — | TAZ5363J |
Engine model | — | WP10-290 | |
Rated power/speed | kw/(r/min) | 213/2200 | |
Max. Torque/rotate speed | n.m/(r/min) | 1160/1300-1600 | |
