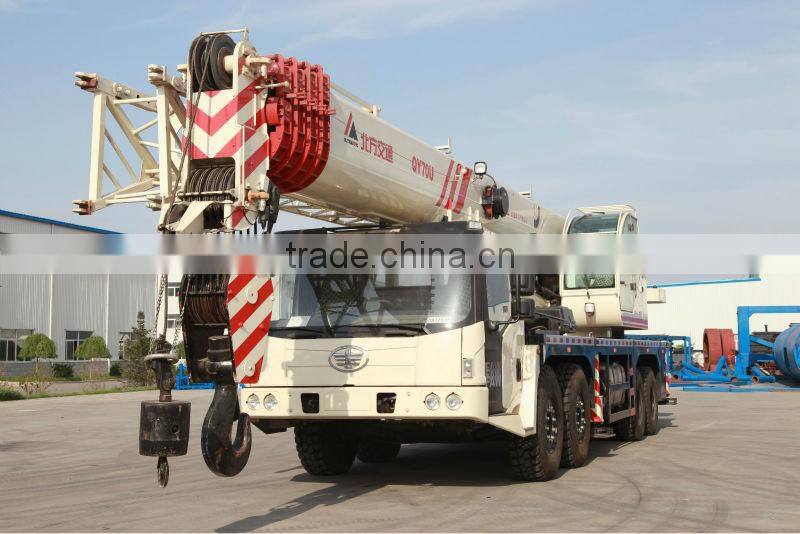

N.Traffic70 Ton Truck Crane (QY70U)
Specifications
N.Traffic70 ton Truck Crane for sale(QY70U)1)Dimension:14350*2800*3750mm
2)Rated lifting capacity:70ton
3)Rated power:276kw
70T Crane( QY70U) Technical Parameters
Working Condition
1,Altitude: 0-4500m
2,Temperature:-25°C--+45°C
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
Items | Unit | Value | |
Working Performance Parameters | Max. Rated lifting weight | kg | 70000 |
Max. Lifting force of the basic boom | kN.m | 2400 | |
Max. Lifting force of the longest main boom | kN.m | 1120 | |
Max. Lifting height of the basic boom | m | 12.49 | |
Max. Lifting height of the main boom | m | 44.60 | |
Max. Lifting height of the vice boom | m | 61.2 | |
Working Speed | Max. Speed of the single rope | m/min | 120 |
Extending time of the lifting boom | s | 150 | |
Lifting time of the lifting boom | s | 75 | |
Turning speed | r/min | 0-2 | |
Traveling Parameters | Max. Travelling speed | km/h | 72 |
Max. Grade ability | % | 30 | |
Min. Turning radius | m | 12 | |
Min. Ground clearance | m | 0.230 | |
Approaching angle | ° | 18 | |
Departure angle | ° | 11 | |
