N.Traffic 25Ton Hydraulic Truck Crane QY25G
- 100 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | construction | Rated Loading Capacity: | 25ton |
Rated Lifting Moment: | 960kN.m | Max. Lifting Load: | 25ton | Max. Lifting Height: | 40.2m |
Span: | 5.2m | Place of Origin: | Liaoning, China | Brand Name: | N.Traffic |
Model Number: | QY25G | Certification: | CE,ISO,GOST | Warranty: | 1 YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
N.Traffic truck crane QY25GMax.rated load 25tons
Weight 29.87tons
Max.boom length:40.2m
Max.lifting torque:960kn
N.Traffic KaiFan Truck Crane QY25G
Feasures
“KAI FAN” Brand KFM5286JQZ25G(QY25G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Parameters
Items | QY25G (FAW) |
Max. Rated lifting weight | 25000kg |
Max.Rated Lifting force of the basic boom | 960KN.m |
Max.Rated Lifting force of the main longest boom | 540KN.m |
Max. Height of the basic boom | 11.2m |
Max. Height of the main boom | 32.5m |
Max.Height of boom and jib | 40.2m |
Max. Traveling speed | 70km/h |
The whole weight of full load | 30000kg |
The whole weight | 29870kg |
External dimension(length×width×height) | 12630×2610X3460 |
Vertical span of outrigger | 5.2m |
Horizontal span of outrigger | 5.9m |
Length of main boom | 10.2~32.1 |
Length of vice boom | 8.1 |
Elevation of main boom | -2~80 |
Chassis Model | CA5305JQZ |
Engine model | CA6DL1-26E3 |
Rated power/rotate speed | 192kw/2300r/min |
Max. Torque/rotate speed | 1050N.m/1300-1700r/min |

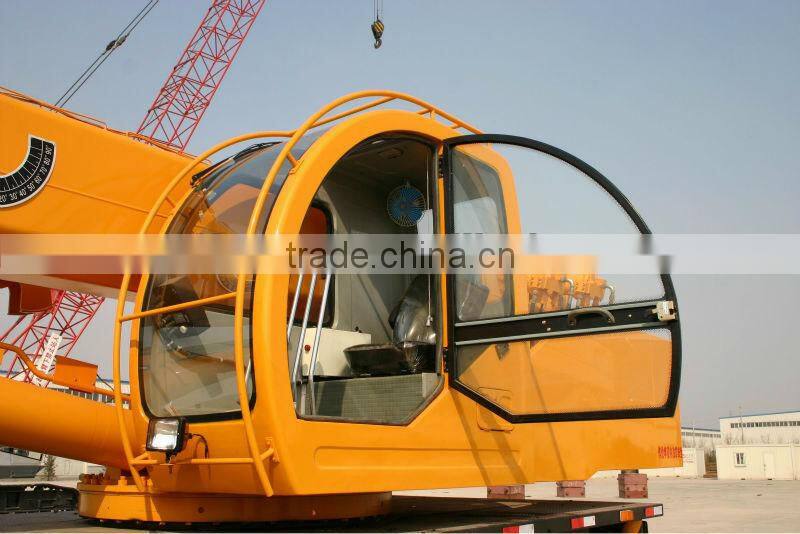

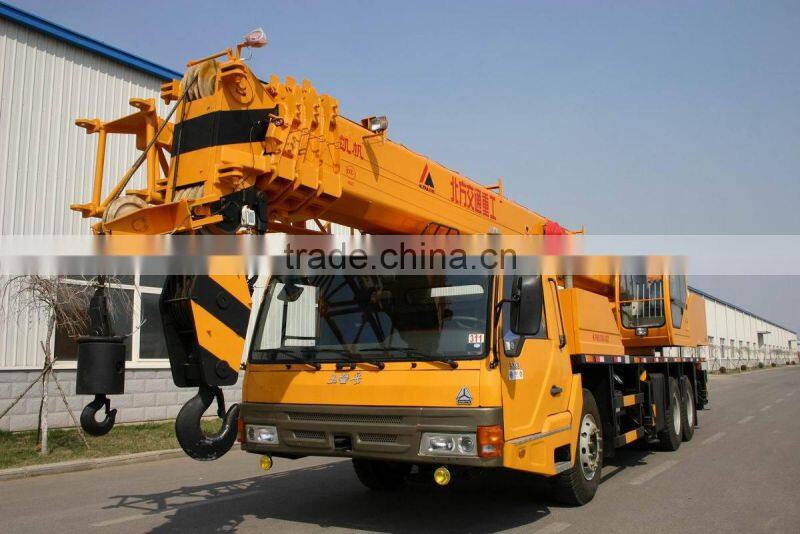

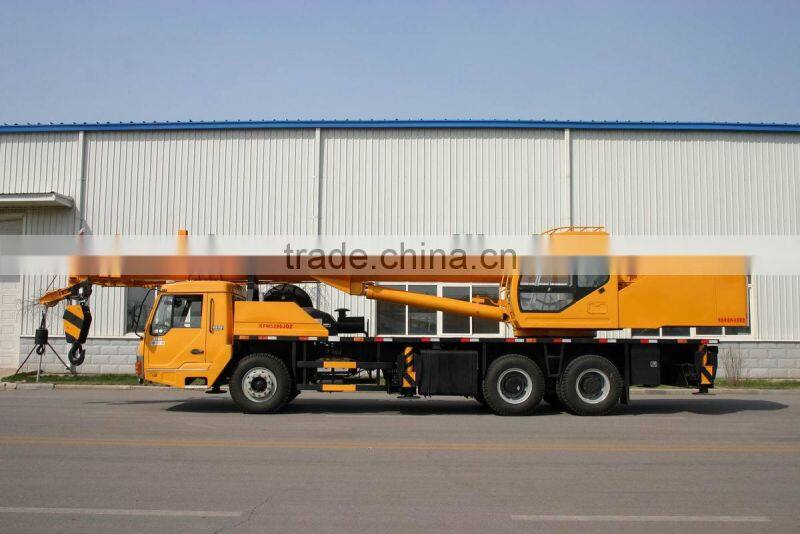

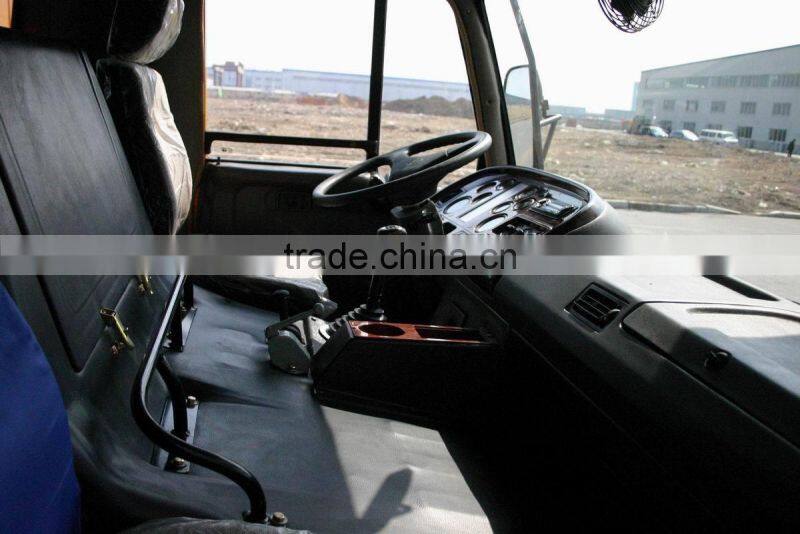

Pictures
