Specifications
Three-section articulated boomMax. Working height:16m
Max. Height from ground:14.3m
Rated lifting weight:995kg

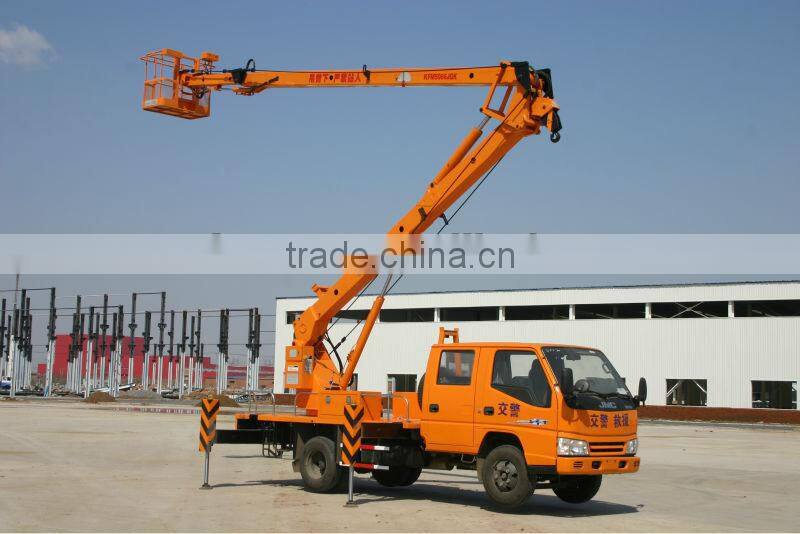

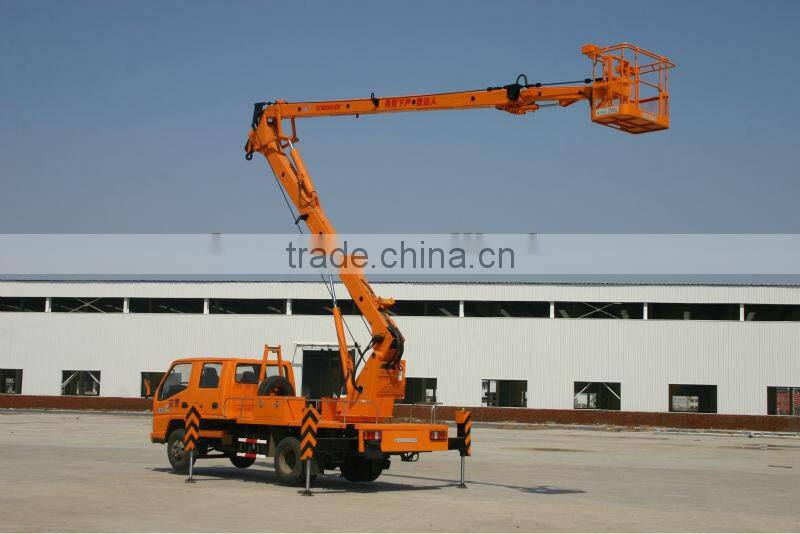

16M Articulated Boom Aerial Working Platform
I Working Condition
Altitude: 0-1000m
Temperature: -25°C--+45°C, environmental relative humidity ≤90%
Allowed working condition: solid, stable land, the vehicle should be horizontal
Wind force: ≤6 degree (wind speed ≤12.5m/s)
II Working Range
KFM5066JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
Main Parameters

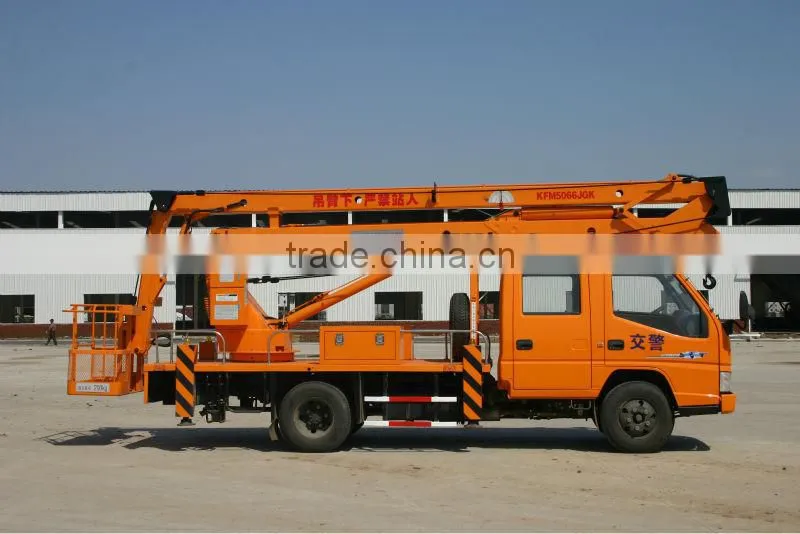

Bulletin No. | KFM5066JGK | |
Type | GKZ-16J | |
External dimensions(mm) | 7050×1965×2995 | |
Structure type | Three-section articulated boom | |
Working Cage | Internal size(mm) | 1100×600×1100 |
Rated loading(kg) | 200 (or 2 persons ) | |
Max. Working height(mm) | 16000 | |
Max. Height from ground(mm) | 14300 | |
Max. Working radius(mm) | 8000 | |
Working radius when doing the highest height(mm) | 2700 | |
Working Boom | Max. Raising angle of lower boom(º) | 70 |
Max. Raising angle of upper boom(º) | 70 | |
Max. Raising angle of jib(º) | 90 | |
Boom rack rotation angle(º) | 360 | |
Outrigger | Vertical span(mm) | 3050 |
Horizontal span(mm) | 3600 | |
Traveling of vertical outrigger(mm) | 450 | |
Adjustment | Single adjustable | |
Lifting | Rated lifting weight(kg) | 995 |
Rated lifting height(mm) | 8200 | |
