China Popular Brand Kai Fan Brand 16 Ton Track Cranes

China Popular Brand Kai Fan Brand 16 Ton Track Cranes thumbnail-1
China Popular Brand Kai Fan Brand 16 Ton Track Cranes photo-1
US$ 1 - 1 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
construction
Rated Loading Capacity:
16ton
Contact Supplier Request Quote Chat Now
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application construction
Rated Loading Capacity 16ton
Rated Lifting Moment 588kn.m
Max. Lifting Load 16ton
Max. Lifting Height 38.8m
Span 4.9/5.6
Place of Origin Liaoning, China
Brand Name N.TRAFFIC
Model Number QY16G
Certification ISO;CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

QY16G truck crane 1.Max. rated lifting capacity: 16000kg 2.Max. load moment of basic boom: 588 kn.m

 Cheap price Hot sale N.TRAFFIC QY16G Track CranesFOR Sale
QY16G truck crane 1.Max. rated lifting capacity: 16000kg
2.Max. load moment of basic boom: 588 kn.m

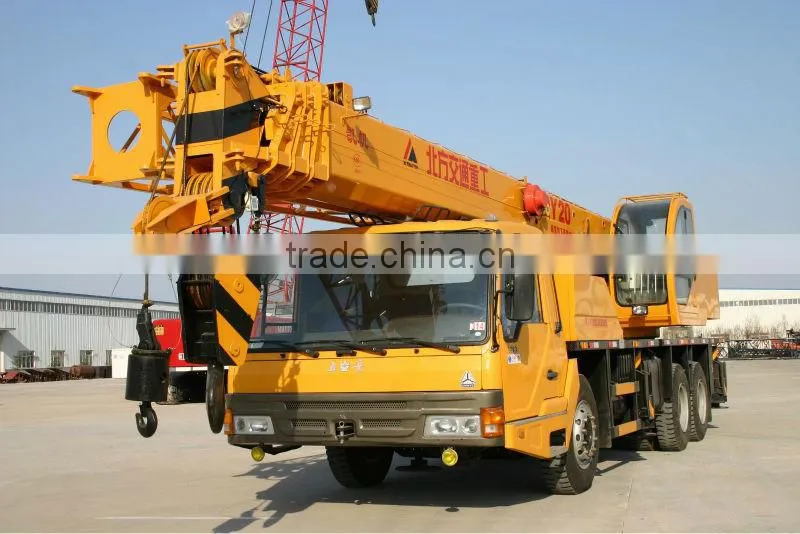

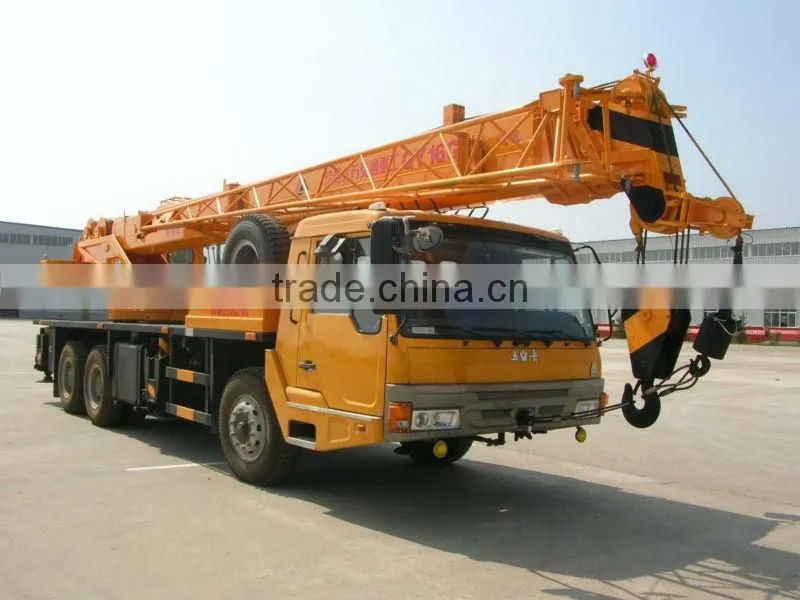

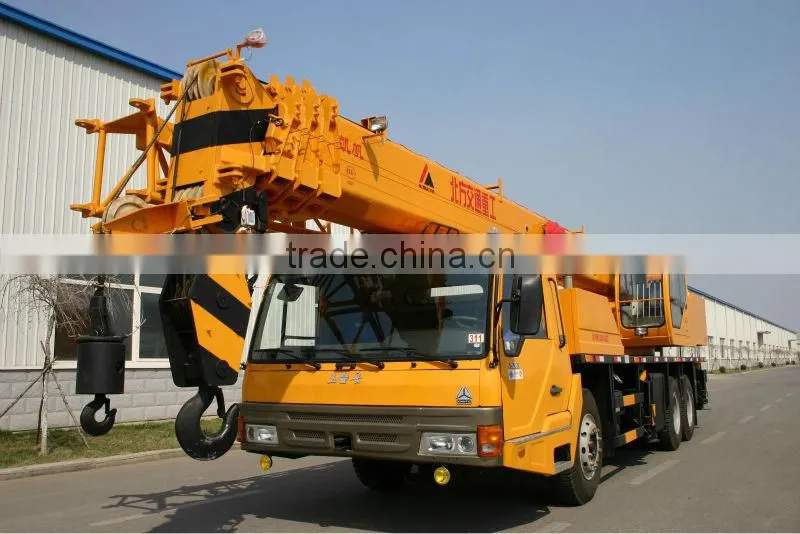

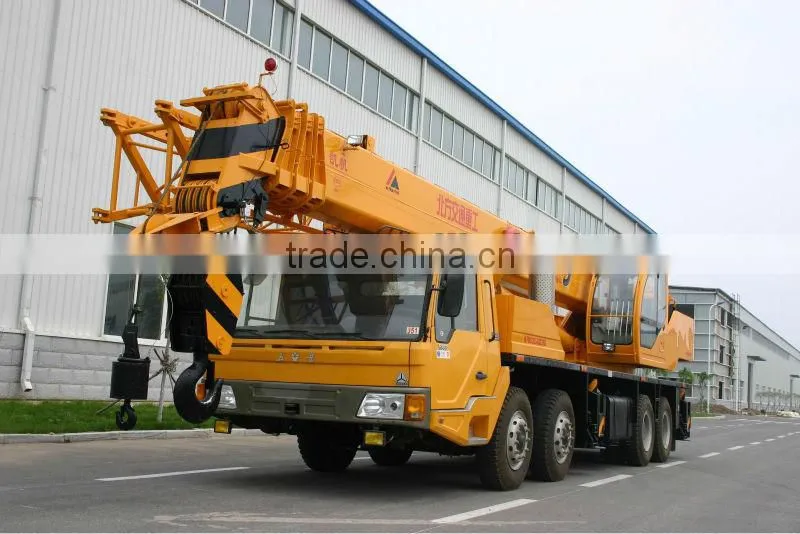

“KAI FAN” Brand KFM5253JQZ16G(QY16G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 16t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

Parameters

Items

Unit

Value

Working Performance Parameters

Max. Rated lifting weight

kg

16000

Max. Rated lifting force

Kn.m

588

Max. Height of the basic boom

m

10.4

Max. Height of the main boom

m

31.4

Max. Height of the boom and jib

m

38.8



Max. Speed of the single rope

m/min

120

Working Speed

Extension time of the lifting boom

s

80

Lifting time of the lifting boom

s

53

Turning speed

r/min

0~2.5

Traveling Parameters

Max. Traveling speed

km/h

75



Max. Grade ability

%

26

Min. Turning radius

m

11

Min. Ground clearance

mm

270

Approaching angle

°

16

Departure angle

°

12





Weight Parameters

Proper weight in traveling mood (the whole weight)

kg

24960

Load of the front axle

kg

6960

Load of the middle-rear axle

kg

18000

The whole weight

kg

24765















 Dimension Parameters

External dimension(length×width×height)

mm

12130×2494×3330



Vertical span of outrigger

m

4.9

Horizontal span of outrigger

m

5.6

Length of main boom

m

9.8~30.5

Elevation of main boom

°

-2~80

Length of vice boom

m

7.5



Chassis

Model

—

TAZ5253J

Engine model

—

WP6-240

Rated power/speed

kw/(r/min)

176/2500

Max. Torque/rotate speed

n.m/(r/min)

800/1300~1600
