Features about fibre cutting machine
1.Old Cloth Cutter is with integral cast steel knife rest.
2.Configuration of high strength tungsten carbide cutting tools,Fully highlight the rigidity and strength of the machine.
3.The drive mechanism using Low speed high torque motor and the flywheel of balancing.
The transmission mechanism use MB automatic transmission.
4.The installation for each components based on easy operation and maintance.
The combination of high durability, reliability, security. Which ensure your high
efficiency production .
Application for fibre cutting machine
Old Cloth Cutter is professional used for cutting waste cotton,waste hemp,silk,chemical fiber,waste clothes,etc.
And recycle usage.Widely application in waste recycling,cycle cotton process,used cycle soft toys,etc.
Specification:
| Model | Form a complete set of power | Design production | Input with | The output with | The thickness of the shear |
| HY600 | 3+1.1 kw | 100-200kg/h | 1400x350mm | 1400x350mm | 1-50mm |
| HY650 | 3+1.1+7.5 kw | 100-200kg/h | 1400x350mm | Special grinding | 1-50mm |
HY800A | 4+1.5 kw | 100-300kg/h | 1400x350mm | 1400x350mm | 1-50mm |
| HY800B | 4+1.5 kw | 200-400kg/h | 1400x350mm | 1400x350mm | 1-50mm |
| HY900A | 5.5+1.5 kw | 100-400kg/h | 1400x350mm | 1400x350mm | 1-50mm |
| HY900B | 5.5+1.5 kw | 200-600kg/h | 1400x350mm | 1400x350mm | 1-50mm |
| HY950 | 11+1.5+3 kw | 100-800kg/h | 1400x350mm | Induced draft fan | 1-50mm |
| HY1200 | 15+5.5+2.2 kw | 500-1500kg/h | 1400x350mm | Induced draft fan | 1-80mm |
| HY1600 | 11+2.2+0.75 kw | 1000-2000kg/h | 2800x700mm | 2800x700mm | 1-80mm |
| HY2000 | 11+3+1.5 kw | 1000-3000kg/h | 3000x800mm | 2800x680mm | 1-100mm |

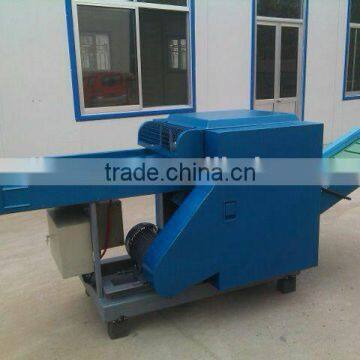

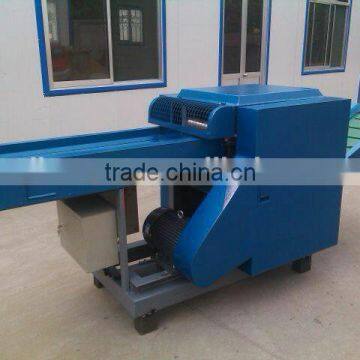

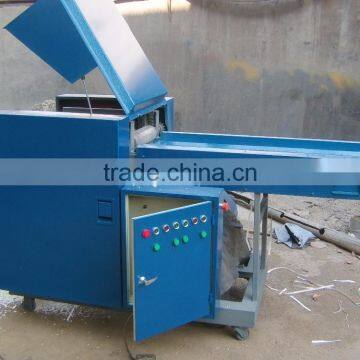

Product photo:
Grinding process:
Crushing effect:
