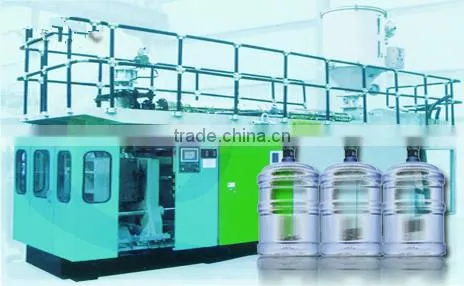

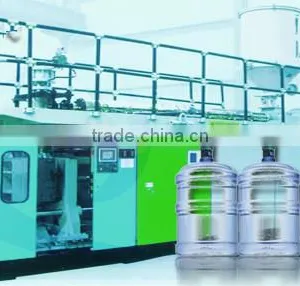

extrusion bottle blow moulding machine
- 1 Set / Sets per Month
- shanghai
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PVC |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Shanghai, China |
Brand Name: | JOYSUN | Model Number: | JKBA | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
extrusion bottle blow moulding machine1. PLC intelligent control system
2. imported proportional valve
extrusion bottle blow moulding machine
JKBA Extrusion blow molding machine is used to produce all kinds of plastic bottles such as PVC, PE, PP, barrels and other containers in regular shapes. Our extrusion blow molding machines are characterized by high productivity, energy efficiency, good molding quality and pollution-free quality.
Flow Chart
Characteristics:
1. PLC+touch screen, making the operation easy. Automatic malfunction alarm with selfdiagnosis, making the malfunction clear at a glance.
2. Accumulator die head whose runner is made by high-quality mitrede alloy steel with morrorsurface treatment, material and colour qucik reload.
3. Unique "linear guide" to the clamping structure to ensure mold-lock uniform, knit line smoother.
4. Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption.
Configuration:
Siemens PLC, Italy pneumatic component, international famous electric component.
Parameter:
ITEM | UNIT | JKBA82-25PC | JKBA80-30l | JKBA90-60L |
Max. Product VOLUME | L | 25 | 30 | 60 |
Dry Cycle | pcs/h | 600 | 650 | 500 |
Screw Diameter | mm | 82 | 80 | 90 |
Screw L/D Ratio | L/D | 38 | 25 | 25 |
Screw Drive Power | KW | 30 | 37 | |
Screw Heating Power | 4Φkw | 16.7 | 16 | 21 |
Screw Heating Zone | Zone | 8 | 4 | 4 |
HPDE Output | kg/h | 160 | 100 | 140 |
Oil Pump Power | kw | 11 | 15 | 18.5 |
Clamping Force | kn | 215 | 220 | 350 |
Mold Stroke | mm | 240-620 | 400-830 | 500-1050 |
Max.Mold Size | W*H(mm) | 600*700 | 600*700 | 700*1050 |
Accumulator Capacity | L | 1.85 | 4 | 6.6 |
Max.Die Diameter | mm | 150 | 300 | 350 |
Die Heating Power | 4Φkw | 4.5 | 11.9 | 17 |
No. of Heating Zone | Zone | 4 | 4 | 4 |
Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
Air Consumption | m³/min | 0.4 | 0.8 | 1 |
Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
Water Consumption | L/min | 30 | 60 | 85 |
Machine Size | L*W*H(m) | 6.2*2.3*4.5 | 4.23*2.3*3.5 | 4.75*2.5*3.9 |
Machine Weight | Ton | 11.8 | 11.5 | 12.8 |
ITEM | UNIT | JKBA100-90L | JKBA100-120L | JKBA120-160L |
Max. Product VOLUME | L | 90 | 120 | 160 |
Dry Cycle | pcs/h | 360 | 360 | 300 |
Screw Diameter | mm | 100 | 100 | 120 |
Screw L/D Ratio | L/D | 25 | 28 | 28 |
Screw Drive Power | KW | 45 | 55 | 75 |
Screw Heating Power | 4Φkw | 24 | 24 | 30 |
Screw Heating Zone | Zone | 4 | 4 | 5 |
HPDE Output | kg/h | 180 | 200 | 250 |
Oil Pump Power | kw | 22 | 37 | 45 |
Clamping Force | kn | 500 | 650 | 800 |
Mold Stroke | mm | 550-1250 | 550-1400 | 600-1500 |
Max.Mold Size | W*H(mm) | 800*1000 | 800*1250 | 1100*1500 |
Accumulator Capacity | L | 12 | 14 | 18 |
Max.Die Diameter | mm | 430 | 450 | 520 |
Die Heating Power | 4Φkw | 20 | 21 | 25 |
No. of Heating Zone | Zone | 5 | 5 | 5 |
Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
Air Consumption | m³/min | 1.2 | 1.6 | 1.6 |
Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
Water Consumption | L/min | 100 | 150 | 180 |
Machine Size | L*W*H(m) | 5.4*2.5*4 | 5.4*2.6*4.2 | 5.8*2.6*4.4 |
Machine Weight | Ton | 16 | 19 | 22 |
Machine Picture
Mould Picture
Production
