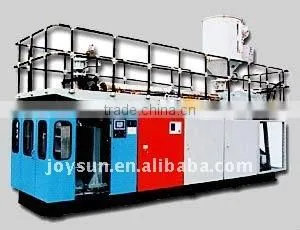

Help CenterPC 5Gallon Extrusion Blow Moulding Machine
Related Products
-
Plastic PC 5 Gallon Extrusion Blow Moulding MachineUS$ 1,000 - 10,000MOQ: 1 Set -
Plastic Bottle Extrusion Production LineUS$ 10,000 - 100,000MOQ: 1 Set
-
One Step Plastic Bottle Extrusion Blow Mould MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Plastic Plate & Pipe Production Line(plastic Production Line,extrusion Machine)US$ 10,000 - 100,000MOQ: 1 Set
-
Extrusion Blow Moulding MachineUS$ 1,000 - 10,000MOQ: 1 Set
Specifications
1.Extrusion blowing machine2. 5 gallon Blow Molding Machine
3. capacity of 70-75BPH, reliable components.
Extrusion Blow Molding Machine, 5 gallon Blow Molding Machine, Extrusion Machine
Characteristics:
1 It adopts a special exhaust type screw for PC material;
2 Extrusion device could be adjusted in four directions: forward/backward, upward/downward;
3 Blow nozzle could be adjusted in six directions: forward/backward, upward/downward, right/left;
4 It adopts MISUBISHI PLC control system, which is made in Japan;
5 The thickness control system is selectable, which adopts MOOG30 point hydraulic servo system;
6 Complete safety control system always assure the operator in safe situation.
ITEM |
SPECIFICATION |
||
MODEL |
TDB-25APC |
||
Max. Bottle Volume |
25L |
||
Max. Capacity |
80BPH |
||
|
EXTRUSION UNIT |
Screw Diameter |
mm |
82 |
Screw L/D Ratio |
L/D |
38 |
|
Screw Driving power |
KW |
|
|
Screw Heating Capacity |
KW |
16.7 |
|
Heating zone |
ZONE |
8 |
|
Plasticizing Capacity |
kg/h |
160PC |
|
Oil Pump Driving Power |
KW |
45 |
|
|
MOLD UNIT |
Clamping Force |
KN |
215 |
Mold Stroke |
mm |
350-780 |
|
Max. Size of Mold (WXH) |
mm |
550*650 |
|
DIE HEAD |
Capacity |
L |
1.9 |
Max. Die Diameter |
mm |
150 |
|
Die Heat Capacity |
KW |
4.1 |
|
Heating Zone |
ZONE |
4 |
|
OTHER |
Blowing Pressure |
Mpa |
1.2 |
Air Consumption |
M3/MIN |
1 |
|
Water Consumption |
L/MIN |
150 |
|
MACHINE |
Dimension (LXWXH) |
m |
6.3×2.3×4.55 |
Weight |
TON |
11.8 |
|
