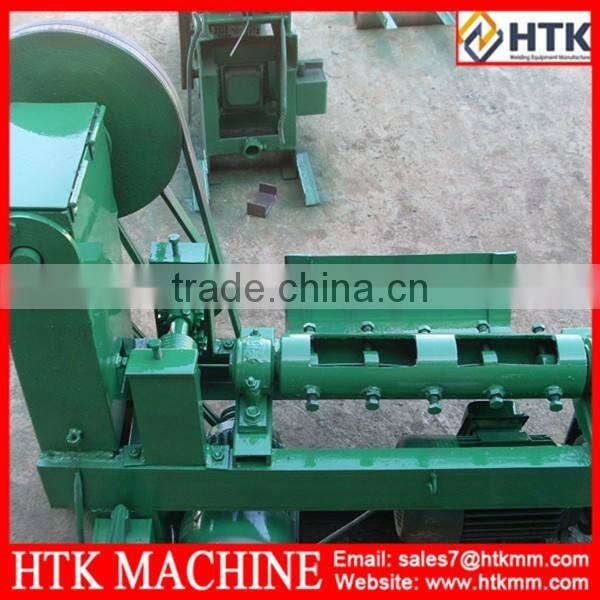

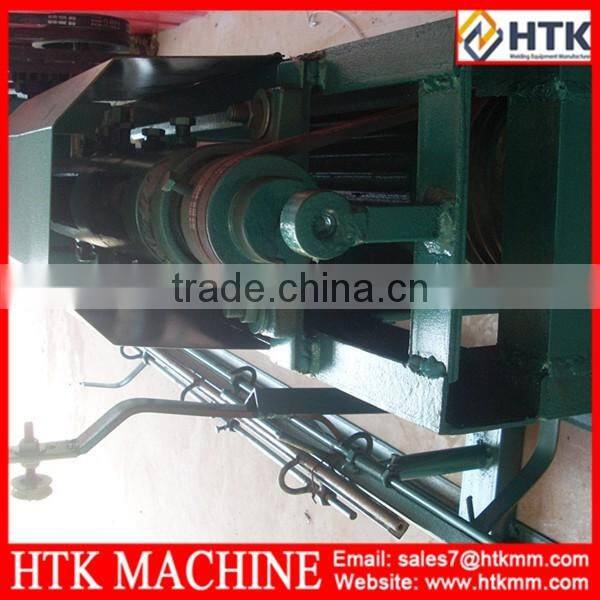

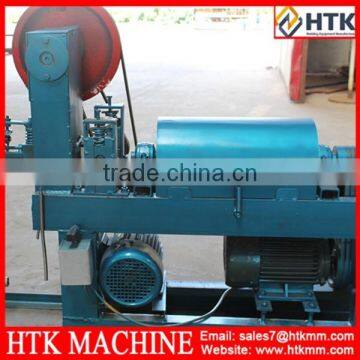

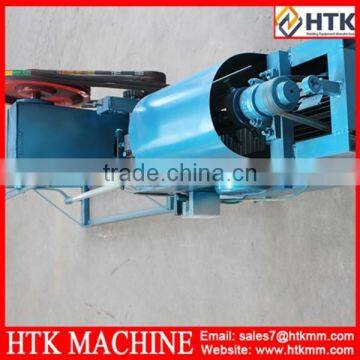

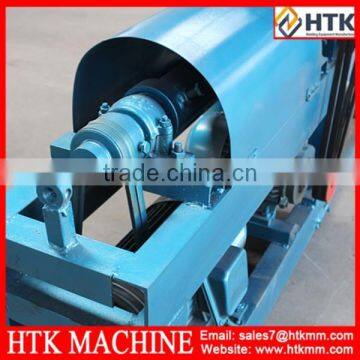

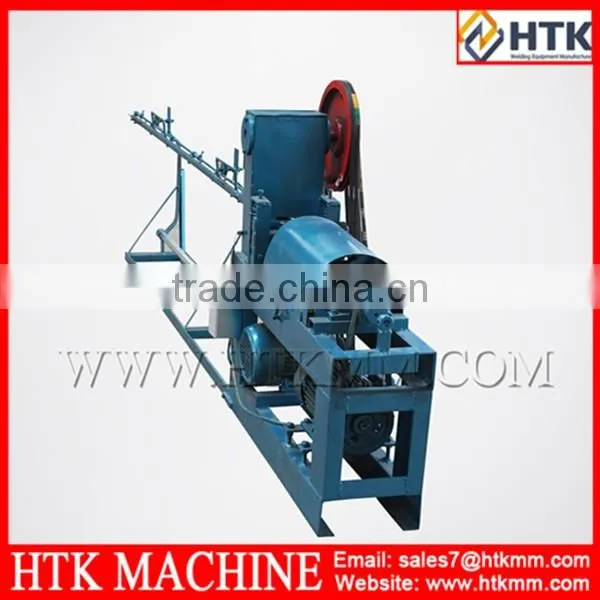

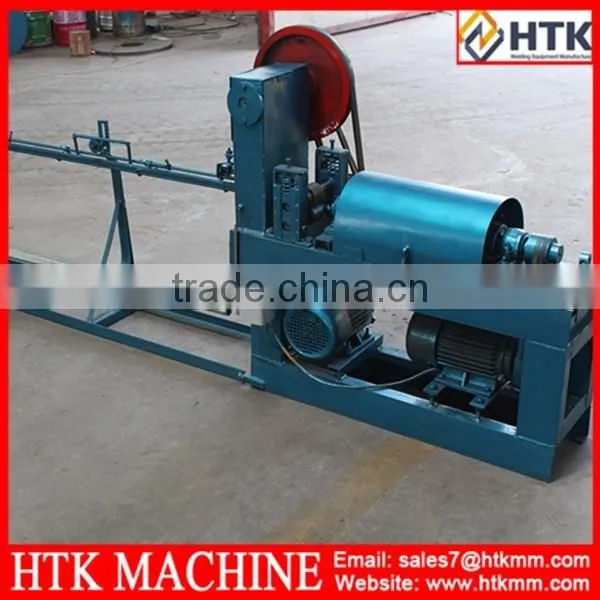

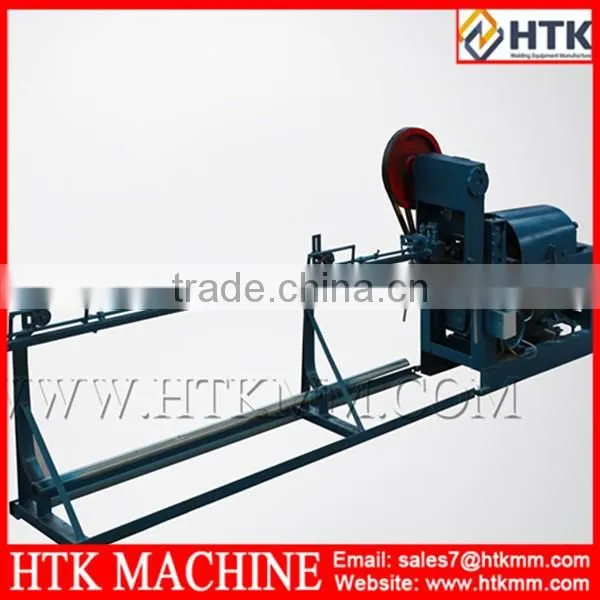

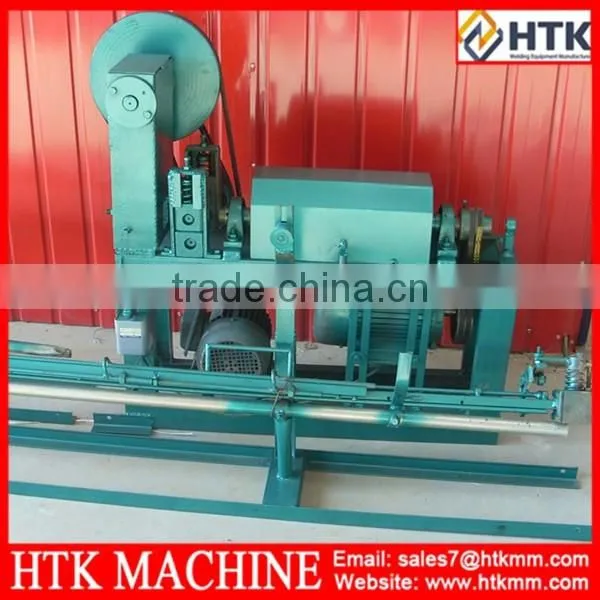

Automatic steel wire straightening and cutting machine with best price
1.automatic steel wire straightening and cutting machine can straighten and cut stainless steel wire, aluminum wire,cold-drawing wire and steel wire.
2.The wire diameter of this kind of machine is from 1.5 to 12mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire,and steel wire with plastics.
4.This machine has many advantages,such as neat cutting mouth, less error and good functions.
Quality Control:
We always pay more attention to the quality of our machine,Standard quality control system and team are responsible to insure the high quality in every process.We are devoted to producing a more efficiency and safer machines.
Features:
1.Different lengths and numbers are remembered by the machine;
2.Hydraulic cut off,high accuracy but low noise;
3.Covering Less Space,convenient to move and install ;
4.Running steadily,easy to maintain,exchange parts are available;
5.Alter number and length without shutting;
6.Number of machines can be operated by one worker at a time.
Usage of wire straightening cutting machine:
The wire cutting machine is used to straightening galvanized wire or re-bar,and then cut it into the needed length.It can do a prepare work for the wire mesh welding machine.So it is widely accepted to the factory who is dealing wire wires and wire mesh.Also widely used in construction area.
Technical Parameters:
| Model | HTK1.5-3.5 | HTK2-5 | HTK3-6 | HTK4-8 | HTK4-12 | HTK5-12 |
| Wire diameter | 1.5-3.5mm | 2.0-5.0mm | 3.0-6.0mm | 4.0-8.0mm | 4.0-12.0mm | 5.0-12.0mm |
| Cutting length | 30-2000mm | 30-6000m | 30-6000mm | 200-6000mm | 200-6000mm | 600-12000mm |
| Cut error | +1mm | +1mm | +1mm | +1mm | +1mm | +10mm |
| Speed | 25m/min | 30m/min | 30m/min | 35m/min | 30m/min | 45m/min |
| Straight motor | 1.5kw | 1.5kw | 2.2kw | 4.0kw | 7.5kw | 11kw |
| Cut motor | 0.75kw | 0.75kw | 0.75kw | 3.0kw | 4.0kw |
4.0kw |
| Overall size | 1.7×0.4×0.8m | 1.2×0.4×0.9m | 1.2×0.5×1.1m | 7.3×0.6×1.2m | 8×0.8×1.3m | 2.1×0.7×1.3m |
| Weight | 130kg | 150kg | 180kg | 650kg | 1000kg | 1200kg |
1. Packed in wooden case, or customization.
2. FOB Tianjin or other China main port by sea.
3. FOB Beijing airport or China main airport by air.
1.We have expert quality control team,can ensure the machine quality before send customer's machine,achieve to machine work perfect out from the box.
2.We will arrange expert service engineer for you when your machine arrive your home town,and in any time you can contact our engineer , include our holiday,he will service 24 hours for you .
3.We ensure 24 hours to solve your machine or have a clear reply if your machine have problem or installation hard.
We could provide series of construction machines.Please feel free to contact me for details.
