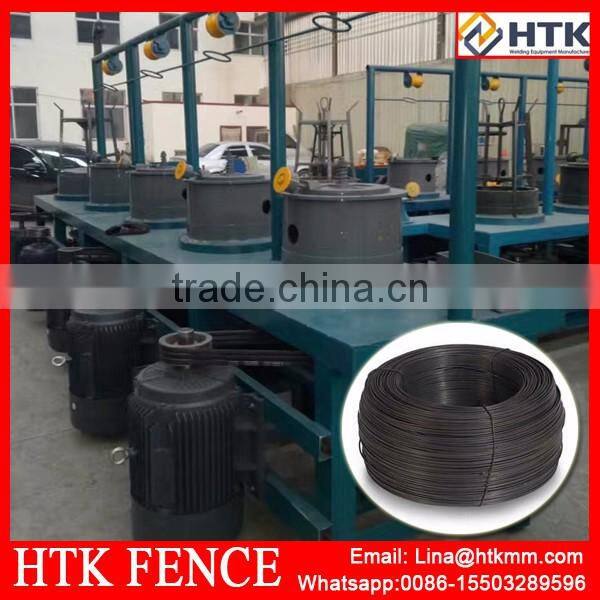

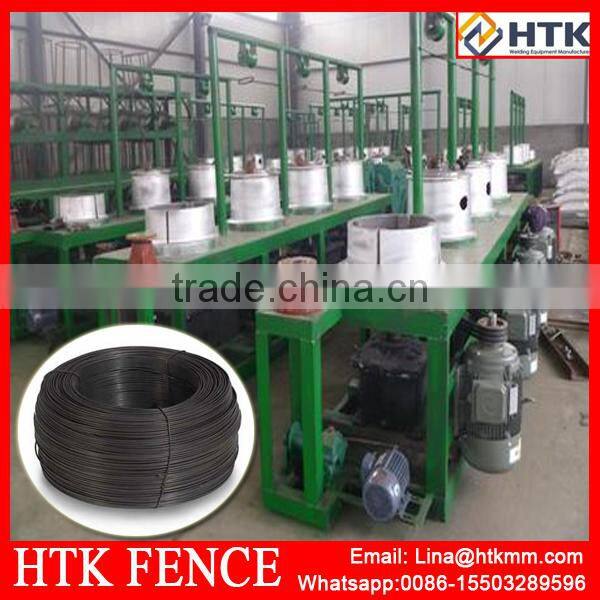

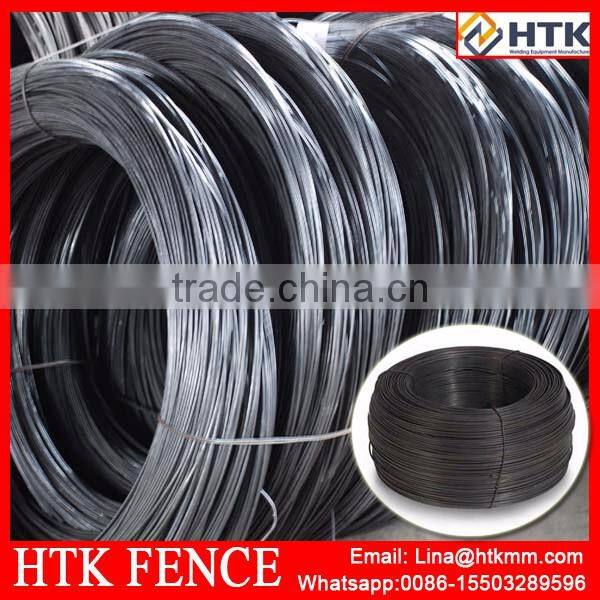

Straight Type Wire Drawing Machine

Straight Type Wire Drawing Machine photo-1
Straight Type Wire Drawing Machine photo-2

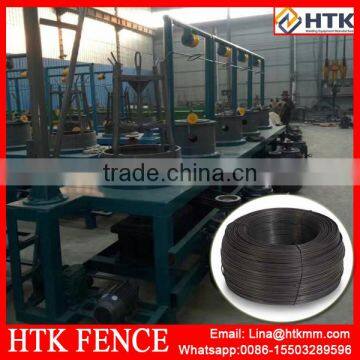

Straight Type Wire Drawing Machine photo-3
Straight Type Wire Drawing Machine photo-4
Straight Type Wire Drawing Machine photo-5

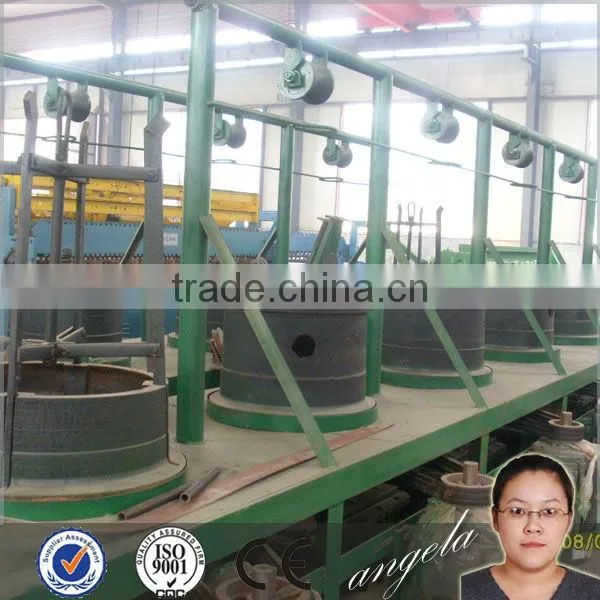

Straight Type Wire Drawing Machine photo-6
US$ 9,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HTK
Model Number:
wire drawing machine
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name HTK
Model Number wire drawing machine
After-sales Service Provided Engineers available to service machinery overseas

Straight Type Wire Drawing Machine

 Straight Type Wire Drawing Machine



Wire drawing Machine are capable of drawing rod wires of high-,medium-,low-carbon steel, copper, aluminium, ect.and appliable to manufacturing industries such as wood screw, nail, conducting wire rope for electrician use, spring,etc. With electrical control, this kind of machine is safe in operation, low in noise, and high in efficiency. The operation is simple and convenient.



Technical Parameters:

ITEM

UNIT

8/80

10/560

10/550

10/450

Capstan dia

mm

600

560

550

450

Material strenght

Mpa

1150

1150

900

1300

Max incoming dia

mm

8-6

6.5

6.5

3.6

Min outgoing dia

mm

3-2

1.8

1.8

1.1

Total compressibility

%

85

92.33

92.33

90.7

Max average compressibility

%

25

25

25

21

Max line speed

m/min

300

400

400

400

Single motor power

kw

37-30

30-18.5

22-15

18.5-7.5

weight

kg

3000

2500

2200

2000

Domenions

mm

2000*1200*2600

1700*1100*2400

1520*820*2300

1520*820*2200

Straight Type Wire Drawing MachineStraight Type Wire Drawing MachineStraight Type Wire Drawing Machine

Guarantee and After-sale Service:

1.Warranty: One Year.

2.Enough spare parts of machines could be supplied.

3.All machines were tested and adjusted before delivery.

4.Engineers available to service machinery overseas: Worker-training, installation.etc.

5.24 hours technical support by e-mail or calling service.

Straight Type Wire Drawing Machine
