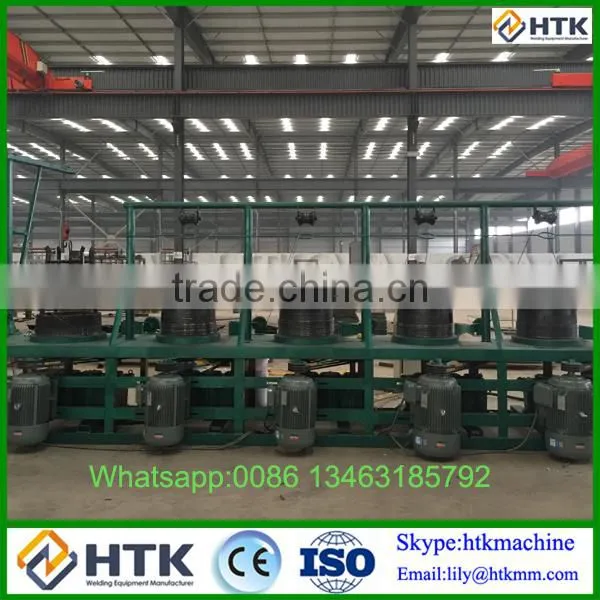

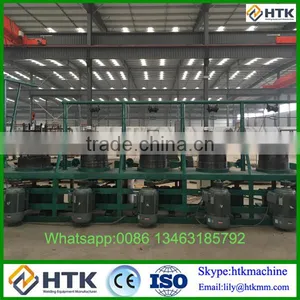

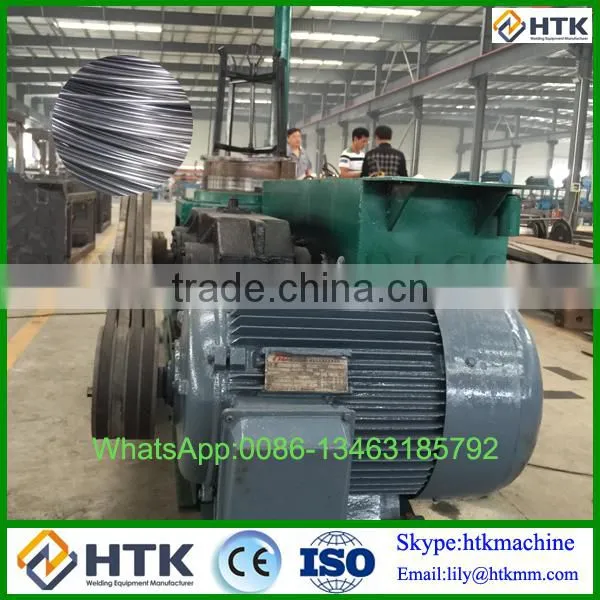

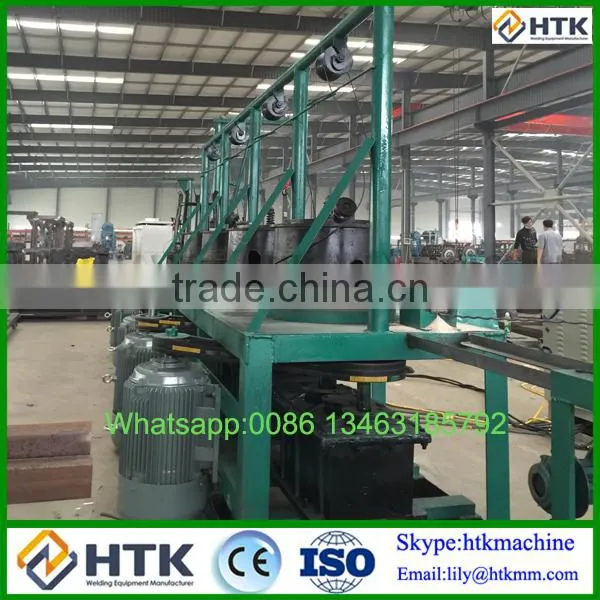

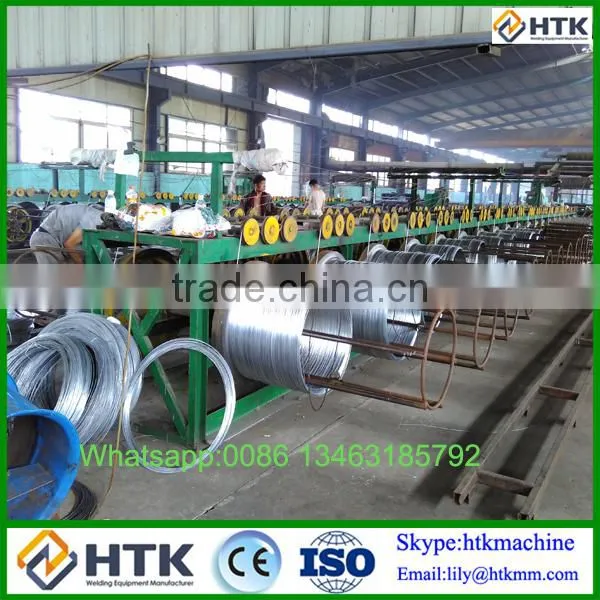

Wire Drawing Machine Price (Water Tank Type)/Steel Wire Making Machine
The water tank wire drawing machine is used to draw the low carbon, medium carbon, high carbon wire, etc.
Technical parameter:
Type |
LT2-17/280 |
LT1-11/350 |
LT1-9/450 |
LT1-12/350 |
LT1-9/560 |
Drum diameter |
280mm |
350mm |
450mm |
350mm |
560mm |
Number of mould |
17pcs |
11pcs |
9pcs |
12pcs |
9pcs |
Input diameter |
2.5-2.0mm |
2.8-2.5mm |
3.4-3mm |
2.2mm |
4.7mm |
Output diameter |
0.9-0.45mm |
1.4-1.2mm |
1.8-1.6mm |
0.7mm |
1.6mm |
Speed (m/min) |
500-650 |
160-350 |
160-300 |
250-400 |
280-300 |
Motor |
22-30kw |
30-45kw |
37-45kw |
15-18.5kw |
110kw |
Dimension (mm) |
3000*1300*1100 |
2400*1400*1200 |
3000*1500*1200 |
2400*1100*1100 |
3500*1500*1200 |
Weight |
4200kg |
3300kg |
4000kg |
1800kg |
4000kg |
One 20ft container/Set
Package: Stretch Film or Pallet
Main Farm Fence Wire Machinery: 1 Unit
Coil Holder: Several Units
Tool Cabinet: 1 Unit
Spare Parts: Several Units
Payment:30% TT for advance payment, 70% TT after the copy of B/L.
1.Farm Fence Wire Machinery Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers available to service machinery overseas: Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
Our Factory:HEBEI HTK WELDING EQUIPMENT CO.,LTD.
We have 3 senior engineers,105senior technicians, more than 100 employees
- Our products: Field Fence and Farm Fence Wire Machine, Welded Wire Mesh Machine
- Our certifications: ISO 9001:2000, BV certification
- Our Main Market:South Africa, Mongolia, Asia, Dubai
Advantage of HTK Factory:
- We have professional engineer supervision
- The price preferential benefit
- Product quality assurance
- High production efficiency
- With credibility and protection
- Can visit the factory in person
- Good after sales service
- Business model: Factory direct
MOQ: 1 Set Farm Fence Wire Machinery.
Welcome to visit 15 years old factory!!!
