High Quality Good Price Water Tank Copper Wire Drawing Machine
- 20 Set / Sets per Month
- Tianjin
- T/T L/C Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | HTK-2400 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

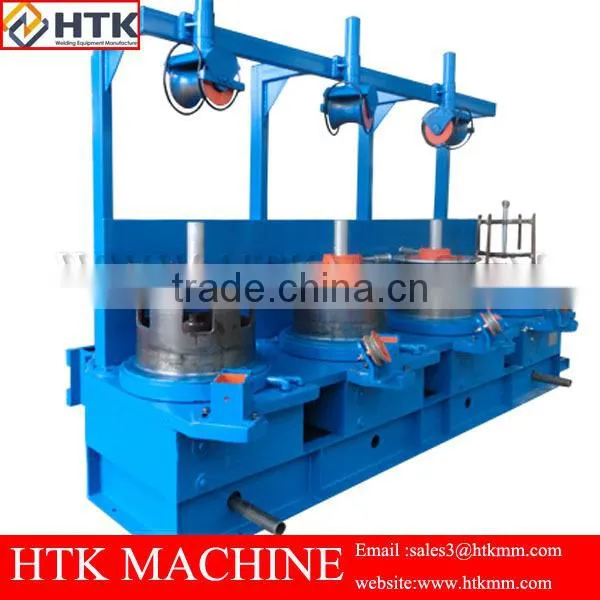

High Quality Good Price Water Tank Copper Wire Drawing Machine
The water tank wire drawing machine is used to draw the low carbon, medium carbon, high carbon wire, etc.
Technical parameter:
Type | LT2-17/280 | LT1-11/350 | LT1-9/450 | LT1-12/350 | LT1-9/560 |
Drum diameter | 280mm | 350mm | 450mm | 350mm | 560mm |
Number of mould | 17pcs | 11pcs | 9pcs | 12pcs | 9pcs |
Input diameter | 2.5-2.0mm | 2.8-2.5mm | 3.4-3mm | 2.2mm | 4.7mm |
Output diameter | 0.9-0.45mm | 1.4-1.2mm | 1.8-1.6mm | 0.7mm | 1.6mm |
Speed (m/min) | 500-650 | 160-350 | 160-300 | 250-400 | 280-300 |
Motor | 22-30kw | 30-45kw | 37-45kw | 15-18.5kw | 110kw |
Dimension (mm) | 3000*1300*1100 | 2400*1400*1200 | 3000*1500*1200 | 2400*1100*1100 | 3500*1500*1200 |
Weight | 4200kg | 3300kg | 4000kg | 1800kg | 4000kg |
One 20ft container/Set
Package: Stretch Film or Pallet
Main Farm Fence Wire Machinery: 1 Unit
Coil Holder: Several Units
Tool Cabinet: 1 Unit
Spare Parts: Several Units
Payment:30% TT for advance payment, 70% TT after the copy of B/L.
1.Farm Fence Wire Machinery Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers available to service machinery overseas: Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.

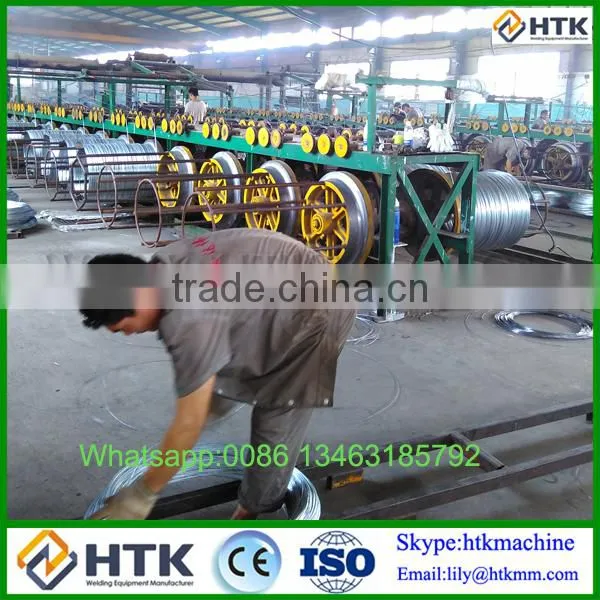

Our Factory:HEBEI HTK WELDING EQUIPMENT CO.,LTD.
We have 3 senior engineers,105senior technicians, more than 100 employees
- Our products: Field Fence and Farm Fence Wire Machine, Welded Wire Mesh Machine
- Our certifications: ISO 9001:2000, BV certification
- Our Main Market:South Africa, Mongolia, Asia, Dubai
Advantage of HTK Factory:
- We have professional engineer supervision
- The price preferential benefit
- Product quality assurance
- High production efficiency
- With credibility and protection
- Can visit the factory in person
- Good after sales service
- Business model: Factory direct
MOQ: 1 Set Farm Fence Wire Machinery.
Welcome to visit 15 years old factory!!!
