Home > Products > Welded Wire Mesh Panel Machine > HTK welded wire mesh machine
HTK welded wire mesh machine
- 10 Set / Sets per Month
- Tianjin
- T/T Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | DNW-1 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

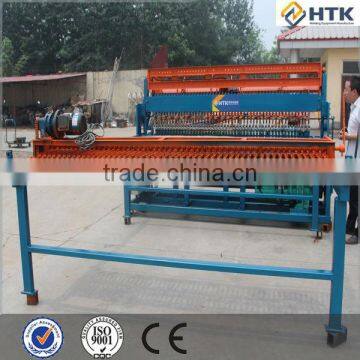

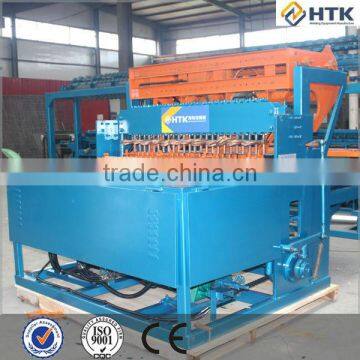

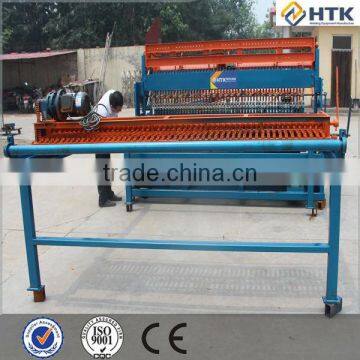

China Factory (1.4-2.3mm)Automatic Wire Mesh Panel Welded Production Equipment
China Factory High Frequency (1.4-2.3mm) Automatic Wire Mesh Panel Welded Production Equipment
Machine Description
1.The machine was synchronised with power electronic technology.
2.Mesh welding and welding time were controlled by PLC.
3.Weft and warp wire are pulled out from the whirlwind and the net was pulled with a flexible rod and grid position device.
4.It is easy to operate, only 2 person can complete the operation.
5.The mesh can be in roll or sheet.
Specification
Wire Dia | 1.4-2.3mm | Warp Form | Wire Coil |
Weft Wire Spacing | 50-200mm | Weft Form | Wire Coil |
Warp Spacing | 50-200mm | Rated Voltage | 380V |
Welding Width | 1200mm | Rated Power | 50KVA×2 |
Welding Speed | 55times/min | Overall Dimension | 2.4×2.4×1.4 |
Welding Point | 25 | Weight | 2.2T |
Application
1.enclosure fence, reinforcing mesh for pouring floor, road, etc.
2. used as construction network such as estazolam plate,geothermal net,seedbed net, flower room.
After-sale service
· Engineer can install,test and adjust the machine for you
· 24 hours online after-sale service
· We will train worekers for you
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Wire Nail Making machine | |
Expanded metal machine | |
Wire drawing machine |
Our Factory
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 2 senior engineers,10 senior technicians,more than 100 employees
· Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
· Our certifications: ISO 9001:2000, BV certification
· Our Main Market:South Africa, Mongolia,Asia, Dubai
Advantage of HTK factory
· We have professional engineer supervision
· The price preferential benefit
· Product quality assurance
· High production efficiency
· With credibility and protection
· Can visit the factory in person
· Good after sales service
· Business model: Factory direct
