Automatic Steel Bar Mesh Welding Machine
1.PLC system control
2.ISO BV approved Factory Direct
3.Own Design Inspection Team
Description of Reinforcing Mesh Welding Machine
1.This Reinforcing Mesh Welding Machine adopts synchronous control technique.
2.The separate-control and welding time are composed of PLC program system, to make the operation
more intelligent.
3.Both the time and welding current for each welding transformer can be adjusted individually.
4.Netting system consists of servo motor control, not only improves the accuracy of mesh size, while
ensuring the distance adjustability between the warp and the weft wire.
Technical Parameters:
Reinforcing Wire Mesh Welding Machine/Rebar Mesh Welding Machine
Items | DNW-5 | DNW-5-1 |
Welding Width | 2500mm | 3300mm |
Weft Wire Spacing | 25mm | 25mm |
Warp Wire Spacing | 100-300mm | 100-300mm |
Wire Diameter | 5.0-12mm | 5.0-12mm |
Weft Form | Precut Wire | Precut Wire |
Warp Form | Precut Wire | Precut Wire |
Welding Speed | 25times/min | 25times/min |
Welding Point | 26 | 34 |
Rated Voltage | 380V | 380V |
Rated Power | 180KVA x 13 | 180KVA x 17 |
Overall dimension | 3.2x 6x 2.65 | 2.4x 8x 2.65 |
Length | 11m | 11m |
Note: Special type can be made according to client's requirement.
Auxiliaries: Wire Straightening and Cutting Machine
Spot Welder Butt Welders Air Pimp
Application:The welded mesh can be used in the floor & wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.
Details:
1.Control System: CNC(touch screen)
Power System:electromagnetic brake
2.Machine Cooling Device: Water Colling.
3.Rated Power: 180KVA
4.Adjustable Parts:
Weft Wire Spacing and Warp Wire Spacing;
Grid Size and High Precision, Wire Diameter could be adjusted within the range.
5. Calibration and Commissioning:
Each machine in the factory will be strict calibration and commissioning by our engineers,and all the
debugging working will be done before delivery.
6.Install:
Photos and Video will be offered for your refer.
The machine need not install the anchor bolt, only need to put on the ground of plant,easily to done.
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
| Wire Nail Making machine | |
Expanded metal machine | |
Wire drawing machine |

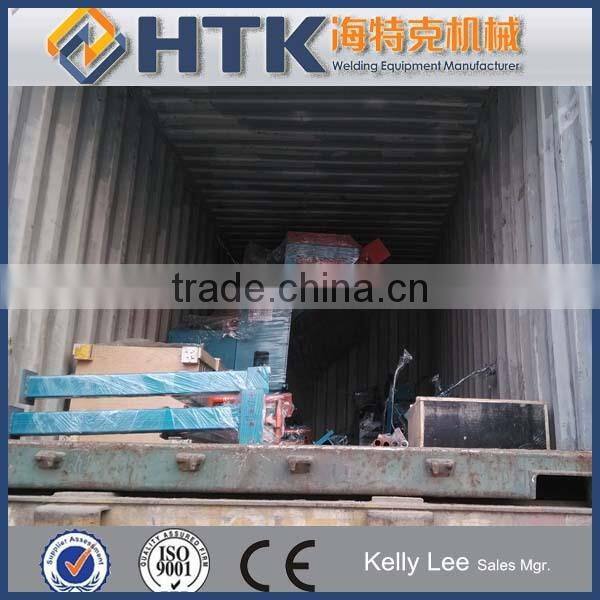

Packaging: with wooden pallets, in plastic film or as per customers’ requirements.
Shipping: within 15-20 days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Welded Wire Mesh Machine
2. Certifications: ISO 9001:2000, BV certification
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by BV.
5)Have our own inspection team to do the quality control.
1.MOQ: One Set.
2.Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight,Western Union.etc.
3. Machine Specifications could be made as per your requirements.
4.Welding Width,Length,the Rated Voltage and Power all could be special customized.
