Home > Products > Razor Barbed Wire Machine > SGS/BV/ISO Automatic Razor Barbed Wire Making Machine
SGS/BV/ISO Automatic Razor Barbed Wire Making Machine
- 10 Set / Sets per Month
- Tianjin
- T/T Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | CYR09 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

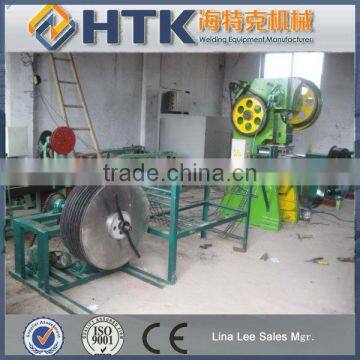

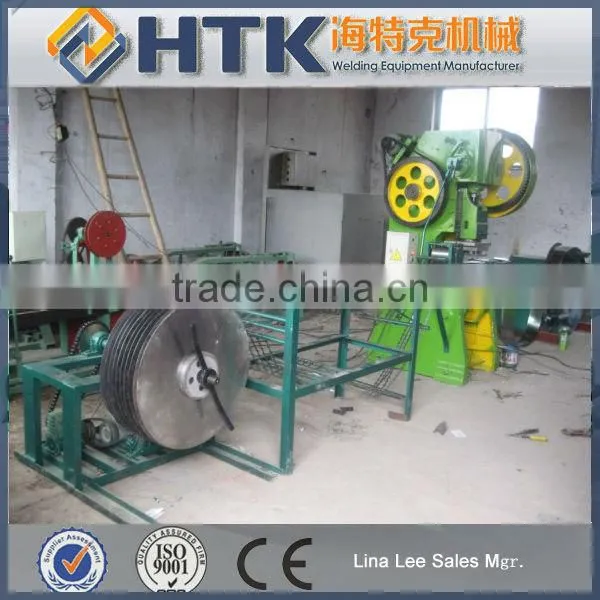

SGS/BV/ISO Automatic Razor Barbed Wire Making Machine
Razor Barbed Wire Machine
Razor Strip Thickness: 0.3-0.6mm
Wire Diameter: 2.5mm
Galvanized or Stainless Steel Sheet and Wire.
Descriptions
1.Razor Wire Machine (with one strip, with five strips, with nine strips)
2.Consists of: 1)main machine which can produce the strip plate
2)coiling machine which can coil the wire into the strip plate.
3.Output: 80kgs/h steel belt
4.High efficiency: light-style, easy to operate, high efficiency, can save 40% raw material.
Razor Wire Materials:
hot dipped galvanized steel sheet and wire, stainless steel sheet and wire.
Razor Barbed Wire Coil Diameter:
450mm; 500mm; 700mm; 980mm,as per your requirements.
Blade Types for Galvanized Razor Wire:
BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65,etc.
Specifications:
Punching Machine (Note: mould can be changed) | ||
Model | Five strip | Nine strip |
Voltage | according to clients voltage | according to clients’ voltage |
Power | 2.2kw | 2.2kw |
Producing speed | 220-280m/h | 220-280m/h |
Pressure | 40Ton | 63Ton |
Weight | 1500kgs | 2200kgs |
Thickness of sheet | 0.5±0.05(mm) | 0.5±0.05(mm) |
Dimension(mm) | 1200*1000*1900 | 1100*1000*2000 |
Coiling Machine | ||
Rated voltage | 380V, 50Hz | |
Power | 1.5kw | |
Producing speed | 80kg/h | |
Weight | 300kgs | |
Diameter of wire | 2.5mm | |
Dimension | 1100mm*750mm*1200mm |
Note: The razor wire Coil diameter could be special customized.
Application:Mainly used in military facilities, communications stations, power distribution stations, border line of prisons, garbage dumps, community protection, schools, factories, farms and other safety isolation.
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Wire Nail Making machine | |
Expanded metal machine | |
Wire drawing machine |
Packaging: with wooden pallets, in plastic film or as per customers’ requirements.
Shipping: within 20 days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Barbed Wire Mesh Machines
2.Certifications: SGS, ISO 9001:2000, BV certifications
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by SGS,BV,ISO.
1.MOQ: One Set.
2.Payment: 30% TT in advance and pay off the balance against the copy of B/L.
Or L/C at sight,Western Union.etc.
3.Machine Specifications could be made as per your requirements.
The Voltage and Power could be made as per your local needs.
4.Razor Barbed Wire Coil Diameter:
450mm; 500mm; 700mm; 980mm,as per your requirements.
