Factory best price concertina razor barbed wire amking machine
Factory best price concertina razor barbed wire making machine consists of razor strip making machine and coil machine. Razor strip making machine cuts steel strip into different razor shapes according to different moulds. Compared with the mould of one strip, the popular mould of 5 or 9 strips saves time, raw materials and cost. The mould of 5 strips saves 20% raw materials. Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Advantages of Factory best price concertina razor barbed wire making machine
easy operation, high efficiency, easy maintenance and material saving
Application of Factory best price concertina razor barbed wire making machine
Razor barbed wire is extensively used for security isolation of military facilities, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
Technical parameter of Factory best price concertina razor barbed wire making machine
Punching machine
Model | Five strip/ Nine strip |
Voltage | 380V, 50Hz or client’s required voltage |
Power | 2.2kw |
Producing speed | 220-280m/h |
Thickness | 0.5±0.05mm |
Pressure | 25ton/ 40ton |
Weight | 1500kg/ 2200Kg |
Dimension | 1100mm×1000mm×2000mm |
Coiling machine
Voltage | 380V, 50Hz,or client’s required voltage |
Power | 1.5kw |
Producing speed | 80Kg/h |
Wire diameter | 2.5mm |
Weight | 300Kg |
Dimension | 1100mm×750mm×1200mm |
Mould type
Mould type | Barb Length | Barb width | Barb spacing |
R1 | 12±1mm | 13±1mm | 26±1mm |
R2 | 12±1mm | 15±1mm | 26±1mm |
R3 | 18±1mm | 15±1mm | 33±1mm |
R4 | 22±1mm | 15±1mm | 34±1mm |
R5 | 28±1mm | 15±1mm | 34±1mm |
R6 | 30±1mm | 18±1mm | 34±1mm |
R7 | 60±1mm | 32±1mm | 96±1mm |
R8 | 65±1mm | 21±1mm | 100±1mm |
Machine photos

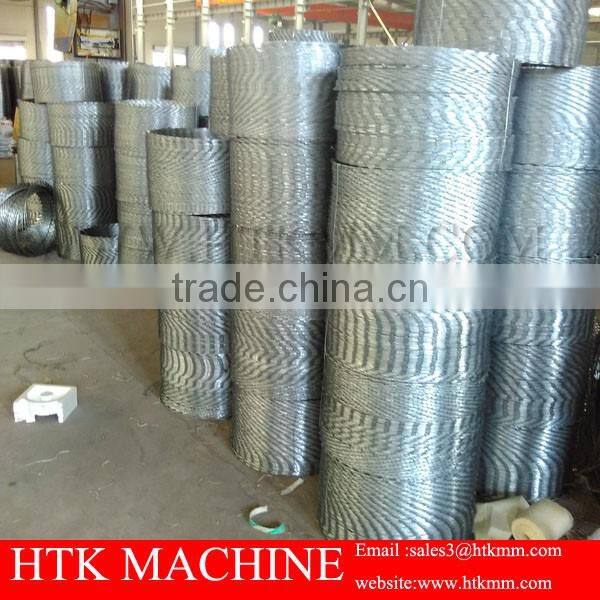

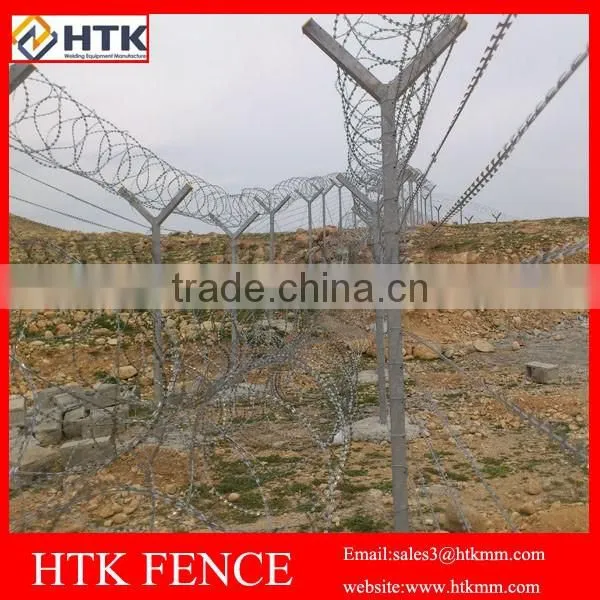

Finished products
Accessories

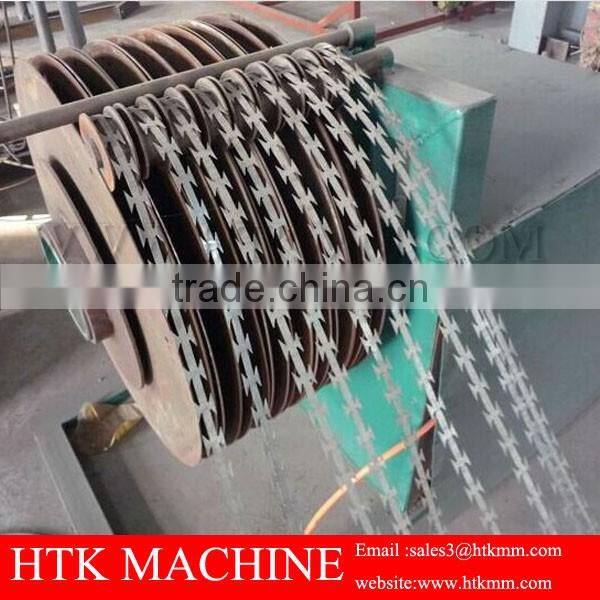

Decoiling Machine

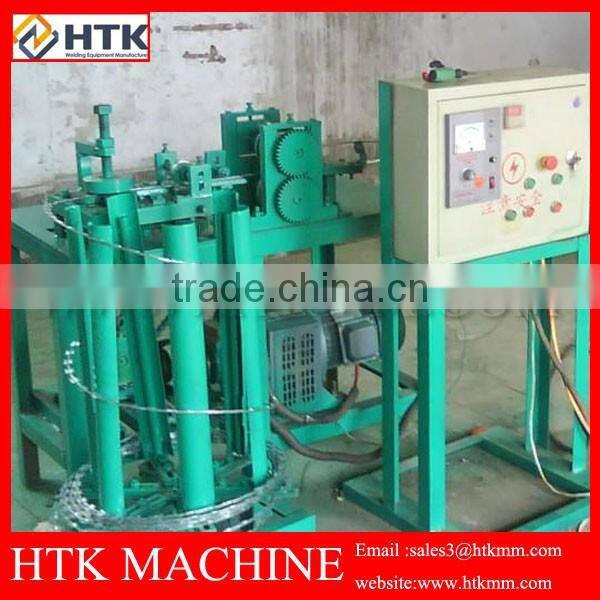

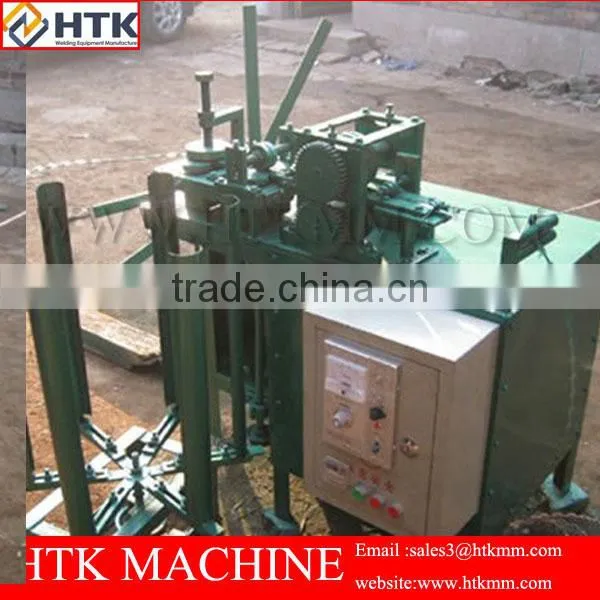

Coiling Machine

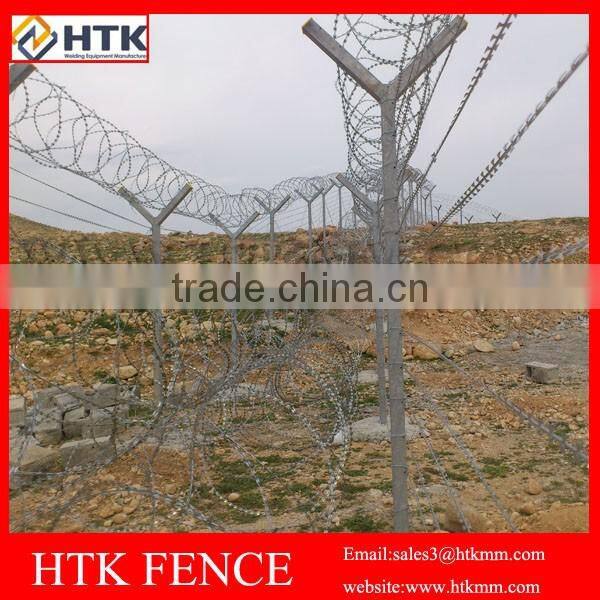

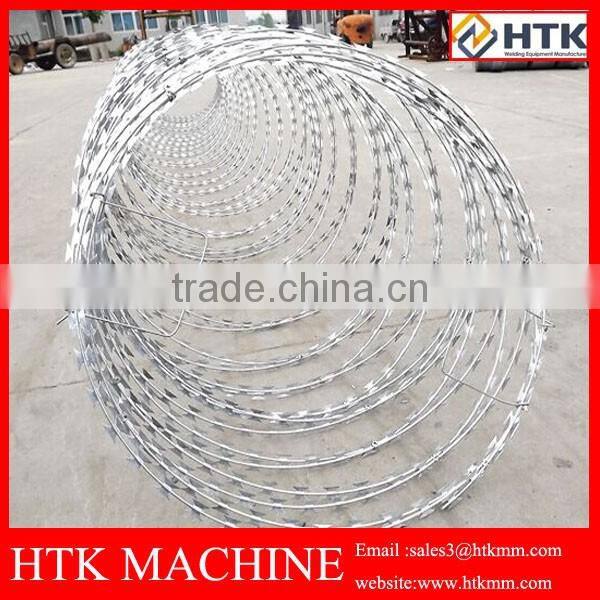

Razor Barbed Wire
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port).
2. Customized machine.
3. OEM support.
4. Fast delivery.
5. Moderate price.
6. Door to Door service or 24-hour email service.
Our engineers are available to install and maintain machine overseas.
