Home > Products > Razor Barbed Wire Machine > best quality hot dip galvanized concertina razor barbed wire making machine
best quality hot dip galvanized concertina razor barbed wire making machine
- 30 Set / Sets per Month
- Tianjin
- T/T Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
- LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | HTK-63T |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
best quality hot dip galvanized concertina razor barbed wire making machine
Introduction about razor wire machine
Razor barbed netting machine, also named as razor barbed wire machine, is specially used to manufacture razor barbed wires.It mainly consists of punching razor strip machine,coiling wire machine and mould.The punching razor strip machine is used as punching the outside razor strip of razor wire .The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire .The mould decide the razor length ,with the space.
Mainly consists of
1. wire pay off stand ,
2. razor strip laying shelf,
3. wire coiling machine
4. razor wire collector.
barbed wire machine data sheet
The whole production line picture
Part One: Punching razor strip machine
Type | 25T punching press (5 strips choice) | 63T punching press (9 strips choice) |
Producing speed | 220-280m/h | 220-280m/h |
Power | 2.2KW | 3.0KW |
Rated Voltage | 380V,50HZ | 380V,50HZ |
Overal Diamension | 1325MMX990MMX21400MM | 1600x1180x2310 |
Weight | 1.9T | 3.2T |
It mainly consists of punching machine ,mould ,decoiler and razor strip collector

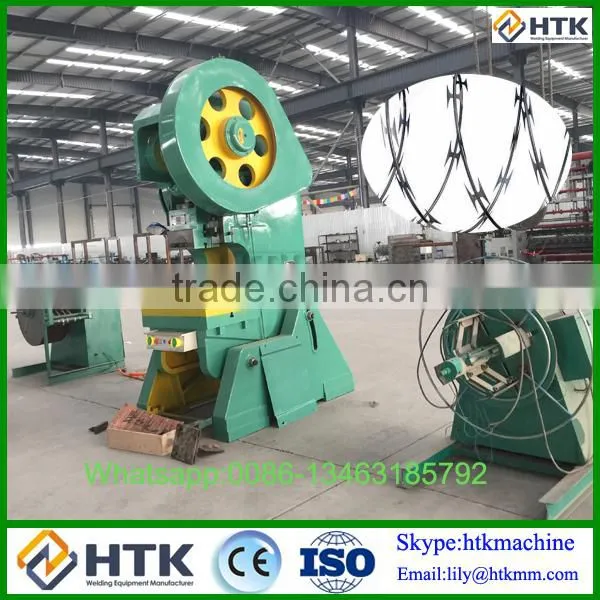

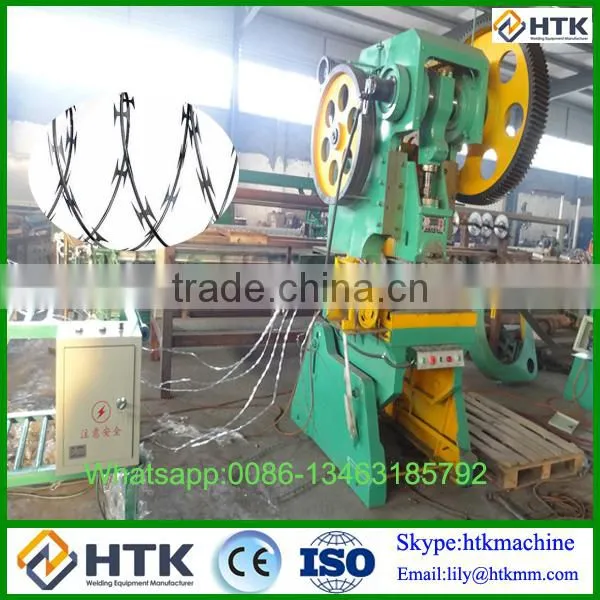

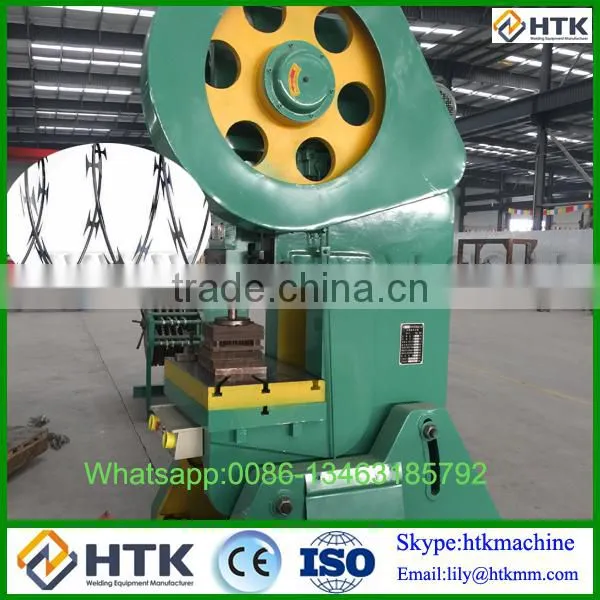

Punching machine and mould
Decoiler

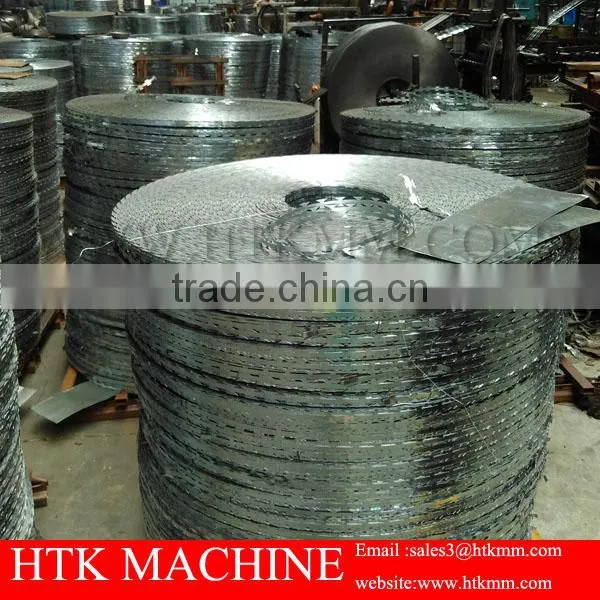

Razor Strip Collector
Part Two: Coiling Wire Machine
Overal Diamension | L*W*H:1100mmx750mmx1200mm |
Rated Voltage | 380V |
Power | 1.5kw |
Producing speed | 80kg/h |
80kg/h | 300kg |
It mainly consists of wire pay off stand ,razor strip laying shelf,wire coiling machine and razor wire collector.
wire pay off stand ,razor strip laying shelf

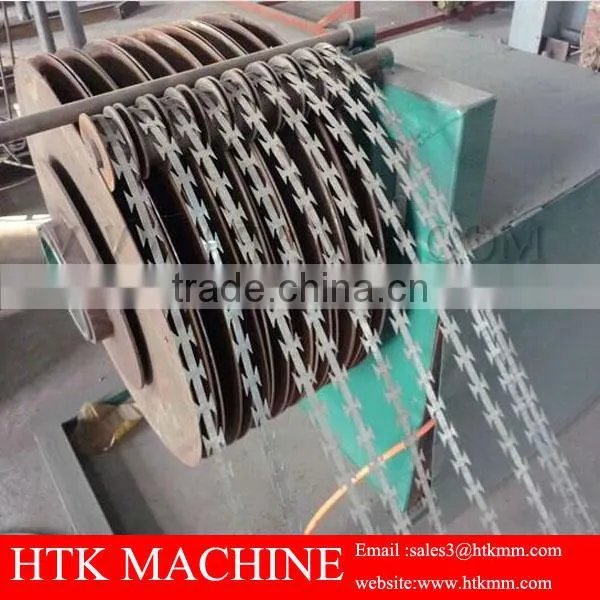

Wire Coiling machine
Razor Wire collector
Finished mesh
Note:Our factory also can produce the special size according to the client’s req uirement
