High Speed razor wire making machine / razor barbed wire machine / concertina razor wire machine
Introduction about razor wire machine
Razor barbed netting machine, also named as razor barbed wire machine, is specially used to manufacture razor barbed wires.It mainly consists of punching razor strip machine,coiling wire machine and mould.The punching razor strip machine is used as punching the outside razor strip of razor wire .The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire .The mould decide the razor length ,with the space.
Finished product usage
The razor wire is mainly used for safe isolation of military facilities, communications stations, power transformer substation, and territorial prison, dump site, community protection, school, factories, and farms.

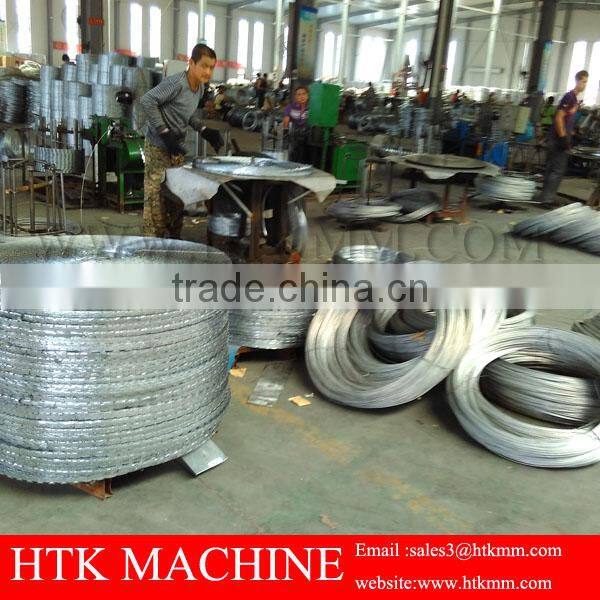

The whole production line picture
Part One: Punching razor strip machine
Type |
25T punching press (5 strips choice) |
63T punching press (9 strips choice) |
Producing speed |
220-280m/h |
220-280m/h |
Power |
2.2KW |
3.0KW |
Rated Voltage |
380V,50HZ |
380V,50HZ |
Overal Diamension |
1325MMX990MMX21400MM |
1600x1180x2310 |
Weight |
1.9T |
3.2T |
It mainly consists of punching machine ,mould ,decoiler and razor strip collector

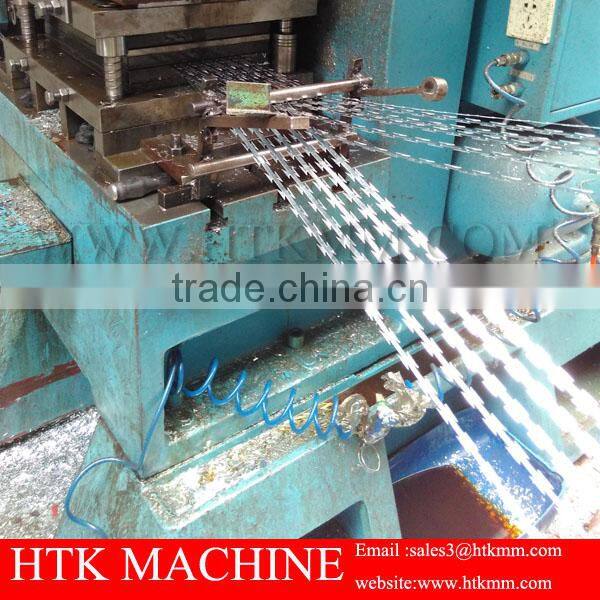

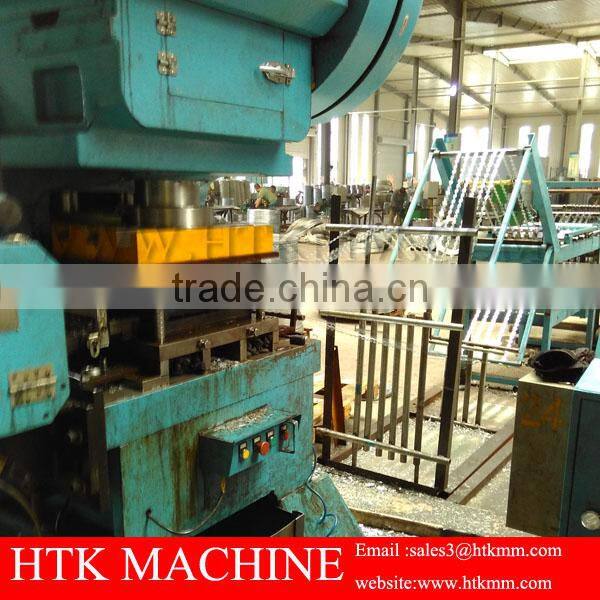

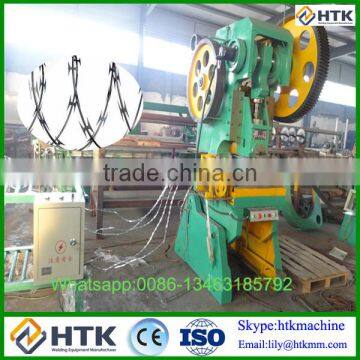

Punching machine and mould

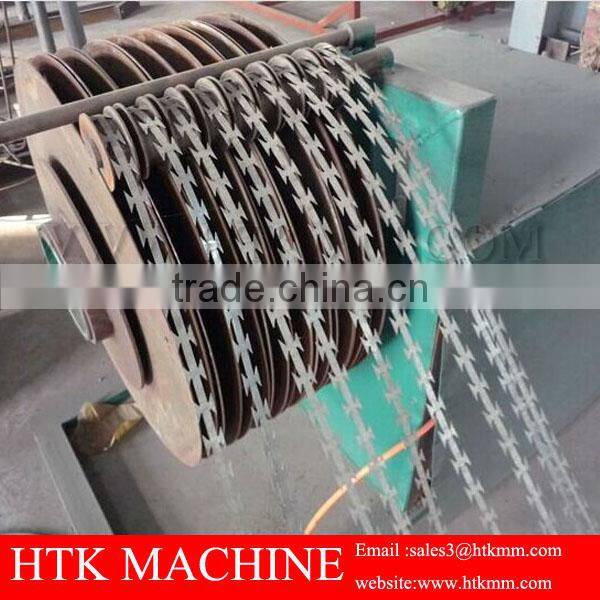

Decoiler

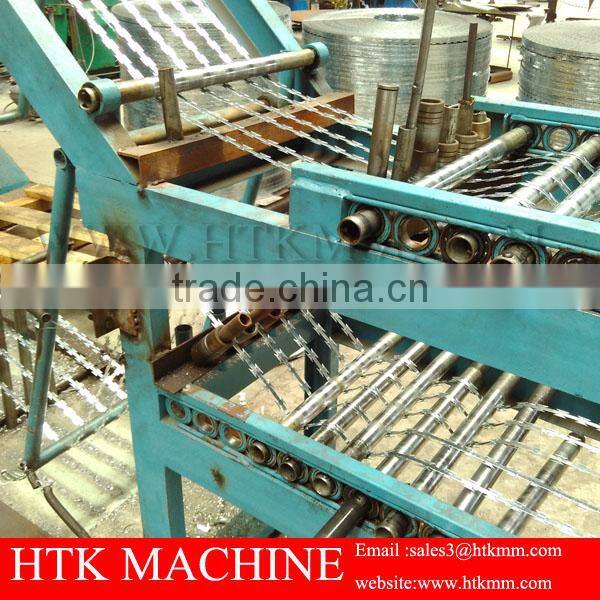

Razor Strip Collector
Part Two: Coiling Wire Machine
Overal Diamension |
L*W*H:1100mmx750mmx1200mm |
Rated Voltage |
380V |
Power |
1.5kw |
Producing speed |
80kg/h |
80kg/h |
300kg |
It mainly consists of wire pay off stand ,razor strip laying shelf,wire coiling machine and razor wire collector.
wire pay off stand ,razor strip laying shelf

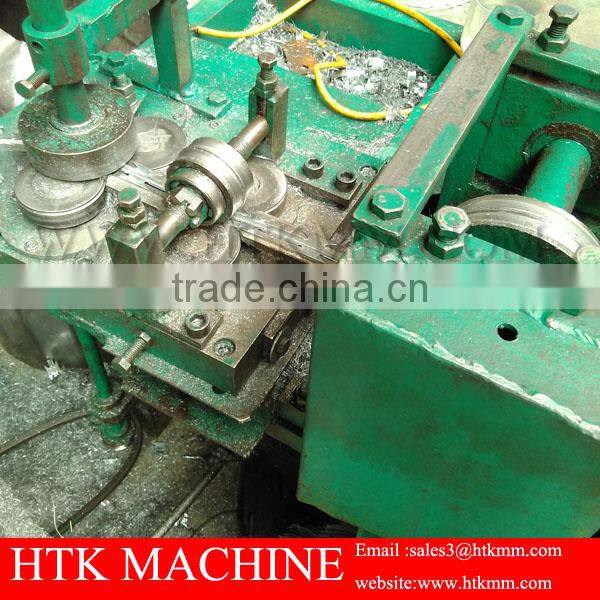

Wire Coiling machine
Razor Wire collector

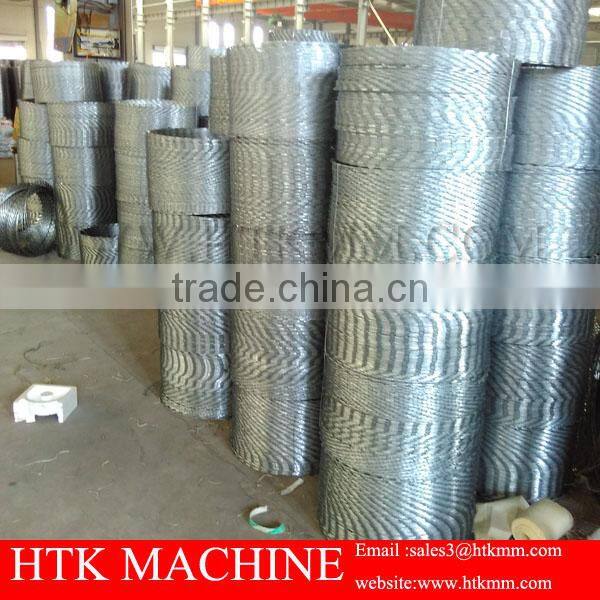

Finished mesh
Note:Our factory also can produce the special size according to the client’s req uirement
