Hebei HTK Gabion Wiremesh Machine

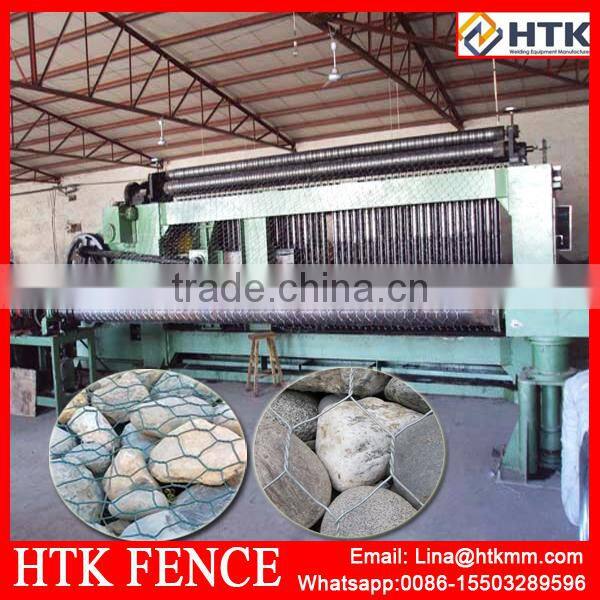

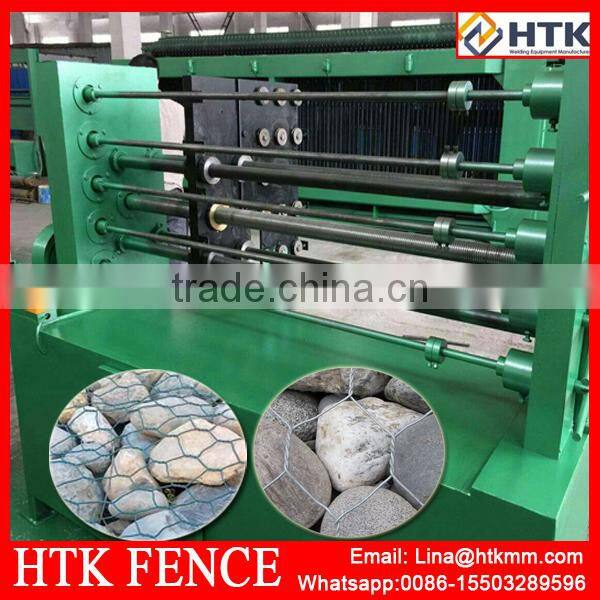

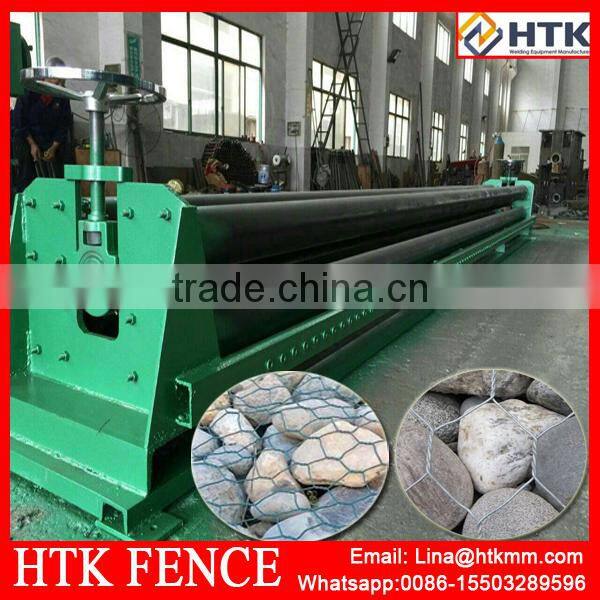

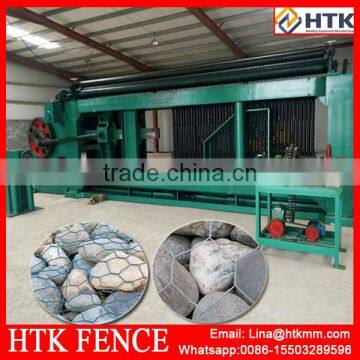

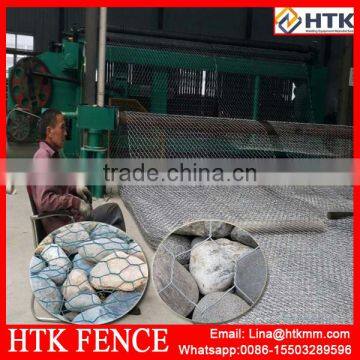

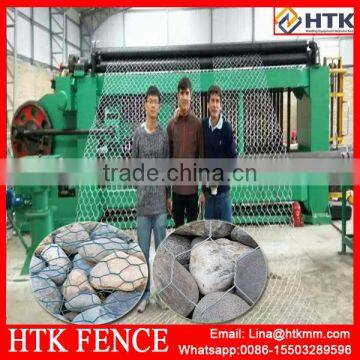

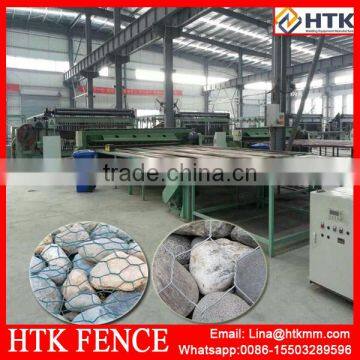

Gabion mesh machine has roll wire tension device, wire spiral coiling machine and main machine. It has simple structure, it is easy to operate and good efficiency. We can also make the machine as customer's specification.

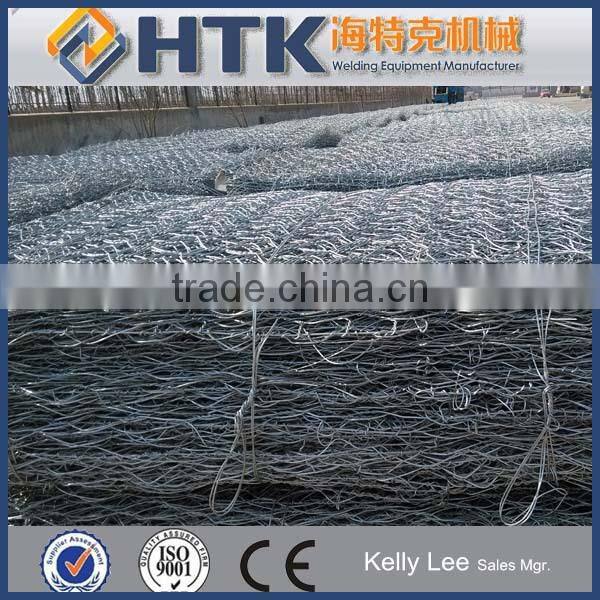

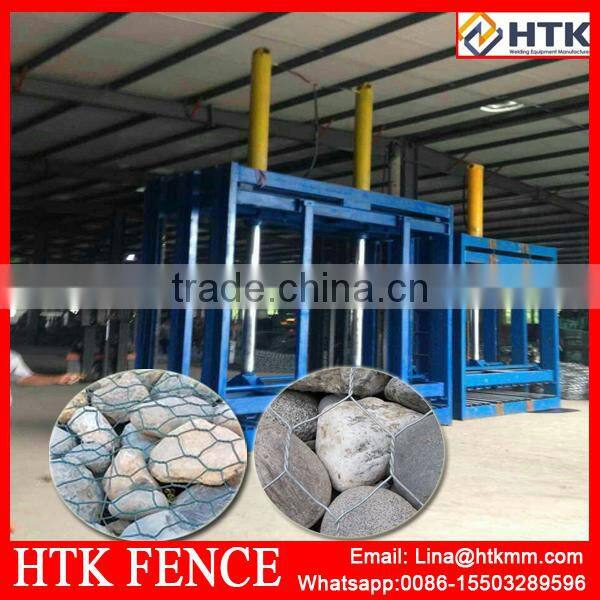

Raw material can be galvanizing wire and steel wire. The final products usage gabion box, fence, water project, etc
Our engineer has 20 years experience on gabion machinery
Technical parameters:
Mesh Size (mm) | Max. Breadth (mm) | Max. Dia (mm) | Weaving- vein No. | Power (kw) | Theoretical Manu | Exterior Size (m) | Weight (T) |
Meter /Hour | L×W×H | ||||||
50×70 | 2300 | 2.5 | 3 | 11 | 140 | 5.2×1.4×2.4 | 13 |
3300 | 2.5 | 3 | 15 | 140 | 6.2×1.4×2.4 | 14 | |
4300 | 2.5 | 3 | 22 | 140 | 7.2×1.4×2.4 | 15 | |
60×80 | 2300 | 2.7 | 3 | 11 | 165 | 5.2×1.4×2.4 | 13 |
3300 | 2.7 | 3 | 15 | 165 | 6.2×1.4×2.4 | 14 | |
4300 | 2.7 | 3 | 22 | 165 | 7.2×1.4×2.4 | 15 | |
80×100 | 2300 | 3.0 | 3 | 11 | 195 | 5.2×1.4×2.4 | 13 |
3300 | 3.0 | 3 | 15 | 195 | 6.2×1.4×2.4 | 14 | |
4300 | 3.0 | 3 | 22 | 195 | 7.2×1.4×2.4 | 15 | |
100×120 | 2300 | 3.2 | 3 | 11 | 225 | 5.2×1.4×2.4 | 13 |
3300 | 3.2 | 3 | 15 | 225 | 6.2×1.4×2.4 | 14 | |
4300 | 3.2 | 3 | 22 | 225 | 7.2×1.4×2.4 | 15 | |
140×170 | 2300 | 4.0 | 3 | 11 | 225 | 5.2×1.4×2.4 | 13 |
3300 | 4.0 | 3 | 15 | 225 | 6.2×1.4×2.4 | 14 | |
4300 | 4.0 | 3 | 22 | 225 | 7.2×1.4×2.4 | 15 | |
60×80&120×160 | 2300 | 2.7/4.0 | 3 | 11 | 160/225 | 5.2×1.4×2.4 | 13 |
3300 | 2.7/4.0 | 3 | 15 | 160/225 | 6.2×1.4×2.4 | 14 | |
4300 | 2.7/4.0 | 3 | 22 | 160/225 | 7.2×1.4×2.4 | 15 |
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers avaliable to service machinery overseas:Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
Series Production Line
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
Packaging: in pallets, in plastic film or as per customers’requirements.
Shipping: within 25days after receiving the prepayment or relevant L/C.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers avaliable to service machinery overseas:Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
Payment: 30%TT in advance and pay off the balance against the copy of B/L.
MOQ: 1 Set
