Specifications
Wire diameter:2-4.0mmFactory more than 14 years
Certficate:ISO9001

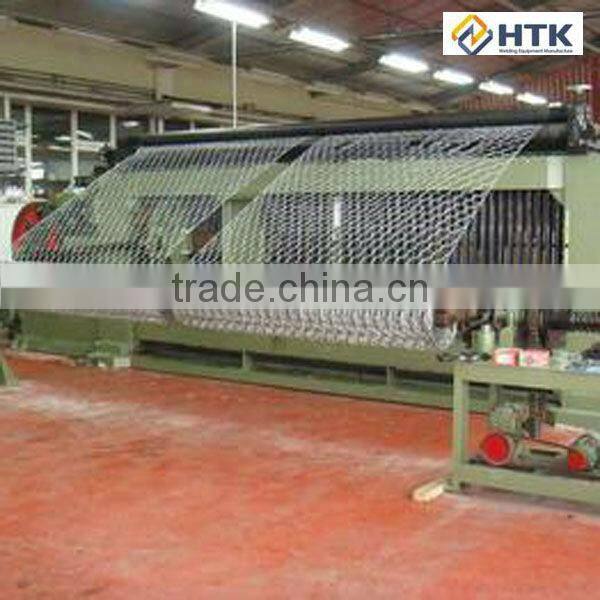

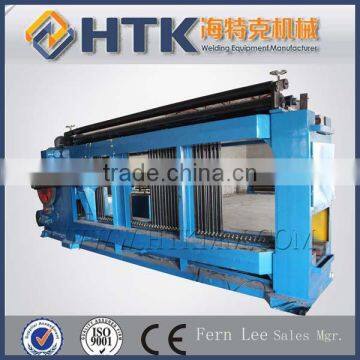

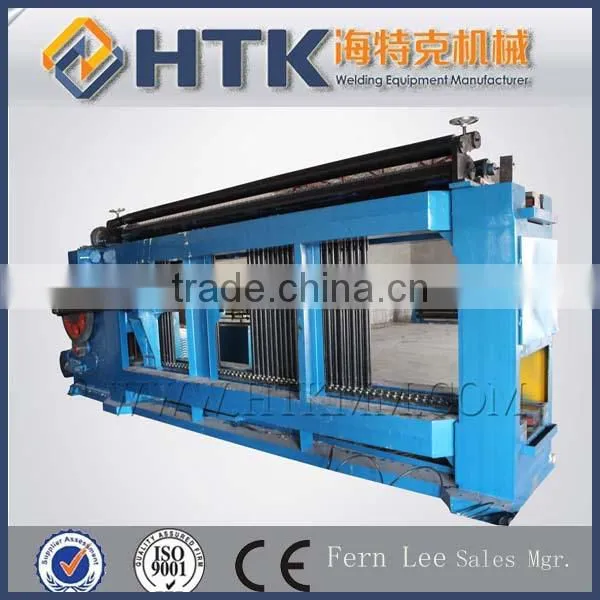

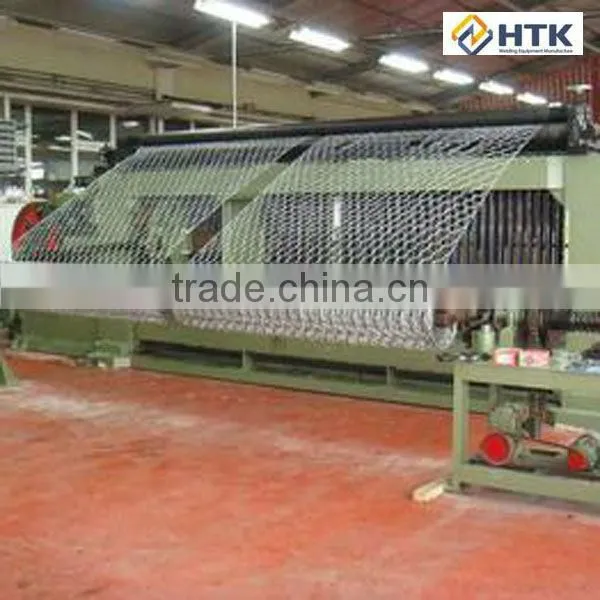

Automatic gabion wire mesh machine
Feature:
PLC control, hydraulic transmission, with smooth running, low noise, high efficiency, is weaving a large size, wide width, thick wire diameter square grid of the ideal machine.
Application:
1,widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes wrapped network; can be used for fencing, residential and landscape protection and so on.
2,support the seawall, hillsides, road and bridge, reservoirs and other civil engineering, is the flood control flood of good material.
Technical parameters:
Type |
Max width(mm) |
Max wire diameter |
Twist |
Speed/min |
Power |
Size |
70×50 |
4200 |
2-4.0mm |
3 |
>2m/min |
15 |
7500×1400×2600 |
80×60 |
4200 |
2-4.0mm |
3 |
>2m/min |
18 |
7500×1400×2600 |
100×80 |
4200 |
2-4.0mm |
3 |
>2m/min |
22 |
7500×1400×2600 |
125×80 |
4200 |
2-4.0mm |
3 |
>2m/min |
22 |
7500×1400×2600 |
150×122 |
4200 |
2-4.0mm |
3 |
>2m/min |
22 |
7500×1400×2600 |
Note:Special type an be made according to clients requirement
Hebei HTK Welding Equirement Manufacturing CO.,LTD
The company registered capital of 500million ,wite two senior engineers,10senior technicians,more than 100employeers.
Business model:direct factoy
Advantage of HTK factory:
uWe have professional engineer supervision
uThe price preferential benefit
uProduct quality assurance
uHigh production efficiency
uWith credibility and protection
uCan visit the factory in person
uGood after sales service
