Fiber Optic FTTX Faceplate 1 Port

Fiber Optic FTTX Faceplate 1 Port thumbnail-1
Fiber Optic FTTX Faceplate 1 Port thumbnail-2
Fiber Optic FTTX Faceplate 1 Port thumbnail-3
Fiber Optic FTTX Faceplate 1 Port thumbnail-4
Fiber Optic FTTX Faceplate 1 Port thumbnail-5

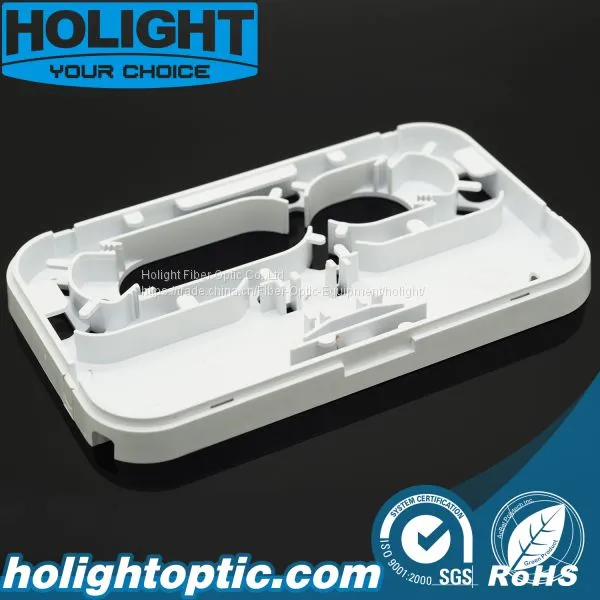

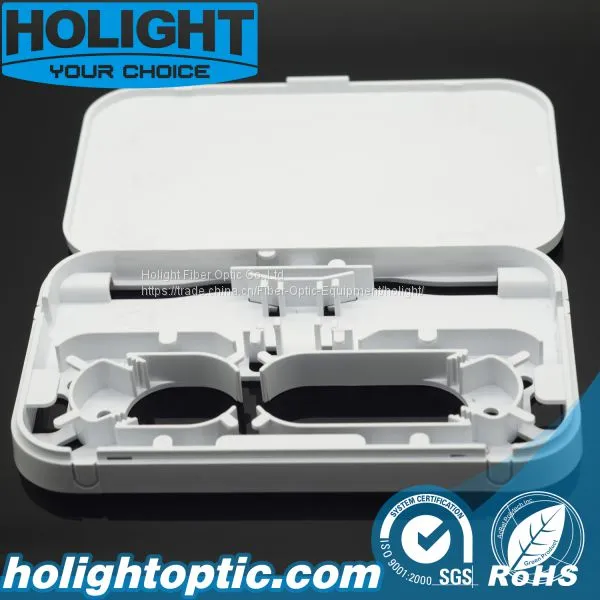

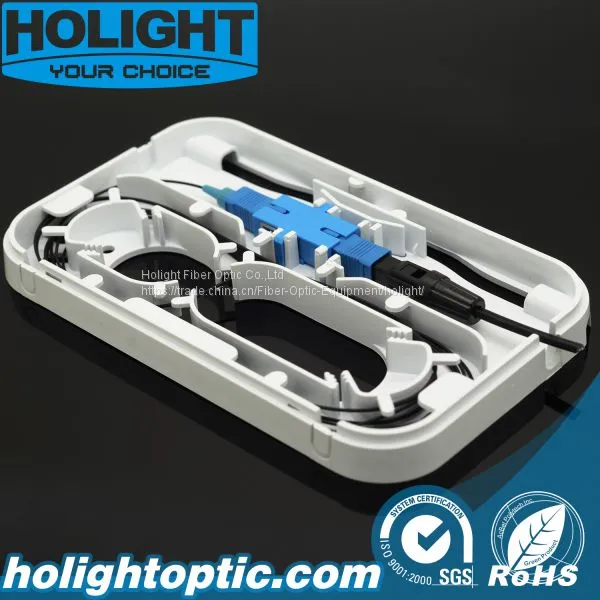

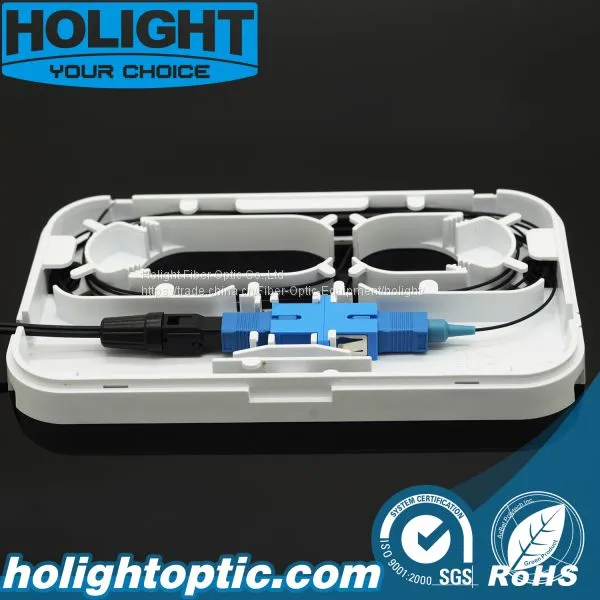

Fiber Optic FTTX Faceplate 1 Port photo-1
Fiber Optic FTTX Faceplate 1 Port photo-2
Fiber Optic FTTX Faceplate 1 Port photo-3
Fiber Optic FTTX Faceplate 1 Port photo-4
Fiber Optic FTTX Faceplate 1 Port photo-5
US$ 0.8 - 1.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Holight
Place of Origin:
China
Model Number:
HFP8008
Contact Supplier Request Quote Chat Now
Holight Fiber Optic Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Holight
Place of Origin China
Model Number HFP8008

·It is used for different kinds of modules and applied to the working area subsystem
·It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO
·With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice
·All modules are free of welding

APPLICATIONS
·The telecommunication network, metropolitan area network, optical fiber communication system
·Optical testing equipment/instrument
·CATV optical fiber, optical fiber sensor
·Optical fiber broadband access network, FTTH optical fiber
·Optical fiber distribution frame, frame type and wall type optical fiber distribution unit


SPECIFICATION
ITEM VALUE
Application 3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter 125μm ( 652 & 657)
Tight cladding diameter 250μm & 900μm
Mode of application Single mode & duplex mode
Tensile strength >50 N
End-use temperature -40~ 85ºC
Adaptor SC & LC
Insertion loss ≤0.2dB(1310nm & 1550nm)
output 1
Size(A×B×C ) 89.8*148.3*16 mm
Installation Size D 102 mm
CONFIGURATION
Model Adaptor Amount Capacity(Core)
HFP8008 - - 1
HFP8008-1SA SC/APC Simplex 1 1
HFP8008-1SU SC/UPC Simplex 1 1
HFP8008-2LU LC/UPC Duplex 1 2
HFP8008-2LA LC/APC Duplex 1 2
