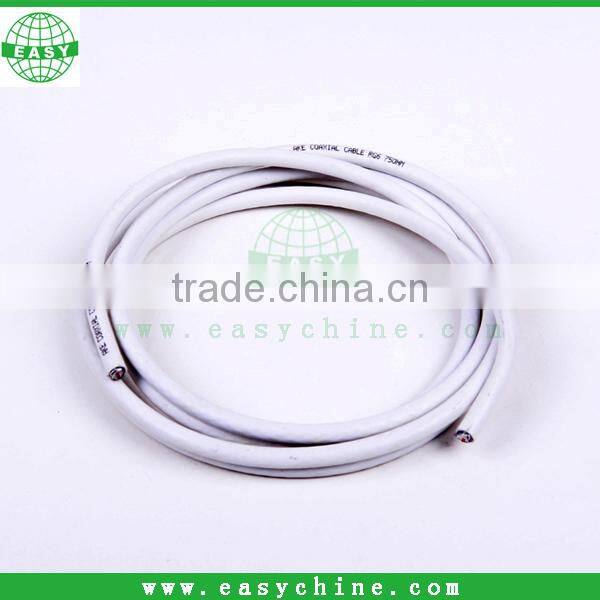

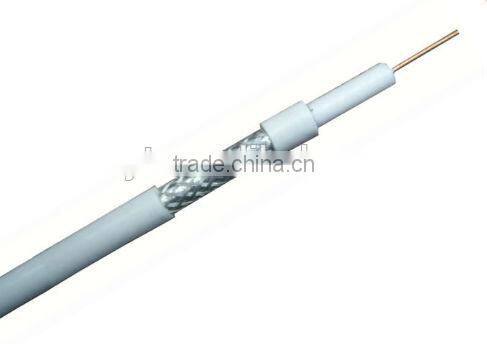

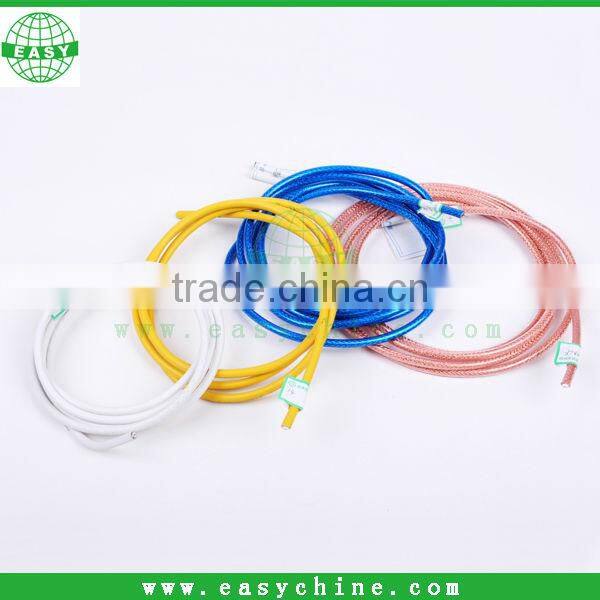

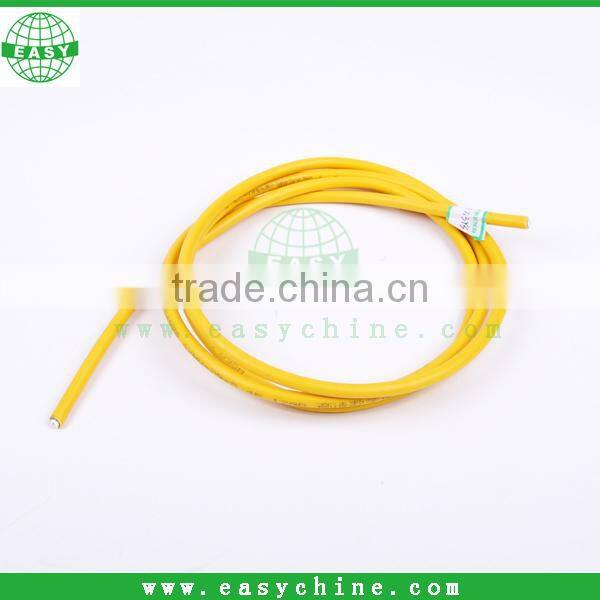

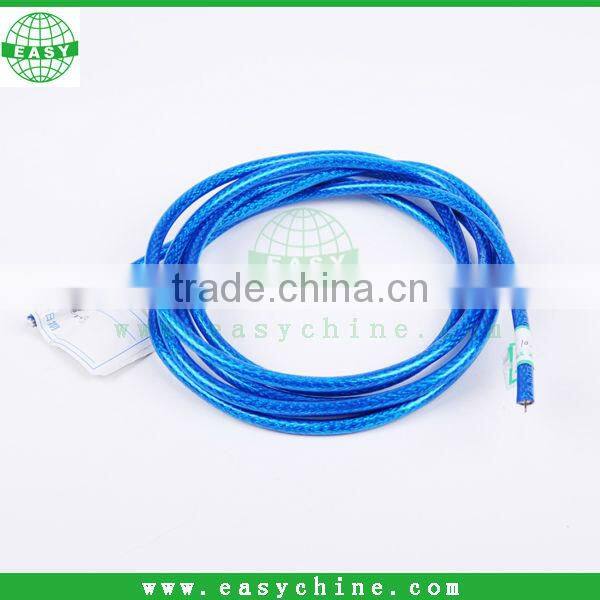

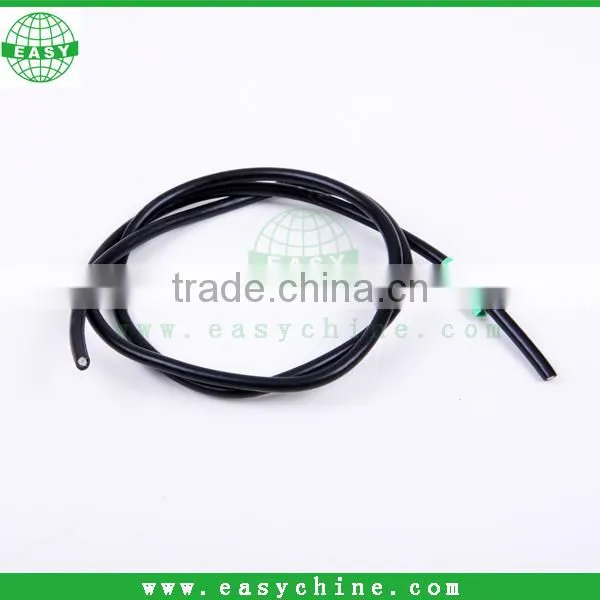

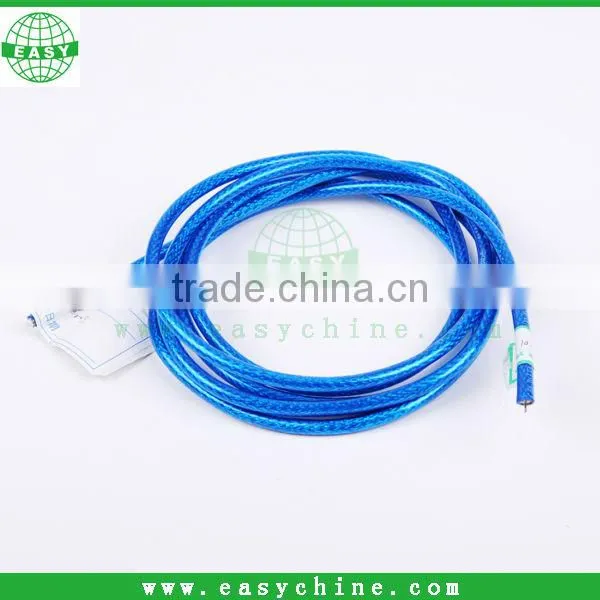

CCTV Rj11 Coaxial Cable
*PE Sheath
*Shield:AL Foil+ Al Braiding+Al Foil
*Coverage:40%~95% AL wire
*Jacket:PVC/PE
Usage:
Using in CCTV Camera and applicableto video filed,communication system abd signal controlling system,video monitor cirsuity ,broadcast signal control ,public TV antenna,circuit TV monitor system camera .
basic Construction
type
| Conductor (No./mm) | Braid shield (mm) | Material
| Reference diameter | impendence ohm |
RG-6/U | 1/0.8 BC/CCS/TC | 32*0.12 | Al-mg/cu | 6.8 | 75 |
48*0.12 | |||||
64*0.12 | |||||
1/1.02 BC/CCS/TC | 80*0.12 | 7.0 | 75 | ||
96*0.12 | |||||
112*0.12 | |||||
128*0.12 | |||||
RG59/U | 1/0.64 BC/CCS/TC | 32*0.12 | Al-mg/cu | 6.0 | 75 |
48*0.12 | |||||
64*0.12 | |||||
1/0.81 BC/CCS/TC | 80*0.12 | 6.0 | 75 | ||
96*0.12 | |||||
112*0.12 | |||||
RG-8/U | 7/0.72 BC/CCS/TC | 80*0.16 | Al-mg/cu | 10.3 | 52 |
112*0.16 | |||||
160*0.16 | |||||
RG11/U | 1/1.63 BC/CCS/TC | 64*0.12 | Al-mg/cu | 10.3 | 75 |
128*0.12 | |||||
144*0.12 | |||||
RG58/U | 1/0.81 BC/CCS/TC | 32*0.12 | Al-mg/cu | 5.0 | 50 |
64*0.12 | |||||
RG-58A/U | 19/0.18 BC/CCS/TC | 80*0.12 | Al-mg/cu | 5.0 | 50 |
112*0.12 | |||||
RG-213/U | 7/0.75 BC/CCS/TC | 80*0.12 | Al-mg/cu | 10.3 | 50 |
96*0.15 | |||||
128*0.16 | |||||
3C-2V | 1/0.5 BC/CCS/TC | 64*0.12 | Al-mg/cu | 5.8 | 75 |
96*0.12 | |||||
112*0.12 |

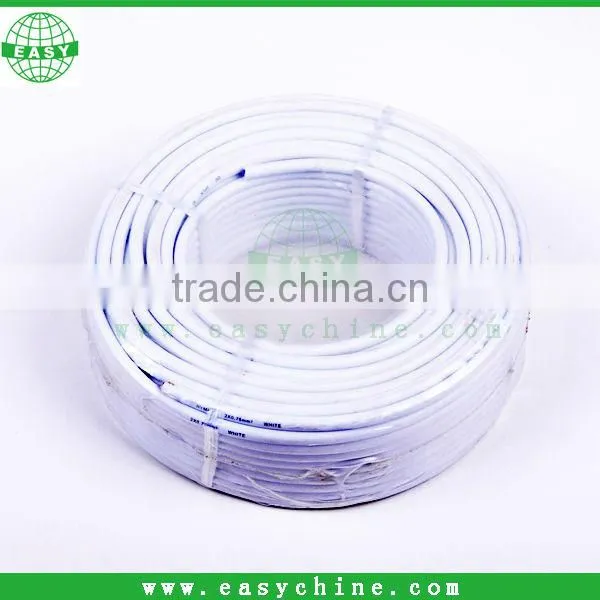

Packing:
1) Packing lengths: 100m/roll, 200m/roll, 300m/roll, 100 yards/roll,
200 yards/roll, 300yard/roll
2) Inner packing: wooden drum, plastic drum, paper drum
3) Outer packing: carton box, pull out box
4) Other packing available according to client's request
Why choose us
1.High quality
2.Favorable price
3.Great variety of products
4.Attractive design
5.Environment friendly technology
