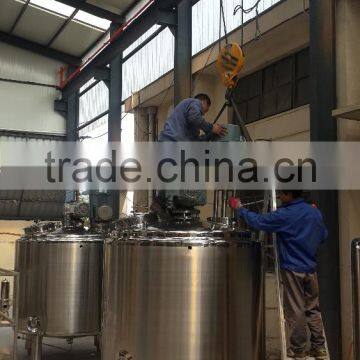

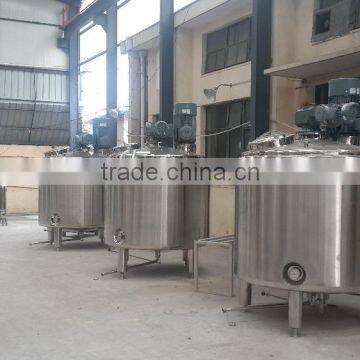

oil/electrically heated vacuum mixing tank
Name:vacuum mixing tank
Material:stainless steel ss304 ss316
Brand name:L&B
Payment:T/T
20 years manufacture experience
10 years export experience
high quality and favorable price
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Configuration of vacuum mixing tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Liquid level meter and level controller (According to customer requirements ).

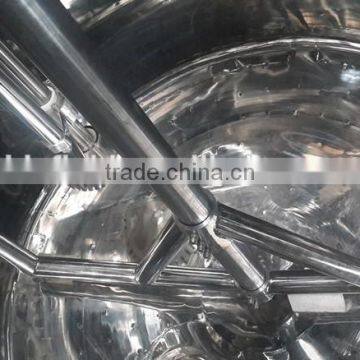

9. Eddy-proof board. Stainless steel Mixing tank
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer |
| (L) | (mm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2750 | 60 | 38 |
| 600 | 920*1000 | 2850 | 60 | 38 |
| 800 | 950*1220 | 3000 | 60 | 38 |
| 1000 | 1060*1220 | 3150 | 60 | 51 |
| 1500 | 1160*1500 | 3350 | 60 | 51 |
| 2000 | 1340*1500 | 3410 | 60 | 51 |
| 3000 | 1410*2000 | 4000 | 60 | 51 |
| 5000 | 1810*2000 | 4300 | 60 | 51 |
| 6000 | 1980*2000 | 4550 | 60 | 51 |
| 8000 | 2060*2440 | 5000 | 60 | 51 |
| 10000 | 2300*2440 | 5050 | 60 | 51 |
| 15000 | 2530*3000 | 5700 | 60 | 51 |
| 20000 | 2640*3660 | 6400 | 60 | 51 |
Zhejiang L & B Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.
Our main products including vacuum mixing tank,colloid mills, high shear mixer, colloid mills,valves and pipe fittings,beer fermenterand Sanitary pumps
etc.
Meanwhile we also accept customized stainless steel parts and components for all industries.
BLS products could applied in food, beverage, pharmacy, chemical, cosmetics industries etc
We now exports our goods to United States, Australia, Newzealand and Japan etc.
1. Q: How do I pay for my purchase order?
A: T/T, L/C
2. Q: What's the MOQ of vacuum mixing tank?
A: Our MOQ of vacuum mixing tank is 1 unit.
3. Q:What's the delivery time?
A: It will take about 15-35days to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Of course, you products can be customed for example color, logo, design, mark, etc.
5. Q: Do you have quality control?
A: Yes, we attach great importance to quality control.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
