Application
1. Used as storage and fermentation tank in wine, dairy, etc industries;
2. Apply in the filed of food, dairy, juice, chemical and biological fields.

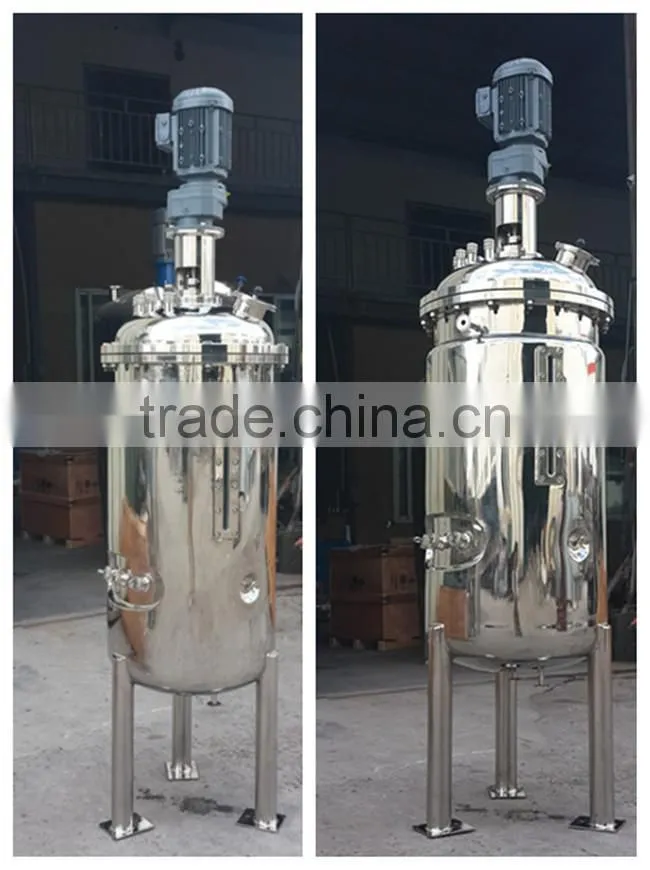

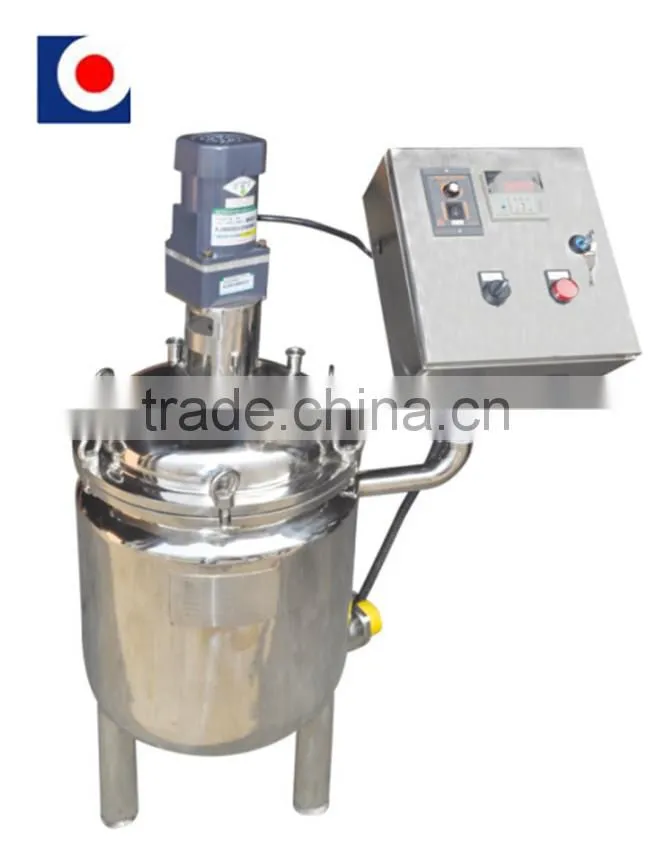

Structure
1.Volume from 50L-20000L, could be customized according to customer needs.
2. Material used sanitary stainless steel.
3. Three layer structure: Inner body, jacket and insulated, insulated layer filled with insulation material.
4. Inner wall polish less 0.6um, Outside finish could be mett or mirror polish.
5. Conical bottom shape, cooling jacketed could adopt dimple jacketed, arched and corrugated access jacket.
6. All pipe are ISO or DIN sanitary pipe,mirror polish

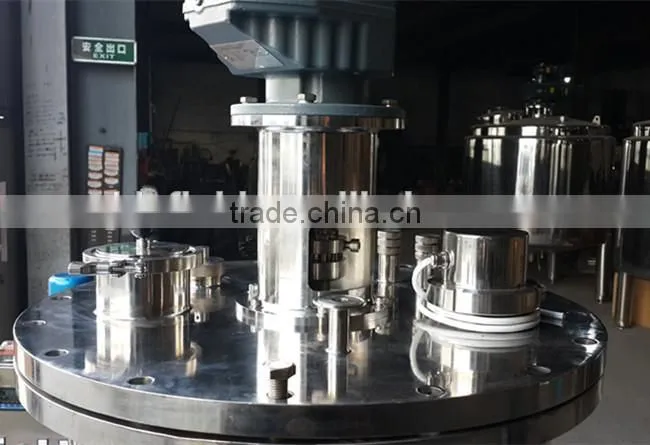

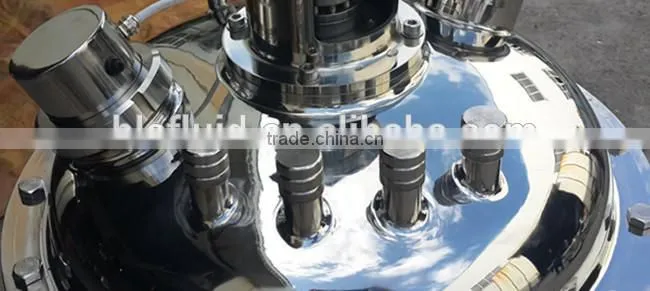

Parts
1. Manway
2. Aseptic Breather
3. Thermometer(As customer request)
4. CIP spray ball
5. Bacterial access port

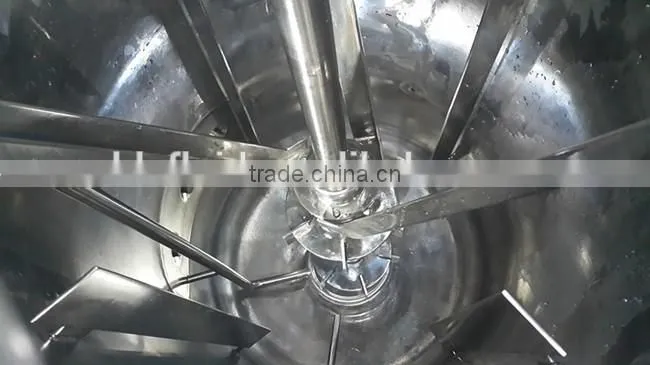

6. Agitator
7. Adjustable leg
8. Jacket(Dimple or full jacket as customer request)
Model |
FJ0.1 |
FJ0.2 |
FJ0.5 |
FJ1 |
FJ2 |
FJ5 |
FJ10 |
FJ20 |
FJ50 |
Volume (L) |
100 |
200 |
500 |
1000 |
2000 |
5000 |
10000 |
20000 |
50000 |
Diameter of fermentation tank (mm) |
400 |
500 |
700 |
900 |
1200 |
1500 |
1800 |
2300 |
3100 |
Height of fermentation tank(mm) |
2000 |
2300 |
2650 |
2900 |
3800 |
4480 |
5250 |
6550 |
8550 |
Pressure in tank(Mpa) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
Pressure in jacket(Mpa) |
0.3 |
0.3 |
0.3 |
0.2 |
0.3 |
0.3 |
pipe 0.3 |
pipe 0.3 |
pipe 0.3 |
Umber of blending paddles |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
4 |
4 |
Blending rotation(r/min) |
400 |
360 |
265 |
220 |
180 |
160 |
145 |
125 |
110 |
Motor power(KW) |
0.55 |
0.75 |
1.1 |
1.5 |
3 |
5.5 |
7.5 |
7.5 |
11 |
Cooling mode |
Jacket |
|
Equipped with lined heat exchanger |
||||||
...
