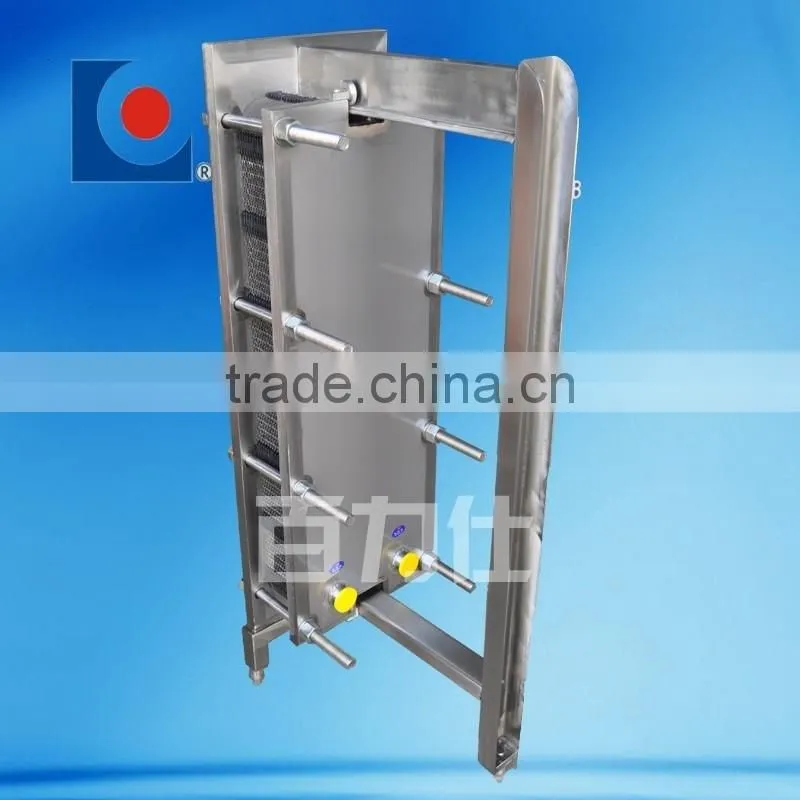

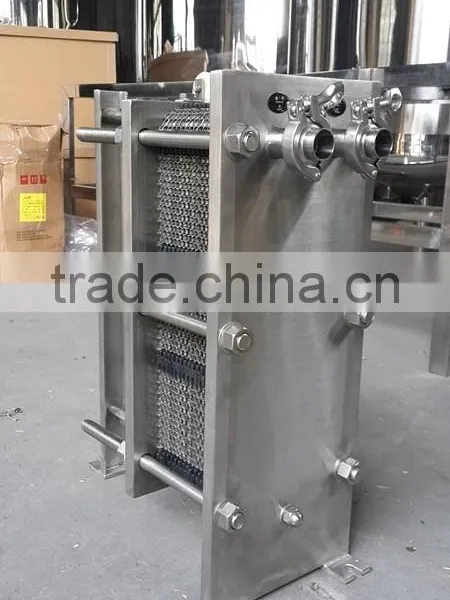

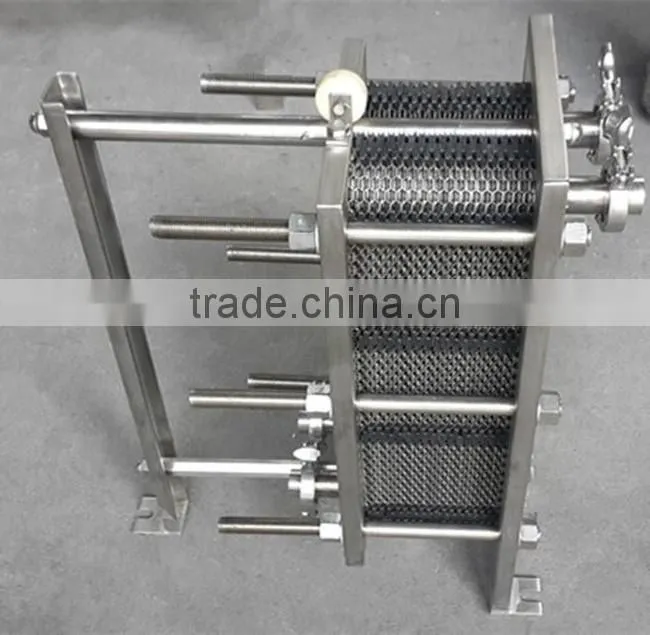

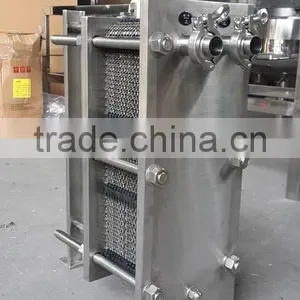

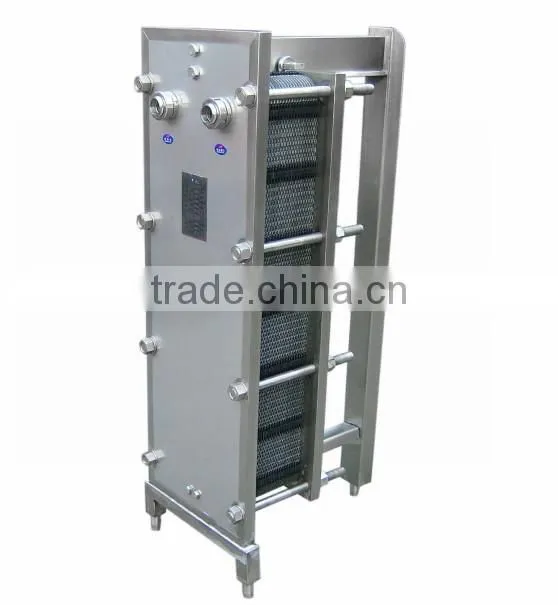

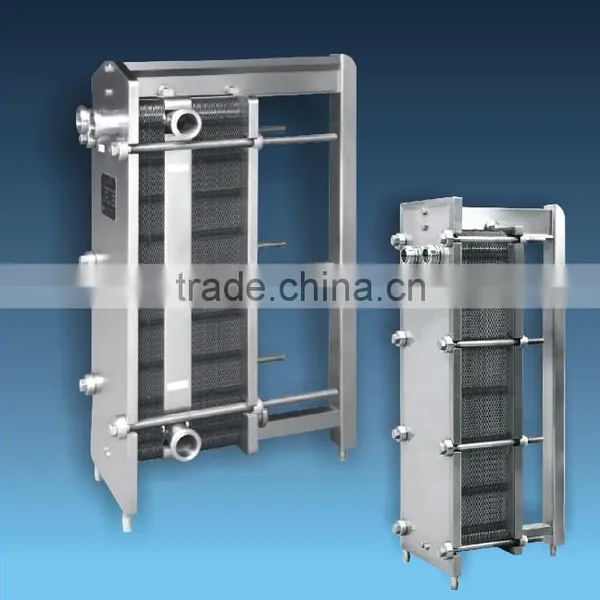

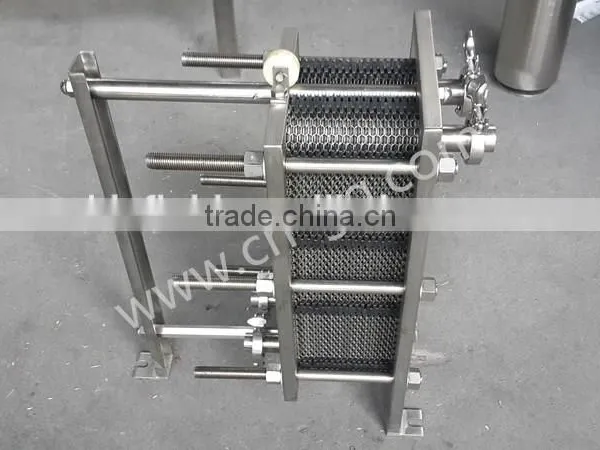

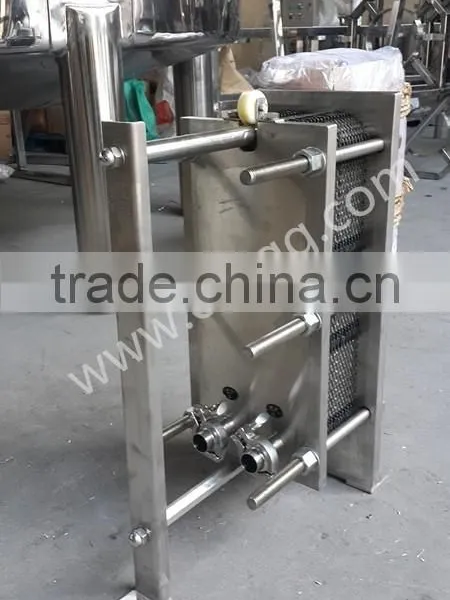

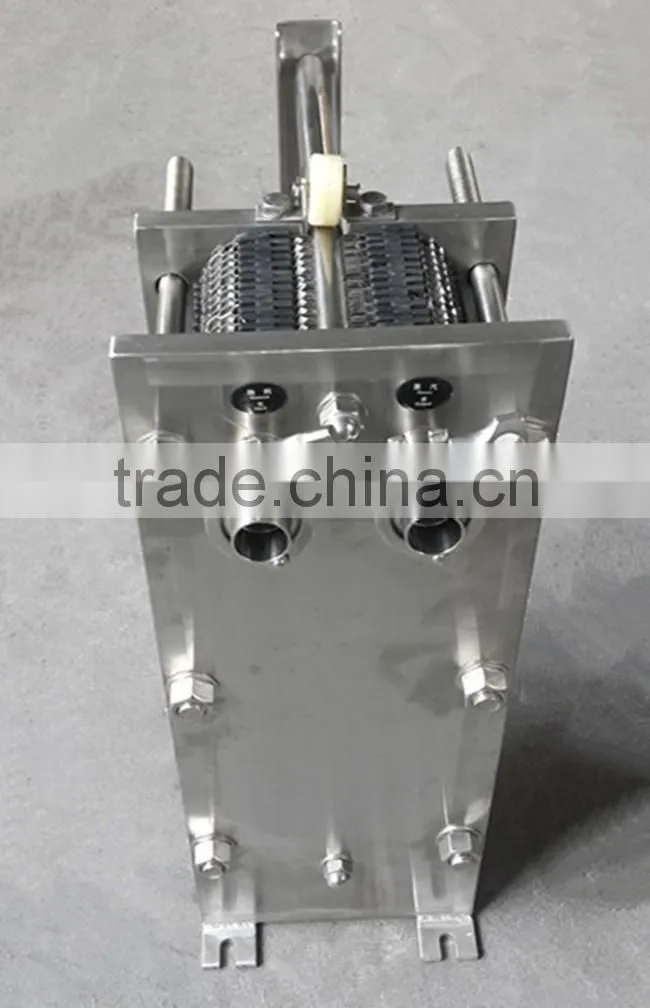

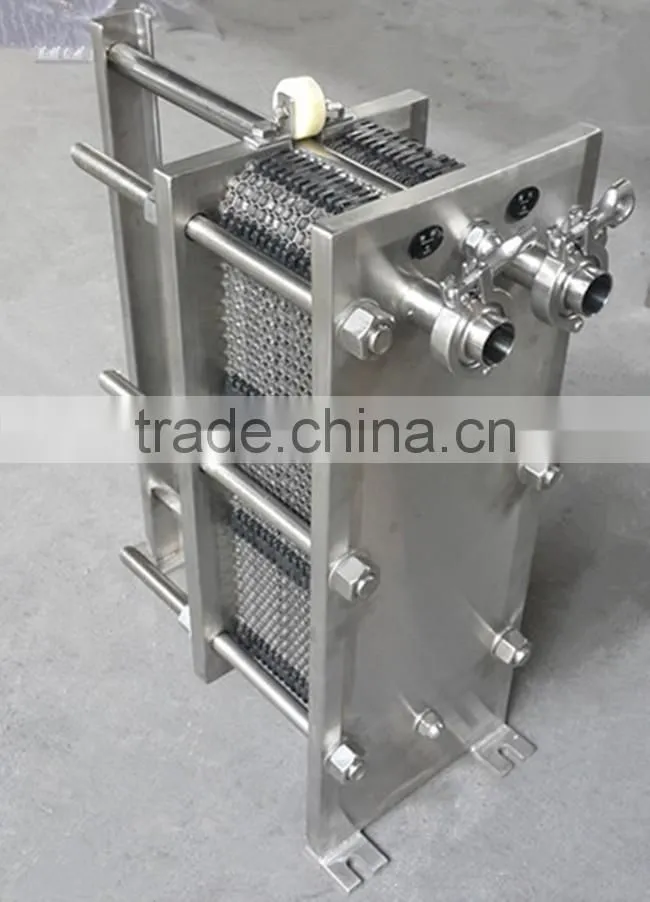

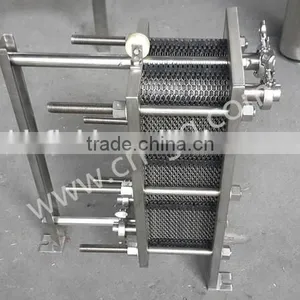

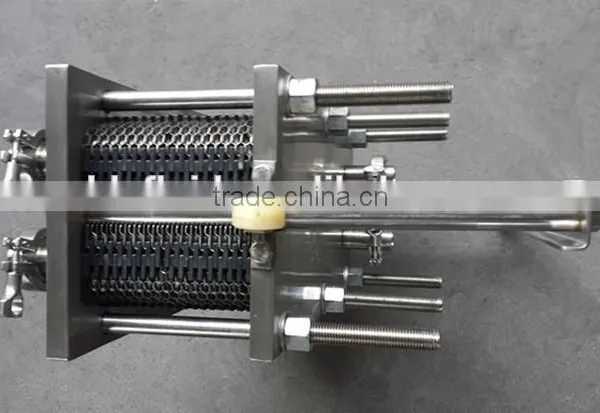

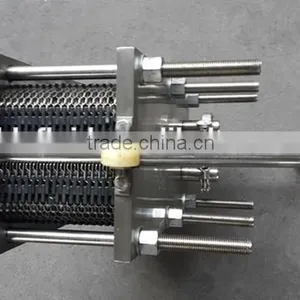

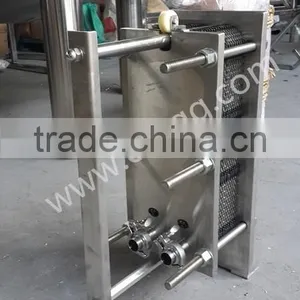

Help CenterStainless Steel Plate Heat Exchanger for Food Industrial (20m3/h-2300m3/h)
Related Products
made in china good supplier heat exchanger machine
china suppliers ISO liquid heat exchange
1.Material: stainless steel 304 or 316L
2. Application: use in food,beverage, juice, milk etc
3.Capacity: 20-2300 m3/h
4.Technical advantages of company:
more than 20 years production experience, over 10 year exported experience, ISO certified factory.
5. MOQ: one set
6. Package: exported package of plywood case

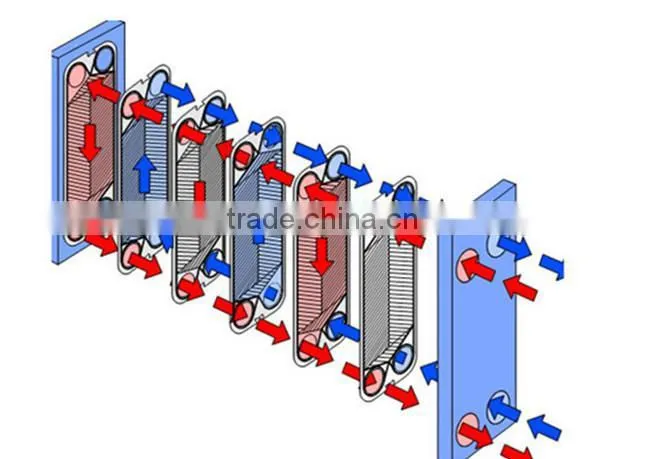

7.Working principle:
Each plate is provided with a gasket, which seals the flow gaps to atmosphere and the media from one another. The plate package is mounted in a rack consisting of a fixed number of plates. Two pressure plates clamp this package together with tie rods. Single pass and multi-pass arrangements are standard with a surface area of up 1500m2 in one unit. Pure counter flow is employed to achieve maximum possible heat transfer.
Model |
Pipe size |
Max assembly area |
Max capacity |
Weight |
|
mm |
m2 |
m3/h |
kg |
BR07 |
DN32 |
7 |
20 |
105 |
BR15 |
DN65 |
30 |
70 |
400 |
BR25 |
DN65 |
25 |
80 |
830 |
BFR25 |
DN100 |
50 |
250 |
800 |
BR35 |
DN100 |
50 |
200 |
1640 |
BR36 |
DN125 |
60 |
250 |
1250 |
BR55 |
DN200 |
180 |
800 |
3500 |
BR60 |
DN150 |
180 |
400 |
3500 |
BR100 |
DN200 |
300 |
650 |
4773 |
BR160 |
DN300 |
800 |
2300 |
1200 |
Zhejiang L&B Fluid Equipment co., Ltd,
a modern enterprise which combine the ability of design, development, manufacturing, engineering,
installation,technical services, has special technology to design and exploit by CAD software and
computer and is a outstanding leader among valve fields.
We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according
to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients
(non-standard).
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks
etc for many years.
We can design the products according to your special request. OEM is welcome too.
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
