Help CenterStainless Steel Bag Filter Vessel
Related Products
-
Stainless Steel Beer Filter PressUS$ 500 - 3,000MOQ: 1 Piece -
Customized Stainless Steel Food Grade Micro Millipore Filter (BLS)US$ 50 - 300MOQ: 5 Sets
-
SUS 304 and 316 Bag Milk Filter HousingUS$ 150 - 1,000MOQ: 1 Set
-
WBG10-200 Plate Frame Filter for Beer Wort(PP Filter Paper)US$ 300 - 2,300MOQ: 1 Set
-
WBG10-200 Oral Used Syrup Press Plate Filter MachineryUS$ 300 - 2,300MOQ: 1 Set

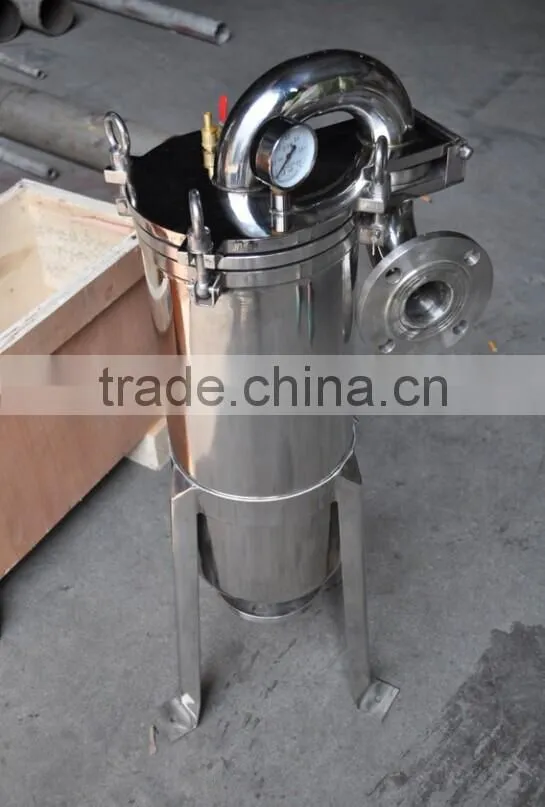

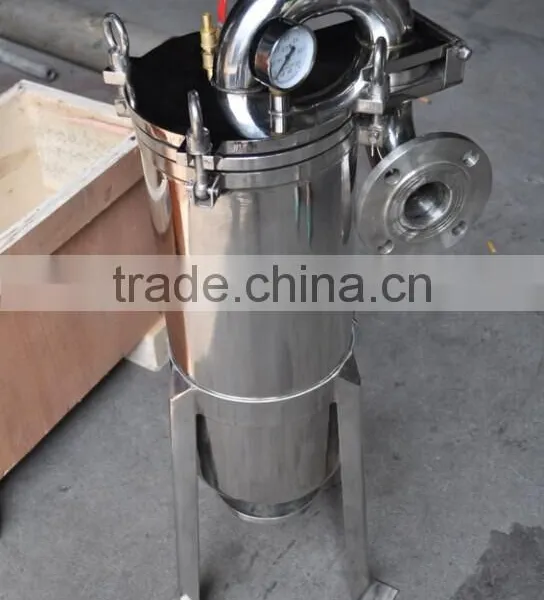

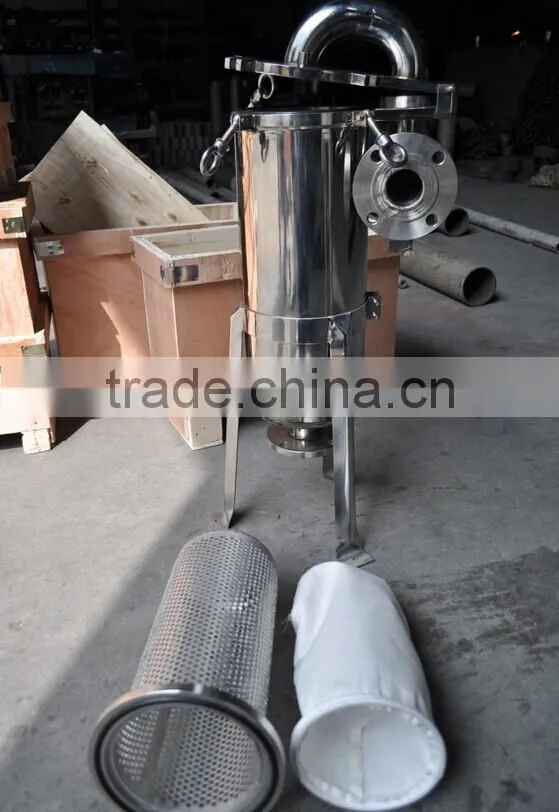

Bag Filter housing effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 18 Cubic m/h to 210 cubic m/h.
Technical specification
1.Material:SS304,SS316,SS316L
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:Tri Clamp,Flange,Thread
8.Inlet/Out Dimension: 1 1/2"-8"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,
Electronic Industry and So On.
| Model | Filter Diameter | Filter Height | Total Height | Inlet&Outlet | Flow |
| SGD180/400-1-F | 350 | 360 | 940 | 1 1/2" | 18m3/h |
| SGD180/800-1-F | 350 | 360 | 1340 | 2" | 35m3/h |
| SGD180/800-2-F | 560 | 360 | 1625 | 4" | 70m3/h |
| SGD180/800-3-F | 650 | 760 | 1640 | 5" | 105m3/h |
| SGD180/800-4-F | 740 | 760 | 1675 | 6" | 140m3/h |
| SGD180/800-6-F | 900 | 760 | 1780 | 8" | 210m3/h |
