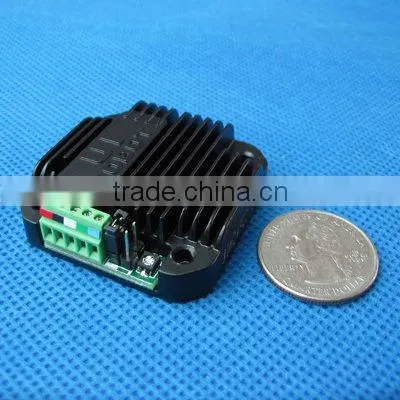

Help CenterSelf-pulsing UIM24302 0-2A Phase Current Step Driver
Related Products
-
Self Pulsing Step Motor Controller (UIM24302)US$ 1 - 150MOQ: 5 Pieces -
UIM24302 A or B Voltage Control Miniature Integrated Stepper Motor ControllerNegotiableMOQ: 10 Pieces
-
UIM24302-A Voltage Control Miniature Integrated Stepper Motor Controller Self-pulse Generating Work StandaloneUS$ 1 - 30MOQ: 10 Pieces
-
UIM24302-B Voltage Control Miniature Integrated Stepper Motor Controller Self-pulse Generating StandaloneUS$ 1 - 30MOQ: 5 Pieces
-
UIM24301 Self-pulsing Standalone Intelligent Stepper Motor Controller Speed AdjustableNegotiableMOQ: 10 Pieces
Specifications
Nema17 frame size0-2 amps per phase
10-30VDC power supply
16th fixed micro stepping, S curve accel
Self pulsing step drive
Nema 17 frame size miniature step driver
10-30VDC wide range power supply
0-2 amps per phase adjustable output current
16th fixed micro stepping
Self-pulsing step driver
Power on to drive your stepper motor
Estimating Stepper Motor Size:
"Pick the weight of the heaviest item you are pushing around. If it weighs 40lbs, use 40lbs. multiply it by the IPM [Inches Per Miniute] you want. Say that's 1,000 IPM. Divide the result by the magic number "531". The answer is 75.3 Watts".
Watts = IPM * Lbs / 531
or
Watts = torque (in in-oz) * RPM / 1351
Watts = amps * volts so you need a current and voltage rating that, when multiplied, reach more than your minimal required watts. In the example above, with a 75.3 watt power output requirement, you need a 4 amp motor driven at 24 volt motor or a 3 amp motor driven at 30 volt or ...
Here is that last line in a handy calculator with torque units conversion built in:
This is generally going to me a more accurate estimate of the motor required for a mill or other system where a lead screw is pulling a load because the additional friction and mass of the system that moves the load is also included when you measure the torque required to turn the screw.
