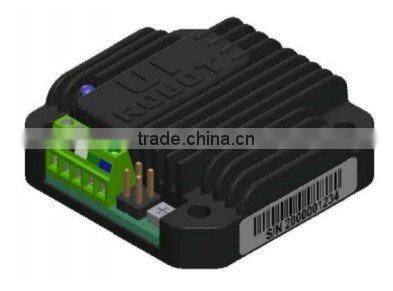

Self Pulsing Step Motor Controller (UIM24302)
US$ 1 - 150
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
UIROBOT
Model Number:
UIM24302
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UIM24302 A or B Voltage Control Miniature Integrated Stepper Motor ControllerNegotiableMOQ: 10 Pieces -
UIM24302-A Voltage Control Miniature Integrated Stepper Motor Controller Self-pulse Generating Work StandaloneUS$ 1 - 30MOQ: 10 Pieces
-
UIM24302-B Voltage Control Miniature Integrated Stepper Motor Controller Self-pulse Generating StandaloneUS$ 1 - 30MOQ: 5 Pieces
-
UIM24301 Self-pulsing Standalone Intelligent Stepper Motor Controller Speed AdjustableNegotiableMOQ: 10 Pieces
-
Self Pulsing Driver UIM24302 Step Controller With MCU for Plastic ExtruderUS$ 1 - 200MOQ: 10 Pieces
Place of Origin
Shanghai, China
Brand Name
UIROBOT
Model Number
UIM24302
Motor Type
Stepper Motor
Specifications
self pulsing step motor controller (UIM24302), work standalonespeed adjustable
miniature size
self pulsing step motor controller (UIM24302), work standalone
- Miniature size 42.3mm*42.3mm*13.5mm (L*W*H)
- Integrally designed to fit onto motors seamlessly, as well as work standalone
- Self pulse generating, running on power up
- Adjustable speed, and direction
- Wide range input voltage 10-35VDC
- Max 2A adjustable output current
- 16th micro stepping
- Dual full H-bridge with PWM constant current control
- Enable/shutdown input for power saving
- Die-cast aluminum enclosure, improve heat radiation and durability
UIM24302 Stepper Motor Controller is a miniature, high performance stepper motor controller. They can be mounted onto NEMA 17 / 23 series stepper motor seamlessly through corresponding flanges. The thickness of these controllers is less than 14 mm.
After properly adjusting/setting the speed and direction, it can run the motor on power up without the need of user control device. It is a good replacement of a servo system in applications need low cost but not hyper accuracy.
UIM24302 is capable to provide 0-2A adjustable phase current. Their mixed-decay current control reduces the back-EMF effect under high motor speed and improves the performance. Except that UIM24302 takes 10-35VDC input. Enclosure is made of die-cast aluminum which provides a rugged durable protection and improves the heat dissipation.
Further more stepper drive with parallel port and RS232 stepper controller and stepper controller with Canbus are available.
