Help CenterUIM24302-B Voltage Control Miniature Integrated Stepper Motor Controller Self-pulse Generating Standalone
Related Products
-
UIM24301 Self-pulsing Standalone Intelligent Stepper Motor Controller Speed AdjustableNegotiableMOQ: 10 Pieces -
Self Pulsing Driver UIM24302 Step Controller With MCU for Plastic ExtruderUS$ 1 - 200MOQ: 10 Pieces
-
UIM243 Series Voltage Control Miniature Integrated Stepper Motor ControllerUS$ 40 - 80MOQ: 1 Set
-
Ntegrated Stepper Motor Controller ShanghaiUS$ 40 - 80MOQ: 1 Set
-
UIROBOT UIM243L02BT Stepper Motor DriversUS$ 40 - 45MOQ: 1 Piece
Specifications
stepper motor driver42.3mm x 42.3mm x 16.5mm (L x W x H)
10-30V input voltage
max 2A phase current
embedded microcontroller
stepper motor driver

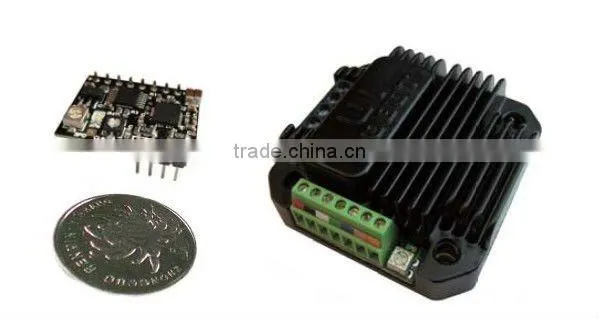

Miniature Integral Design

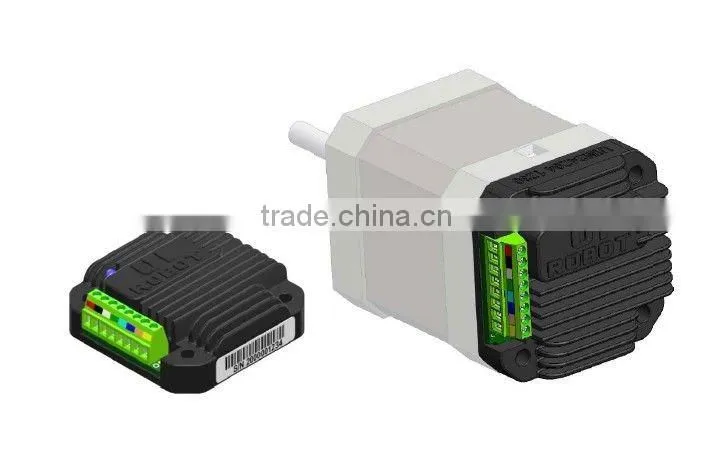

Miniature size 42.3mm x 42.3mm x 16.5mm (L x W x H)
Integrally designed to fit onto motors seamlessly, as well as work standalone
Die-cast aluminum enclosure, improved heat dissipation and durability
Motor Driver Features
10 - 30VDC input voltage, Max 2A adjustable phase current
16th micro-stepping
Dual full H-bridge with PWM constant current control
Control Features
Embedded microcontroller
Self pulse generation, automatic run on power-up
Speed control through on-board trimmer 0.15 - 1900 RPM (UIM24302A)
Speed control through external potentiometer 0.15 - 1900 RPM (UIM24302B)
Speed control through 0 - 5V voltage input 0.15 - 1900 RPM (UIM24302B)
Acceleration function
Switch control run/stop, direction, enable/shutdown
Automatic current reduction / power saving
Description
UIM24302 stepper motor controller is a microprocessor embedded, voltage control, miniature stepper motor controller.
With the UIM24302, the motor speed can be controlled by an analog voltage in three optional ways:
1) the on-board trimmer, 2) an external potentiometer or, 3) an external voltage. Run/stop, direction, high/low speed range and, enable/disable can be controlled simply by shorting the corresponding terminal to the ground. UIM24302 controllers can run the motor without user control device. The microprocessor of the UIM24302A/B is capable to ramp up the current speed to the desired speed within 0.3 seconds, even when the speed control voltage is changing. This feature makes the sudden increase of the desired speed become possible.
UIM24302 can provide 0 - 2A adjustable phase current. Their mixed-decay current control reduces
the back-EMF effect under high motor speed and improves the performance.
UIM24302 can be mounted onto NEMA 17 / 23 series stepper motor seamlessly through adapting
flanges. The enclosure is made of die-cast aluminum which provides a rugged durable protection and improves the heat dissipation.
