Home > Electrical & Electronics > Electric Motor > Stepper Motor > NEMA34 86mm Integrated Stepper Motor With Motion Controller

NEMA34 86mm Integrated Stepper Motor With Motion Controller

Name: NEMA34 86mm Integrated Stepper Motor With Motion Controller
Brand: UIROBOT
SKU: 140657814

NEMA34 86mm Integrated Stepper Motor With Motion Controller thumbnail-1

NEMA34 86mm Integrated Stepper Motor With Motion Controller photo-1

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

UIROBOT

Model Number:

UIM57-A

Contact Supplier Request Quote Chat Now

Shanghai United Intelligence Robotics Inc

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name UIROBOT

Model Number UIM57-A

Phase 2

Type Hybrid

Certification CE, ROHS

Step Angle(degrees) 1.8 deg, 0.9 deg.

Holding Torque 0.3 N.m.--1.2 N.m

Current / Phase 0-8A

Specifications

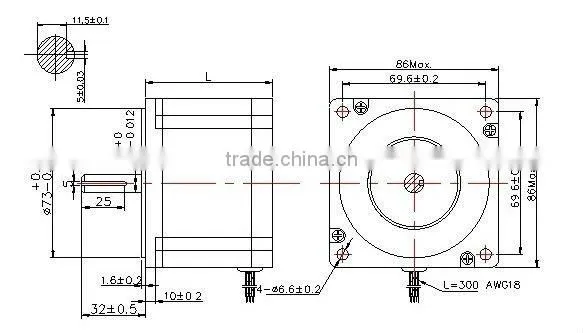

NEMA34 86mm stepper motor with controller
Holding Torque 0.3 N.m.-12 N.m.
with programmable stepper motor controller

NEMA34 86mm stepper motor with controller

motor specifications:

Model NO.

phase

Step angle

Current /phase

Resistance /phase

Inductance /phase

Holding toraue

Rotor inertia

Lead wire

weight

Deg. /step

ohms

N.m

Kg.cm2

No.

UI86STH98-2804A

1.8

2.8

1.7

5.5

2.5

Model NO.

phase

Step angle

Current /phase

Resistance /phase

Inductance /phase

Holding toraue

Rotor inertia

Lead wire

weight

Deg. /step

ohms

N.m

Kg.cm2

No.

UI86STH98-2804A

1.8

5.4

0.65

5.8

7.4

4.3

57mm NEMA23 stepper motors with different Holding Torques for your applications. More choices available for your enquiry.

Motion Controller Description:

UIM242 stepper controller is a microprocessor embedded single axis motion controller with an integrated bipolar stepper motor drive working standalone or integrally on stepper motor for networking. Through one CAN/RS232 Converter you can control upto 100 of this integrated stepper motors with motion controllers by one PC synchronously or individually. An on-board bipolar ‘chopper’ stepper drive is provided capable of driving motors up to 4 per phase in both full, half, fourth and sixteenth micro stepping modes.

You could also use the Parallel port UIM240 stepper driver and Serial port UIM241 steppercontroller for an integrated stepper motor.

UIM243 controller can also be integrated with NEMA23 /57MM stepper motor.

This controller features self pulsing, speed adjustable, work when power on. no need for PLC, etc.

can work standalone.
