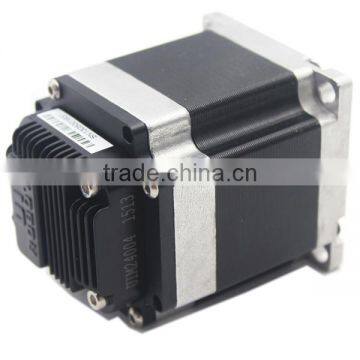

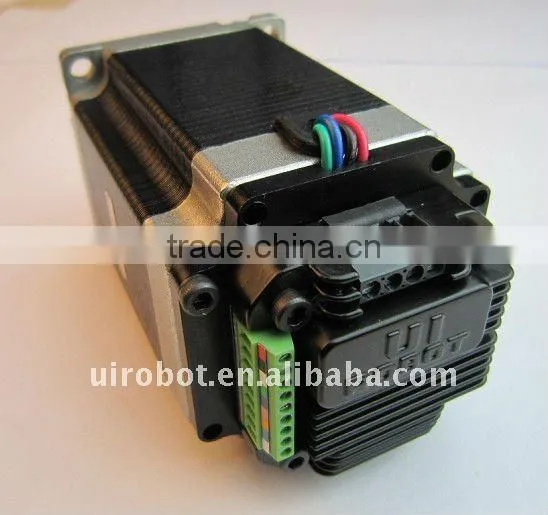

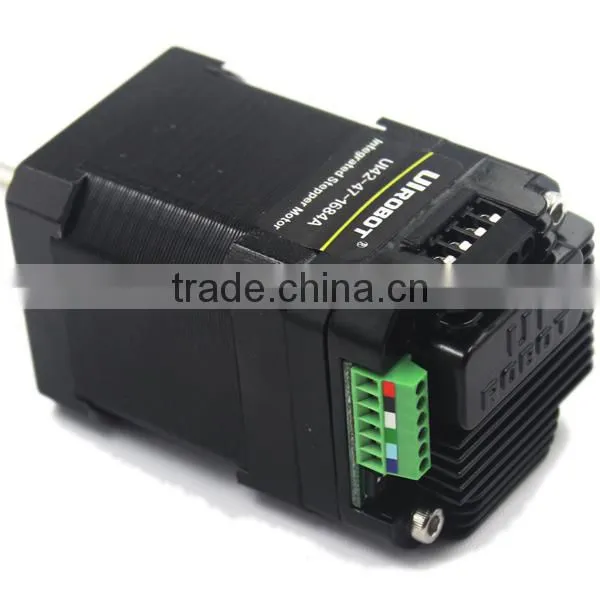

NEMA23 57mm integrated stepper motor with motion controller

FOB Price

USD $1 - $200 / Piece

5 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	UIROBOT
Model Number	UIM57	Phase	2
Type	Hybrid	Certification	CE, ISO, ROHS
Step Angle(degrees)	1.8 deg, 0.9 deg.	Holding Torque	1.26 N.m.--1.89 N.m
Current / Phase	0-8A

Product Description

NEMA23 stepper motor with controller

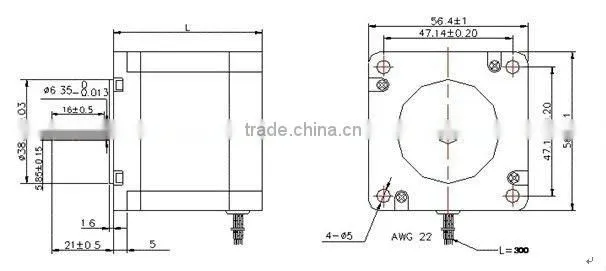

motor specifications:

Model NO.

phase

Step angle

Rated voltage

Current /phase

Resistance /phase

Inductance /phase

Holding toraue

Detent torque

Rotor inertia

weight

Deg. /step

ohms

N.cm

g.cm2

UI57STH76-2804A

1.8

3.2

2.8

1.13

3.6

189

6.8

480

1.0

Model NO.

phase

Step angle

motor length

Current /phase

Resistance /phase

Inductance /phase

Holding toraue

Rotor inertia

weight

Deg. /step

ohms

N.cm

g.cm2

UI57STH115-3004A

1.8

115

0.8

3.2

2.5

800

1.6

57mm NEMA23 stepper motors with different Holding Torques for your applications. More choices available for your enquiry.

Motion Controller Description:

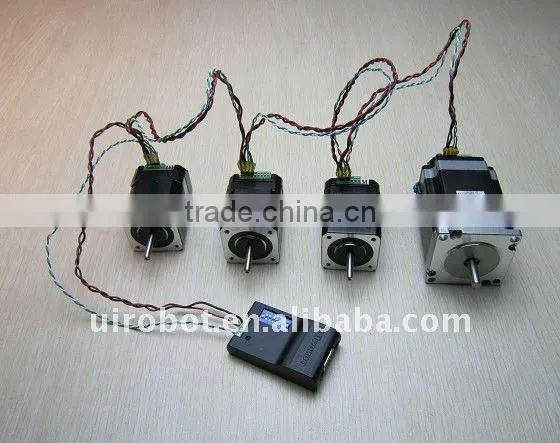

UIM242 stepper controller is a microprocessor embedded single axis motion controller with an integrated bipolar stepper motor drive working standalone or integrally on stepper motor for networking. Through one CAN/RS232 Converter you can control upto 100 of this integrated stepper motors with motion controllers by one PC synchronously or individually. An on-board bipolar ‘chopper’ stepper drive is provided capable of driving motors up to 4 per phase in both full, half, fourth and sixteenth micro stepping modes.

You could also use the Parallel port UIM240 stepper driver and Serial port UIM241 steppercontroller for an integrated stepper motor.

UIM243 controller can also be integrated with NEMA23 /57MM stepper motor.

This controller features self pulsing, speed adjustable, work when power on. no need for PLC, etc.

can work standalone.
